Elmo Motion Control: Gold Line Servo Drives (Gold Drum HV)

High Power Super Compact, Direct to Mains, Network-Based Servo Drive (Up to 65 kW)

The Gold Drum HV 100 A/800 V is the highest power Gold Servo Drive. Designed to operate “Direct to Mains” from a rectified 480 VAC (+10%).

The Gold DRUM HV meets the highest level of motion control application requirements, providing top servo performance, advanced networking, built-in safety and high power density, combined with a fully featured motion controller and local intelligence.

In conjunction with Elmo’s Gold Maestro, the ultimate distributed network motion controller, and the other members of Elmo’s Gold Line of intelligent servo drives, state-of-the-art solutions for the most challenging multi-axis motion applications can be easily implemented, with a short development cycle.

Read our application note on Thermal Management to discover how to achieve efficient, cost-saving heat dissipation while using the Gold Drum HV.

Gold Drum HV Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient ≈99%

High servo performance, wide current, velocity, position bandwidth

Real-time deterministic network communications: EtherCAT, CANopen

Host communication: USB, Ethernet

Supports a wide variety of feedback sensors in single, dual and gantry loop configurations

Advanced tuning, filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

Easy to set up and tune with Elmo Application Studio software tools

Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor

Complies to safety and EMC STD: IEC61800, UL508c, UL60950, EC61800-5-2

EtherCAT slave drives with rotary switches allow the user to define a unique node ID to a slave

The two rotary switches offer up to 255 addresses, with the 0 setting referring to No alias address

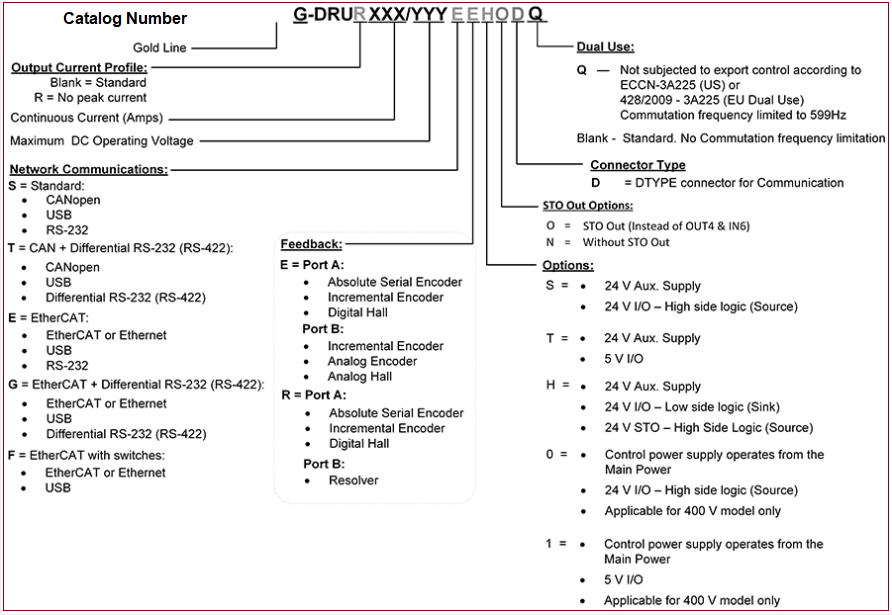

Catalog Number: G-DRU 50/400 SEHOD, G-DRU R 100/400 SEHOD, G-DRU 35/800 SEHOD, G-DRU 50/800 SEHOD, G-DRU R 70/800 SEHOD, G-DRU R 100/800 SEHOD
