Perfectly Integrated Combined Servo Drives and Motors
The Gold Duet 80 series of digital servo drives are highly resilient and designed to deliver the highest density of power and intelligence. The Gold Duet 80 delivers up to 750W of continuous power and 2250W peak power in a compact high-quality package.

The Gold Duet includes the digital drive which is part of Elmo’s advanced Gold Line. The digital servo drives are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Gold Duet 80 can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The Elmo Application Studio (EASII) software tools enable users to quickly and simply configure the servo drive for optimal use with their motor. The Gold drive inside the Gold Duet 80, as part of the Gold Line, is fully programmable.

Gold Duet Highlights:

The Gold Duet is Elmo’s family of top performing integrated servo motors, equipped with built-in Gold series Elmo drives.

The newest versions added to the family are made possible with high performance 80 frame servo motors. The Gold series of digital servo drives in the Duets is highly resilient and designed to deliver the highest density of power and intelligence. The new Gold Duet delivers high power in a compact high quality package.

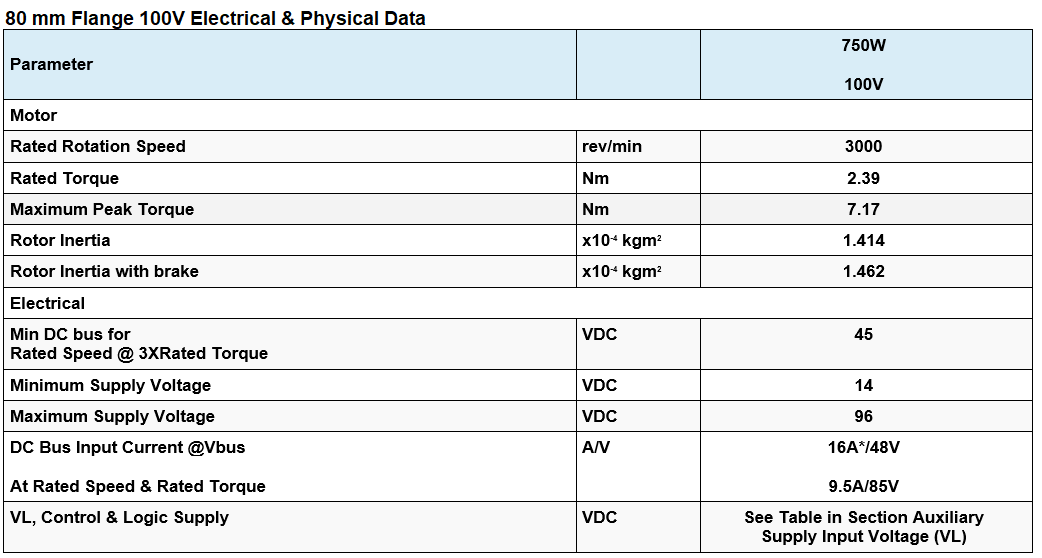

· Rated Torque: Up to 2.39NM (750W))

· Up to 7.17NM peak torque

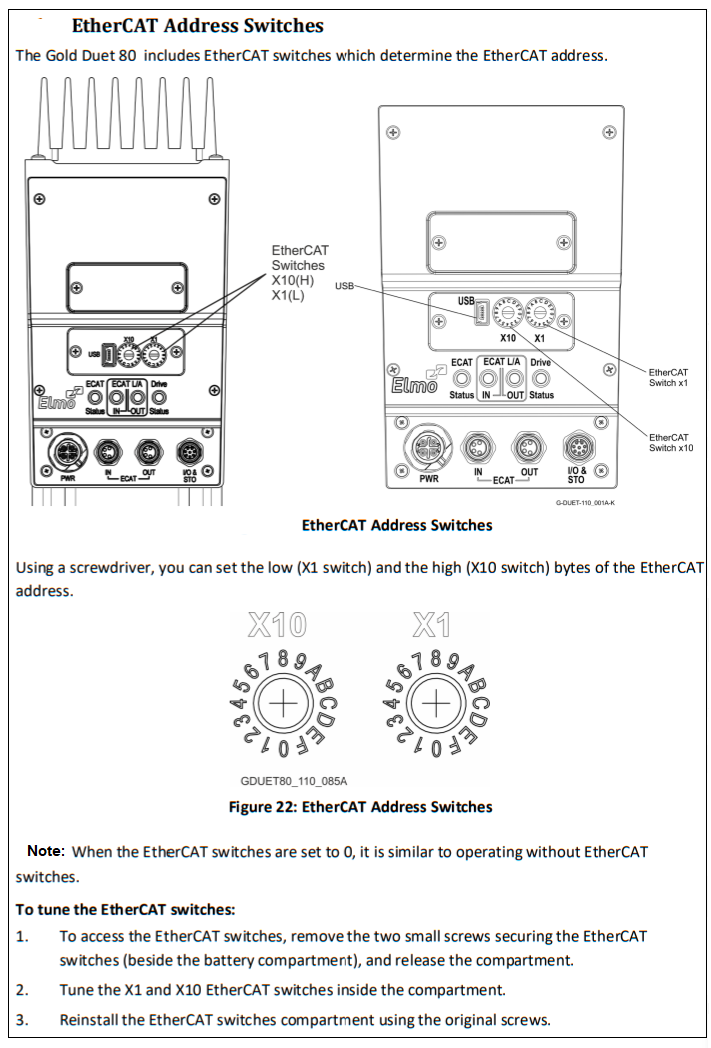

· Advanced EtherCAT networking

Catalog Number: GD-2.4/100ES2030, GD-2.4/100NS2030, GD-2.4/100TS2030

Downloads:

Gold Duet 80 Integrated Drive-Motor Installation Guide_V.1.009_September 2021

Gold Duet 80 Cable Kit _V.1.000_December 2016

Elmo Servo Motor brochure
