ExtrIQ Gold Line Servo Drives: Smart, small, simple.

Industry-leading smart servo functionality for highly demanding applications

Since 2012, Elmo Gold Servo Drives have provided industry-leading smart servo functionality for highly demanding applications, delivering top throughput and yield at an unmatched cost. The Gold line of servo drives is the direct result of over 200 person-years of engineering and natural evolution of the original Elmo SimplIQ technology. Supporting both CANopen and EtherCAT protocols and equipped with advanced technology, this exceptional line for its cutting edge performance.

ExtrIQ Durability:

The ExtrIQ Gold servo drives are designed, manufactured and tested to meet Extreme Environmental Conditions. The ExtrIQ durability is qualified,verified and tested according to the most severe Environmental, EMC and Safety Standards exceeding the traditional and senior Military STDs.

Gold Eagle 360:

Gold Eagle 360 servo drives operate from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil.

Gold Eagle 360 drives are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. They can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network. As part of the Gold Line of servo drives, the Gold Eagle 360 is fully programmable with Elmo’s motion control language.

Gold Eagle 360 Highlights:

Easily set up and tuned using Elmo Application Studio (EAS) software tools

Advanced and extremely fast vector control algorithm (current loop bandwidth: 4 kHz)

Highly efficient, high bandwidth performance

Multiple communication options: EtherCAT, CANopen, USB, Ethernet

Supports a wide variety of feedback: Incremental, Encoder, Resolver, Digital Halls, Analog Halls, Analog 1V ptp (Sin/Cos), Absolute Serial Encoders, Tachometer, Potentiometer

Advanced filtering and gain scheduling options for enhanced dynamic performance

Supports PLC Source, PLC Sink and TTL I/O types

Complies to safety and EMC STDs: IEC61800, UL508c, UL60950, EC61800-5-1

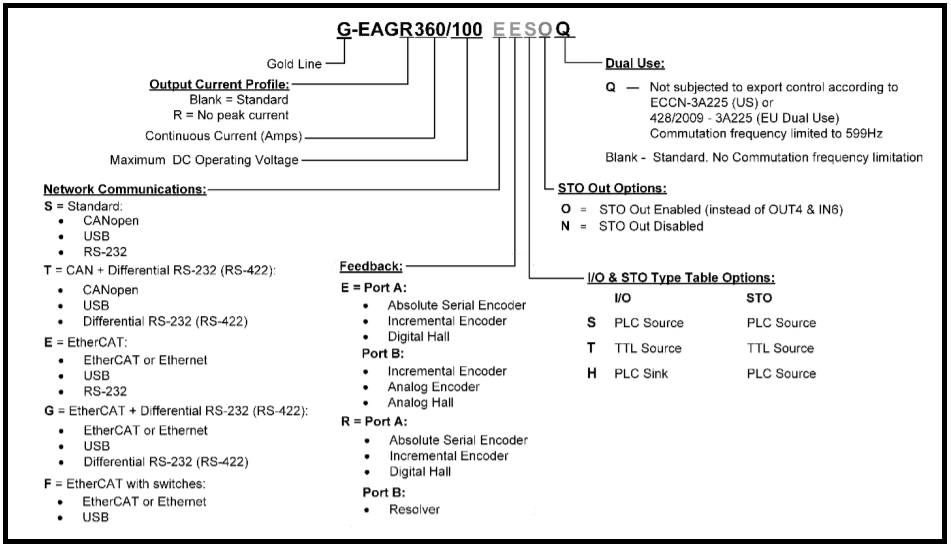

Catalog Number: G-EAG R 360/100 EESO, G-EAG R 430/80 EESO
