Elmo Motion Control: Gold Line Servo Drives (Gold Guitar)
Super Compact, Network-based Servo Drive,Up to 50 A/100 V and 20 A/200 V,A uniquely flexible drive with unmatched power density.

The Gold Guitar provides top servo performance, advanced networking and built-in safety, all in a small PCB-mountable package. The Gold Guitar features the industry’s most comprehensive motion controller and local intelligence.

Weighing only 212 g (7.47 oz.), the Gold Guitar operates on DC power as a standalone device, or as part of a multi-axis system in a distributed configuration on a real-time network.

Like all Gold Line products, it is easily configured and tuned using the Elmo Application Studio (EAS) software environment and is fully programmable with the Elmo motion control language.

The Gold Guitar is available in a variety of models with multiple power rating options, multiple communication options, feedback options and I/O configuration possibilities.

Gold Guitar Highlights:

Gold Line core motion control technology

Ultra-compact, with the highest power density in its class

Drives any servo motors, up to 5000 W continuous and 10,000 W peak power

Field Bus Communication: EtherCAT, CANopen

USB, Ethernet, RS-232

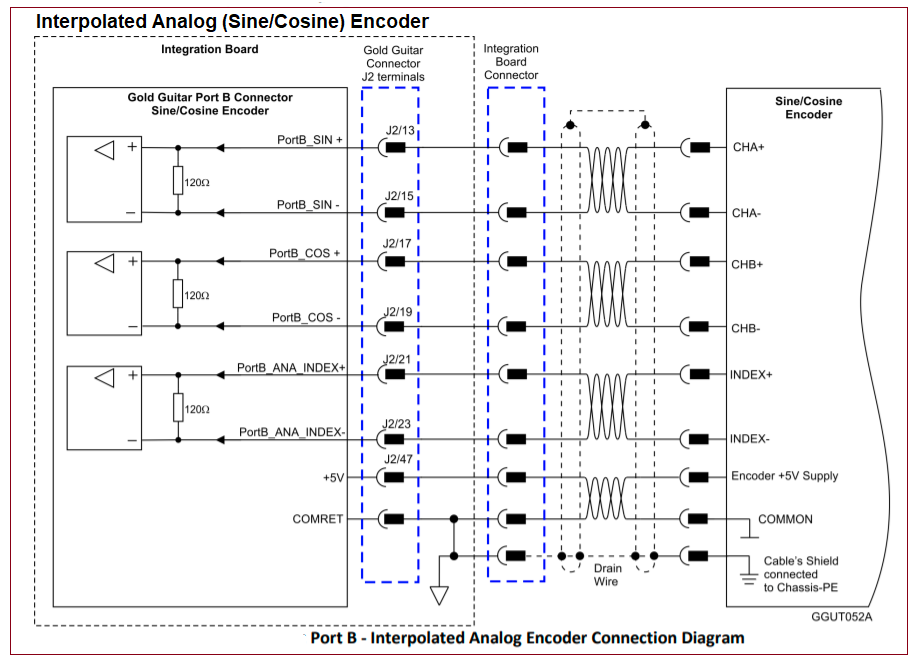

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Extremely efficient, over 99%

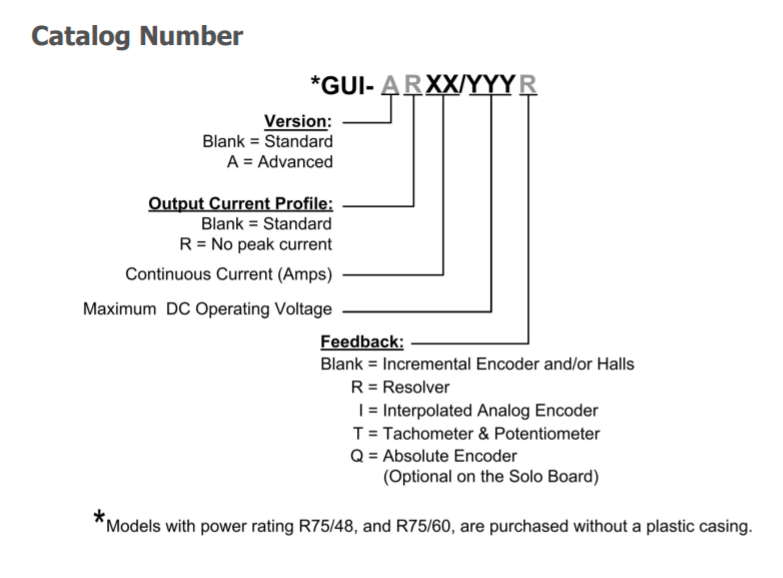

Catalog Number: G-GUT20/100EE, G-GUT35/100EE, G-GUT50/100EE, G-GUT10/200EE, G-GUT17/200EE, G-GUT20/200EE
