Elmo Motion Control: Gold Line Servo Drives (Gold Mandolin)

The Gold Mandolin, is a PCB-mounted durable servo drive enabling efficient and cost-effective implementation, which is designed to deliver up to 2300 W of continuous power or 4600 W of peak power, and intelligence, in a compact package.

The Gold Mandolin operates from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. It is designed for use with any type of sinusoidal and trapezoidal commutation, with vector control.

Power to the Gold Mandolin is provided by a 100 to 400V Direct to Main DC source. The Gold Mandolin can operate with the main power supply only (VP+ and VN-), with no need for a Control backup supply. If backup functionality is required for storing control parameters, a control power supply with a range of 18 to 40 V can be connected, providing maximum flexibility and optional backup functionality when needed.

The Gold Mandolin can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network. The drive is easily set up and tuned using the Elmo Application Studio (EASII) software tools, and is fully programmable with the Elmo motion control language.
Gold Mandolin Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient, high bandwidth performance

Multiple communication options: EtherCAT, CANopen, USB, Ethernet, RS-232

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

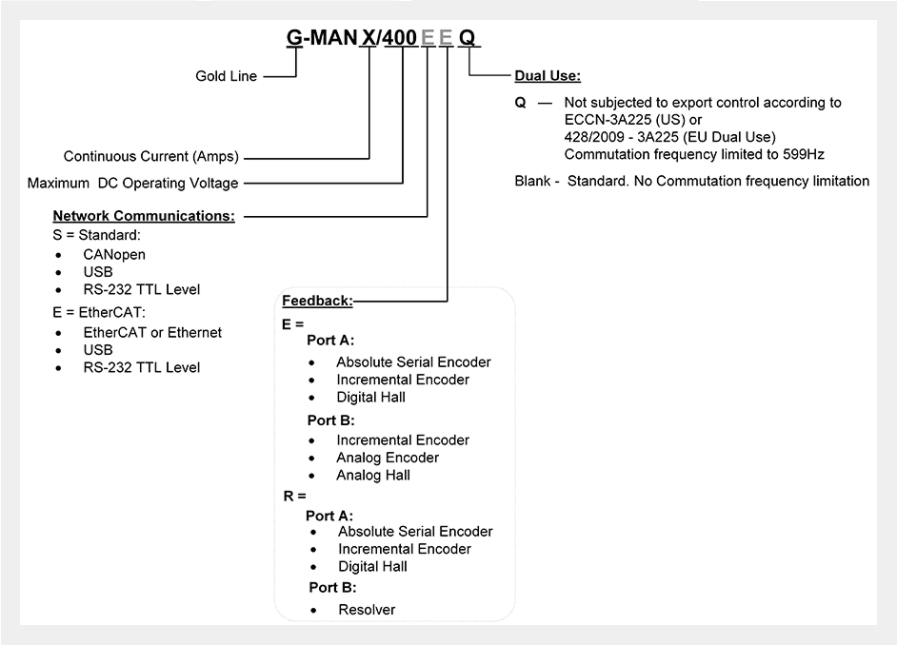

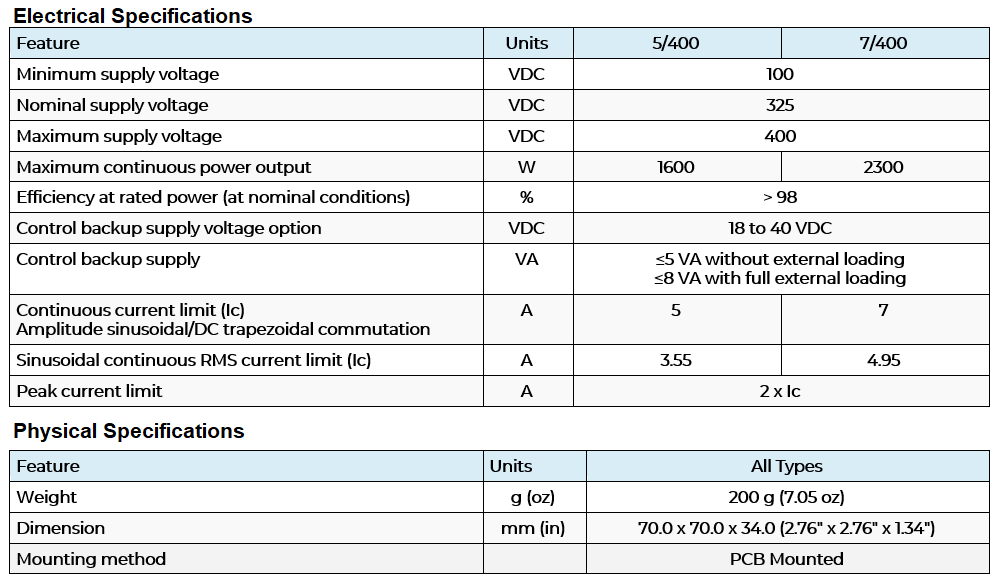

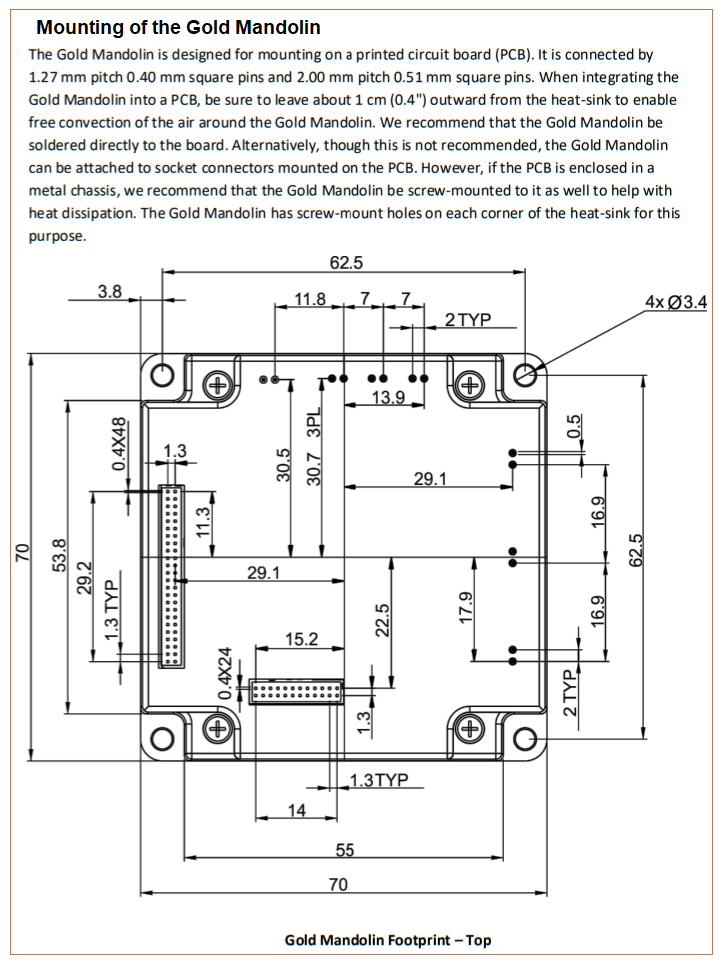

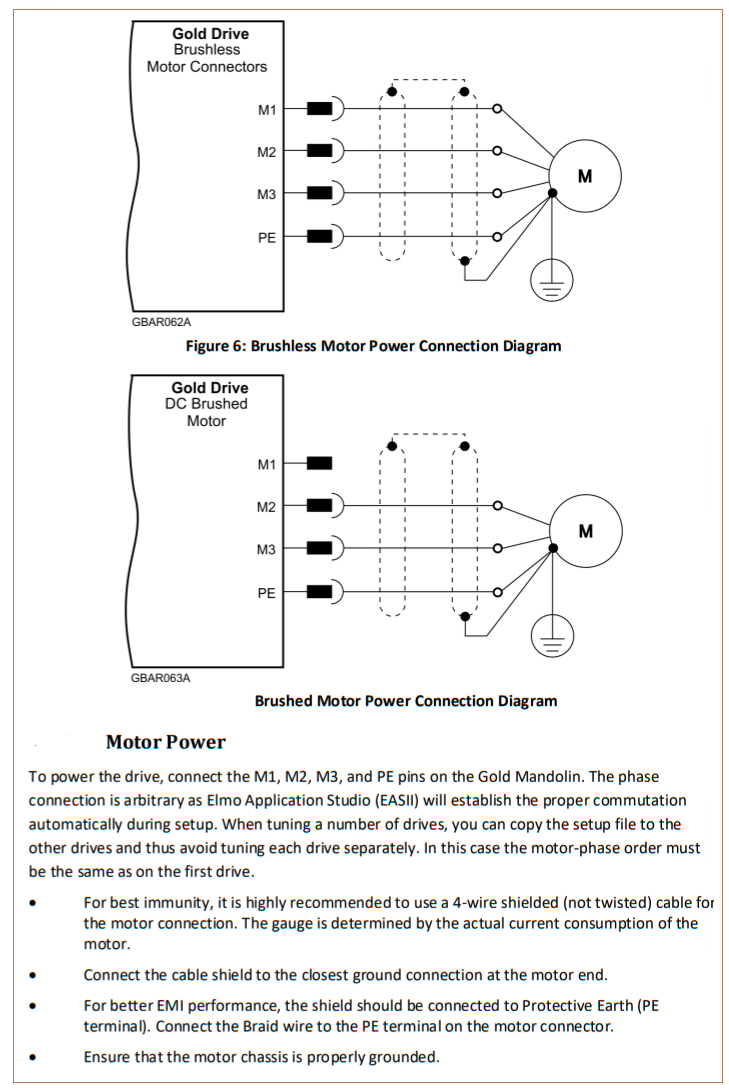

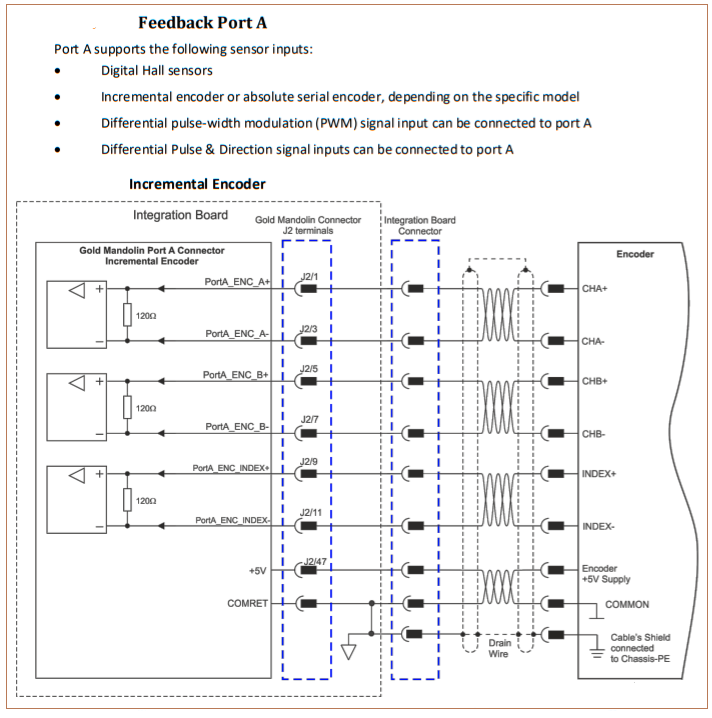

Catalog Number: G-MAN5/400SE, G-MAN7/400SE

Downloads:

1	Installation Guide
2	3D STEP Format
3	2D DXF Format
