Elmo Motion Control: Gold Line Servo Drives (Gold Oboe)

The Smallest Servo Drive to Run 480VAC,10A/480VAC, 16A/230VAC

The Gold Oboe is a series of intelligent super compact, super-efficient servo drives that operates directly from the mains via 3-Phase or Single Phase.

With peaking capability of over 10,000W, ultra-fast response, wide bandwidth, better than 1:2000 current loop dynamic range and build in powerful regeneration the G-OBOE is a perfect servo drive for applications requiring very high dynamics, extremely precise, smooth and very low speed processing combined with rapid movements.

Integrated Smart Fan operation (in 10A/230, 13/230, 6/480, 10/480 models) is activated only “when required” and thus significantly prolongs the fan’s life-time.

An auxiliary 24 VDC power supply is required to power the control and the 24VDC fan

The drives are easily set up and tuned using EASII tools software tools. This Windows-based application studio enables users to quickly and simply implement the servo drive for optimal use with the motor and the mechanical load.

Gold Oboe servo drive highlights:

“Direct-to-mains” networking servo drive

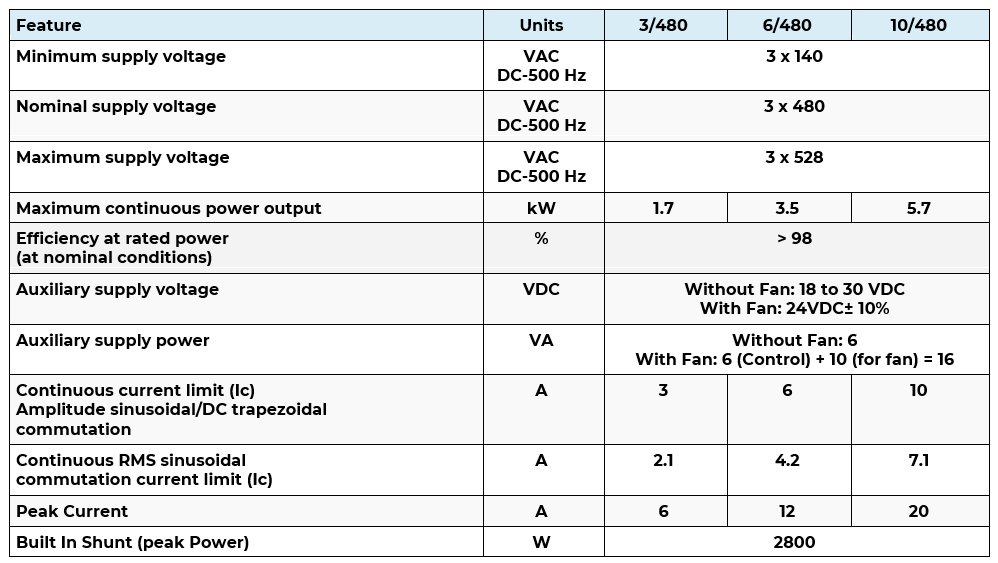

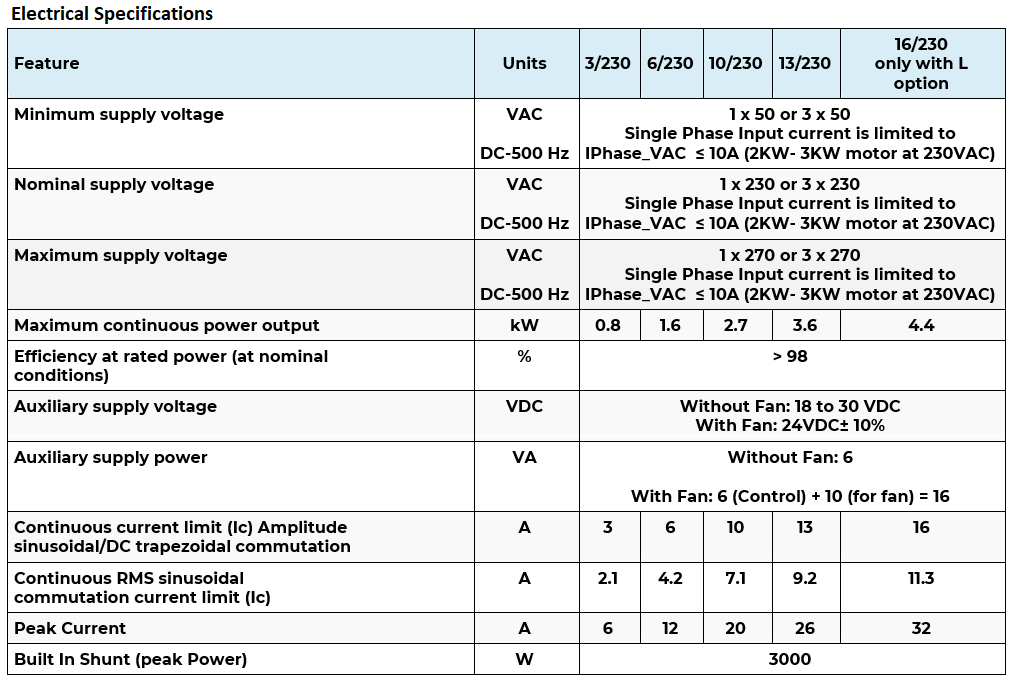

AC input voltage of up to 3x270VAC and 3X530VAC

Gold Line core motion control technology

High Regeneration braking capability

Highly efficient ≈98%

High servo performance, wide current, velocity, position bandwidth

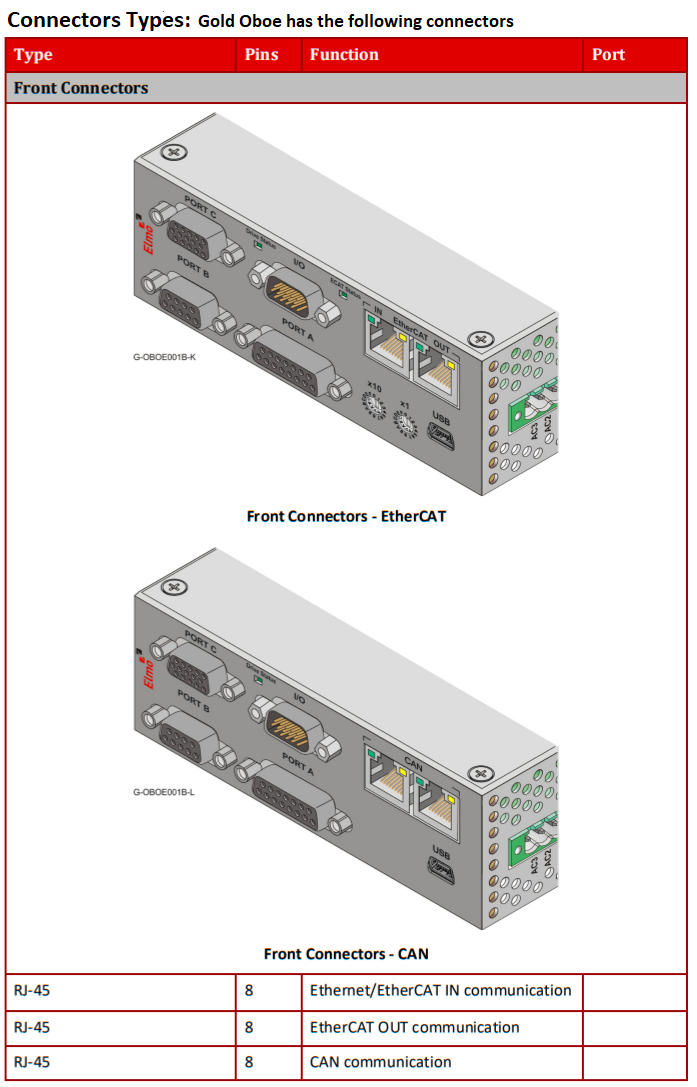

Real-time deterministic network communications: EtherCAT, CANopen

Host communication: USB, Ethernet

Supports a wide variety of feedback sensors in single, dual and gantry loop configurations

Advanced tuning, filtering and gain scheduling options for enhanced dynamic performance

Fast and smooth Vector control sinusoidal commutation

Easy to set up and tune with Elmo Application Studio software tools

STO, Safe Torque Off

Complies to safety, Environmental and EMC STD: IEC61800, UL508c, UL60950, EC61800-5-2

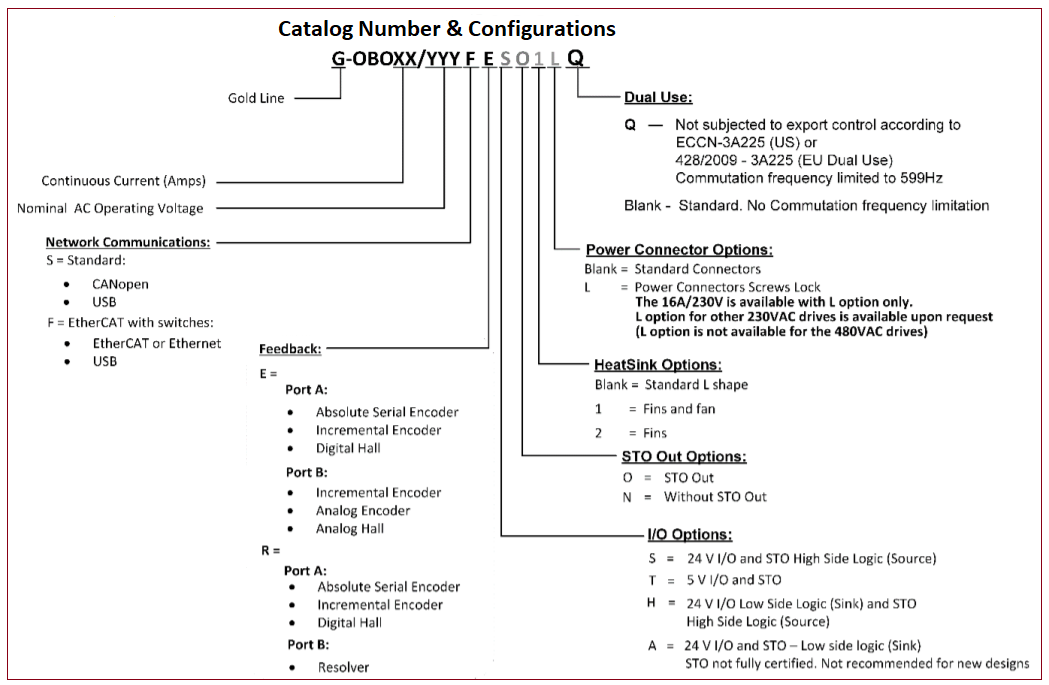

Gold Oboe: G-OBO 3/230 FESO1L, G-OBO 6/230 FESO1L, G-OBO 10/230 FESO1L, G-OBO 13/230 SEFO1L, 16/230 (only with L option), G-OBO 3/480 SEFO1L, G-OBO 6/480 FESO1L, 10/480

Downloads:

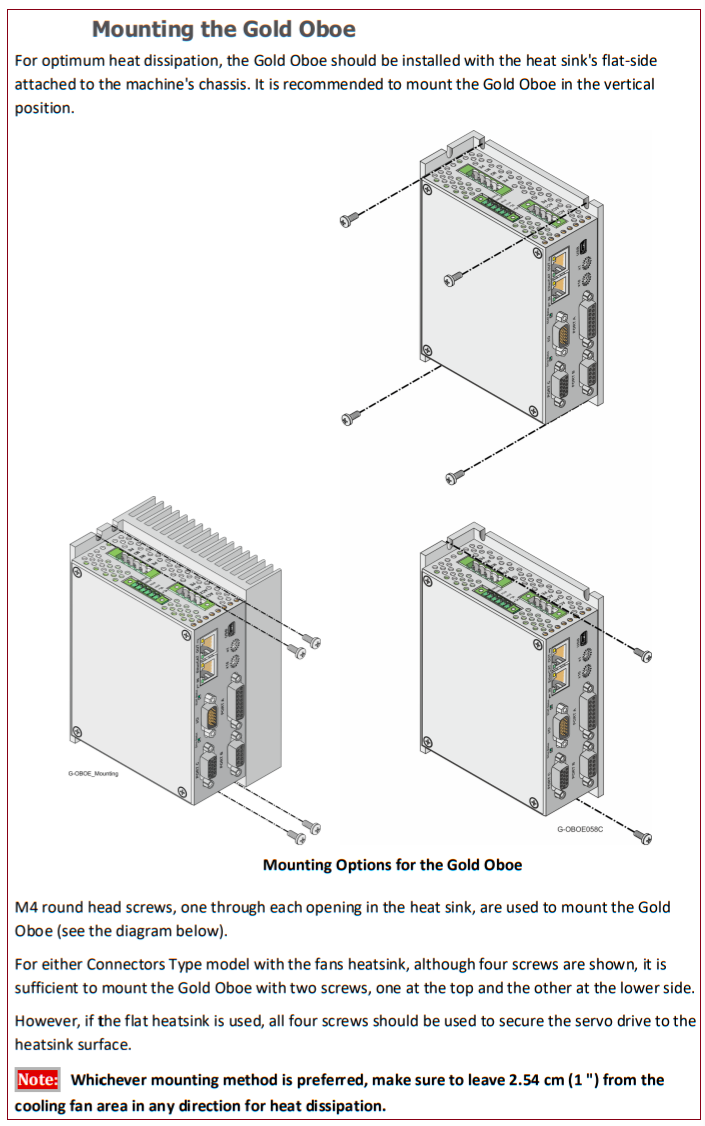

1	Installation Guide
2	3D STEP Format (FINS)
3	3D STEP Format (L-SHAP)
