Elmo Motion Control: EXTRIQ GOLD, HARSH ENVIRONMENT SERVO SOLUTIONS (Gold SOLO Hawk)

Ultra Small “Ready To Use” Servo Drive (Up to 50 A/100 V and up to 20 A/200 V)

Designed, Verified & tested for Extreme Environments -40ºC to +70ºC, up to 14GRMS (vibration)

Gold SOLO Hawk is an advanced, high power density servo drive. It provides top servo performance, advanced networking and built-in safety, all in a very small very efficient package. The Gold SOLO Hawk is designed to operate under extreme environmental conditions.

Weighing only 212 g (7.47 oz.), the Gold Hawk operates on DC power as a standalone device, or as part of a multi-axis system in a distributed configuration on a real-time network.

Like all Gold Line products, it is easily configured and tuned using the Elmo Application Studio (EAS) software environment and is fully programmable with the Elmo motion control language.

The Gold SOLO Hawk is available in a variety of models with multiple power rating options, multiple communication options, feedback options and I/O configuration possibilities.

Mating Power Supply ELP-30.

Gold Solo Hawk Highlights:

· Gold Line core motion control technology

· Super -compact, with the highest power density in its class

· Drives any servo motors, up to 5000 W continuous and 10,000 W peak power

· Field Bus Communication: EtherCAT, CANopen

· RS232, RS422, USB, Ethernet,

· Supports a wide variety of feedback sensors

· Advanced filtering and gain scheduling options for enhanced dynamic performance

· Extremely efficient, over 99%

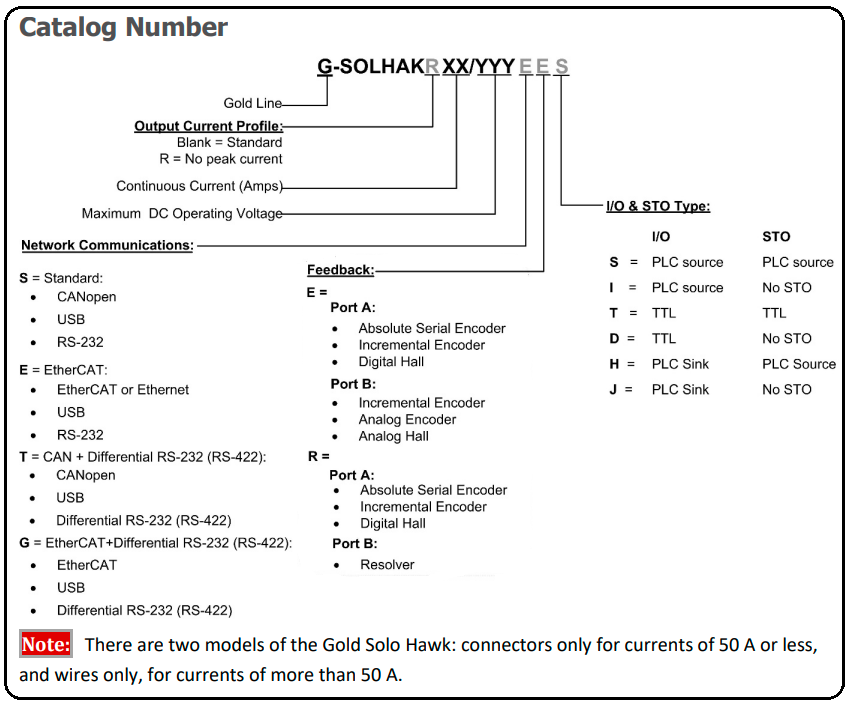

Catalog Number: G-SOLHAK 20/100 EES, G-SOLHAK 35/100 EES, G-SOLHAK 50/100 EES, G-SOLHAK 10/200 EES, G-SOLHAK 17/200 EES, G-SOLHAK 20/200 EES
