Elmo Motion Control: Gold Line Servo Drives (Gold Solo Bell)

A High Power-Density, Compact, Network-based Stepper Motor Servo Drive,Delivers up to 20A/100V and up to 9A/200V

The Gold Solo Bell is an advanced high power density servo drive, delivering up to 1.6 kW of continuous power or 3.2 kW of peak power in a compact 139.60 cc (8.52 in³) package (73.2 x 58.5 x 32.6 mm (2.88″ x 2.30″ x 1.28″)), and designed to simply and efficiently connect Elmo’s Gold Bell servo drive directly to the application. The solution consists of the Gold Bell together with a convenient connection interface which either eliminates or reduces development time and resources when designing an application’s PCB board.

This advanced, high power density stepper motor driver provides top performance, advanced networking and built in safety, as well as a fully featured motion controller and local intelligence. The Gold Solo Bell is powered by a single 12 V – 95 V isolated DC power source (not included) and a “smart” control-supply algorithm enables the drive to operate with only one power supply with no need for an auxiliary power supply for the logic.

In conjunction with the Gold Maestro, the ultimate distributed network motion controller, and the other members of the Gold Line of intelligent servo drives, state-of-the-art solutions for the most challenging multi-axis motion applications can be easily implemented, with a short development cycle while maintaining high performance.

Gold Solo Bell servo drive highlights:

Gold Line core motion control technology

Compact, highest power density

Convenient connection interface

Multiple communication options: Standard, EtherCAT

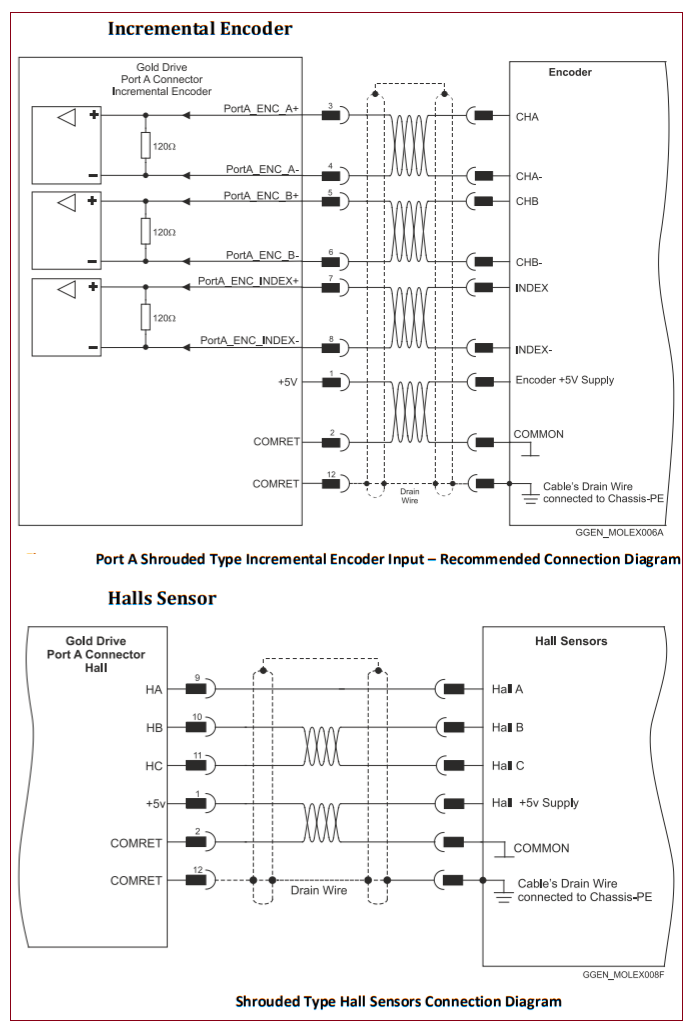

Supports a wide variety of feedback sensors

Multiple power rating options

Reduces development time and resources

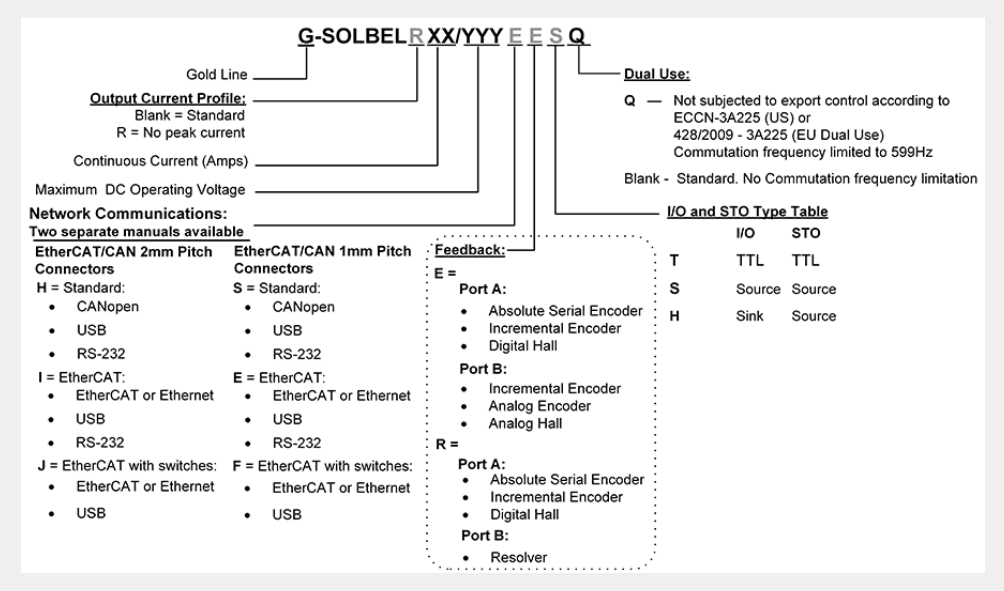

Catalog Number: G-SOLBEL1/100SES, G-SOLBEL2.5/100SES, G-SOLBEL10/100SES, G-SOLBEL15/100SES, G-SOLBEL20/100SES, G-SOLBEL3/200SES, G-SOLBEL6/200SES, G-SOLBEL9/200SES
