Elmo Motion Control: Gold Line Servo Drives (Gold Solo Double Twitter)

180A/60V, 160A/80VDC, 140A/100V, 70A/200V, Most Advanced and Powerful Miniature Servo Drive (single axis drive with double power).The Ultra High Current Gold Solo Double Twitter servo drives deliver over 11,000 of Qualitative Watts with efficiency of 99% .

in a 97cm3(5.92 Inch3) compact package 47 x 69.5 x 29.7 mm (1.85″ x 2.74″ x 1.17″).

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence. Power to the Gold Solo Double Twitter is provided by a DC power source which is isolated from the Mains. The Gold Solo Double Twitter can operate with single or dual power supplies. If separation between the main DC power source and a control supply is required, then a control supply (isolated from the Mains) is required according to the Part Number.

The Gold Solo Double Twitter can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network. The drive is easily set up and tuned using the Elmo Application Studio (EASII) software tools, and is fully programmable with the Elmo motion control languages.

The Gold Solo Double Twitter is available in a variety of models. There are multiple power rating options, different communications options, a number of feedback options and different I/O configuration possibilities.

Gold Solo Double Twitter Highlights:

High power density, over 11,000 of “Qualitative” Watts

Ultra high current – up to 180A/60V, 160A/80V, 140A/100V. 70A/200V

Record-setting weight of only 33 grams (less than 1 ounce)

Ultra Small, Ultra Efficient, designed to be mounted on a PCB

Advanced networking by EtherCAT Or CANOpen

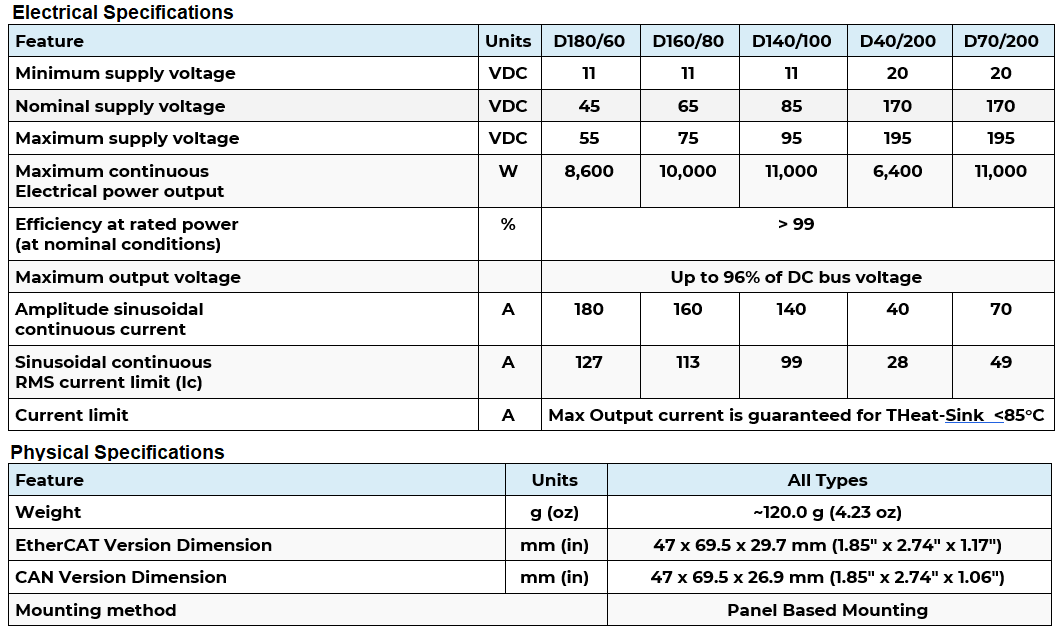

Wide Operating voltage ranges:

“60VDC”, 11VDC-55VDC

“80VDC”,11VDC- 75VDC

“100VDC”, 11VDC- 95VDC

“200VDC”, 20VDC- 195VDC

Supports any feedback sensor in single, dual and gantry loop configurations

Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI

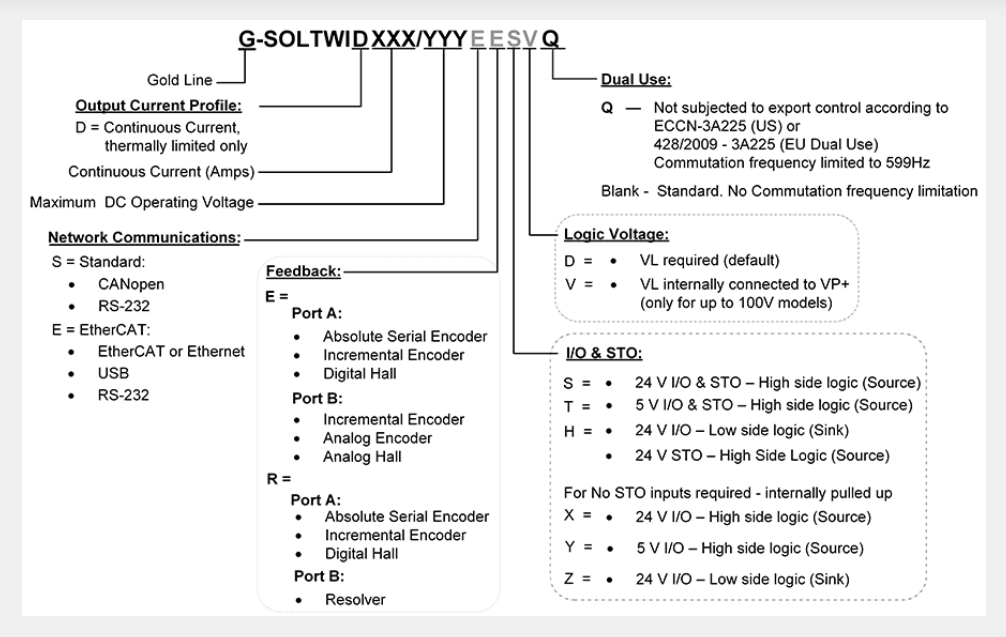

Catalog Number: G-SOLTWID180/60SESD, G-SOLTWID160/80SESD, G-SOLTWID140/100SESD, G-SOLTWID40/200SESD, G-SOLTWID70/200SESD
