Elmo Motion Control: Gold Line Servo Drives (Gold Solo Trombone)

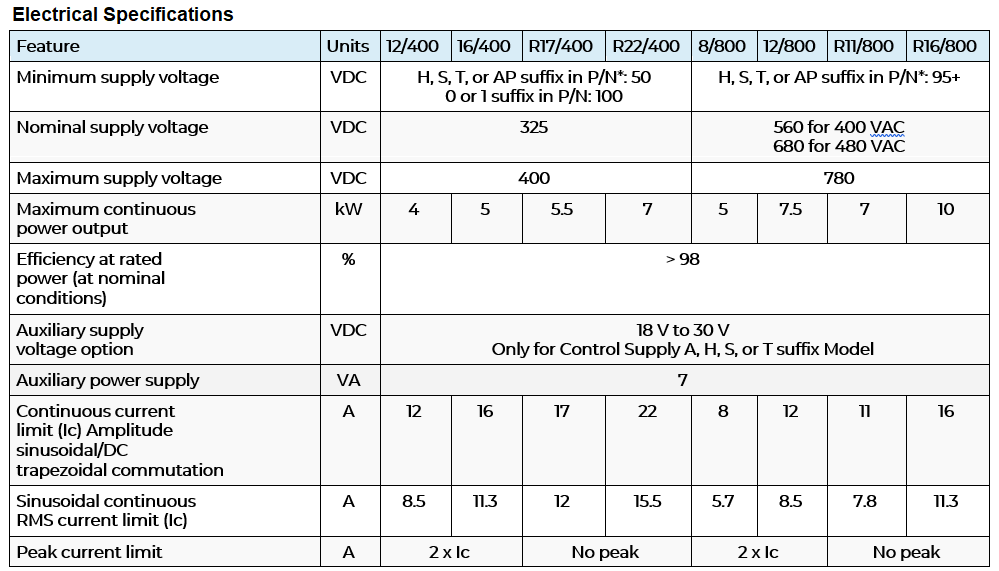

Ultra-compact, Stand-alone, Network Servo Drive, Up to 16 A/800 V,Up to 10 kW of continuous power

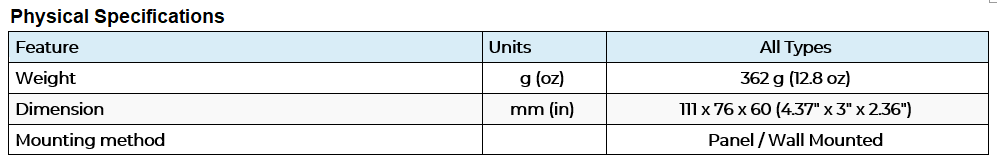

The Gold Solo Trombone is an ultra-compact, integrated digital servo drive that weighs 362 g (12.8 oz) and offers up to 10 kW of continuous power..

This advanced, high power density servo drive is designed to operate “Direct to Mains” from a high voltage DC power supply of up to 400 VDC or 780 VDC, without the need for a transformer. It provides top performance, advanced networking and built in safety, as well as a fully featured motion controller and local intelligence. The Gold Solo Trombone is powered by a single 18 V – 30 V isolated DC power source (not included) and a “smart” control-supply algorithm enables the drive to operate with only one power supply with no need for an auxiliary power supply for the logic.

In conjunction with the Gold Maestro, the ultimate distributed network motion controller, and the other members of the Gold Line of intelligent servo drives, state-of-the-art solutions for the most challenging multi-axis motion applications can be easily implemented, with a short development cycle while maintaining high performance.

Gold Solo Trombone Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient, high bandwidth performance

Multiple communication options: EtherCAT, CANopen, USB, Ethernet

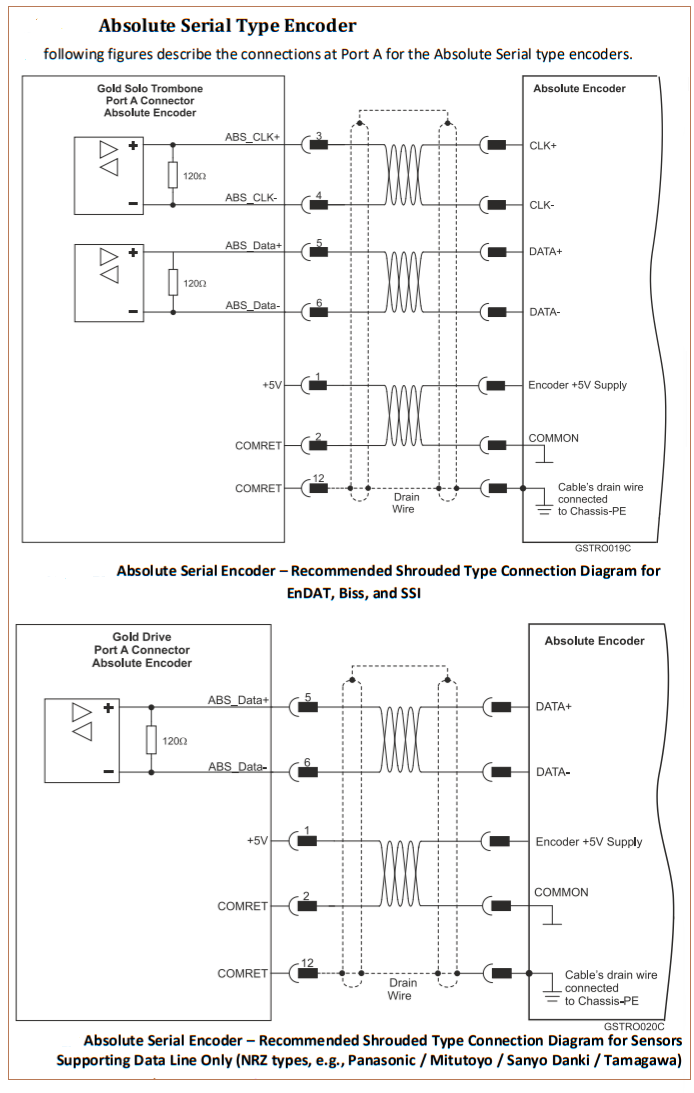

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

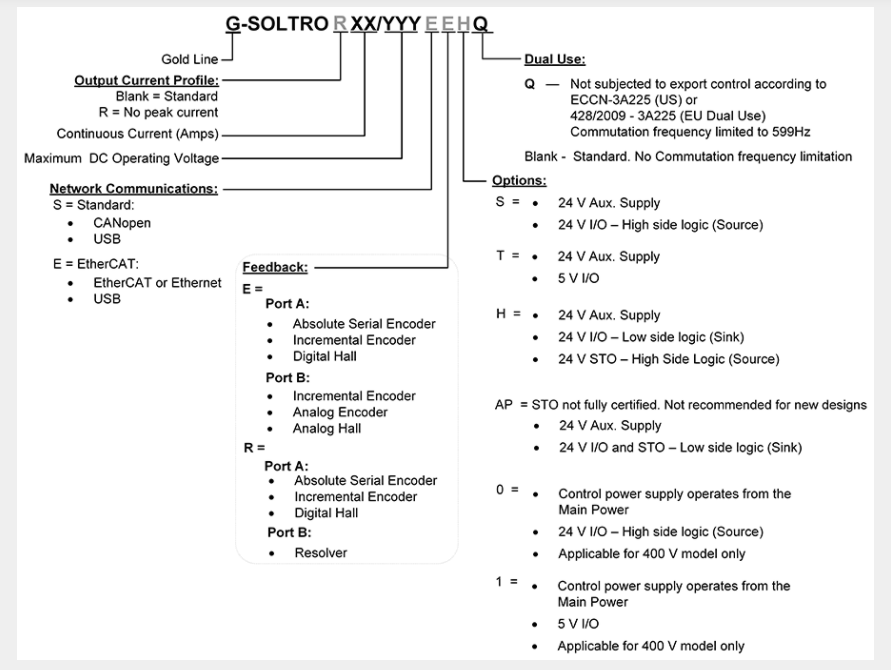

Catalog Number: G-SOLTRO12/400SEH, G-SOLTRO16/400SEH, G-SOLTROR 17/400SEH, G-SOLTROR 22/400SEH, 12/800G-SOLTROSEH, G-SOLTROR 11/800SEH, G-SOLTROR 16/800SEH

Downloads:

1	Installation Guide
2	3D IGES Format
