Elmo Motion Control: Gold Line Servo Drives (Gold Tuba)

Up to 25 kW of continuous power in a compact package

The Gold Tuba series of AC servo drives are highly resilient and designed to deliver the highest density of power and intelligence. The Gold Tuba delivers up to 25 kW of continuous power in a compact package.

The Gold Tuba series are part of Elmo’s advanced Gold Line. They operate from an AC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. They are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Gold Tuba can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The drives are easily set up and tuned using Elmo Application Studio software tools. This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor.

Gold Tuba Highlights:

“Direct-to-mains” networking servo drive

Rectifies AC input voltage of up to 3x528VAC

Delivers up to 25kW of qualitative power

Gold Line core motion control technology

High Regeneration braking capability

Ultra-compact, highest power density

Highly efficient ≈99%

High servo performance, wide current, velocity, position bandwidth

Real-time deterministic network communications: EtherCAT, CANopen

Host communication: USB, Ethernet

Supports a wide variety of feedback sensors in single, dual and gantry loop configurations

Advanced tuning, filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

Easy to set up and tune with Elmo Application Studio software tools

Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor

Complies to safety and EMC STD: IEC61800, UL508c, UL60950, EC61800-5-2

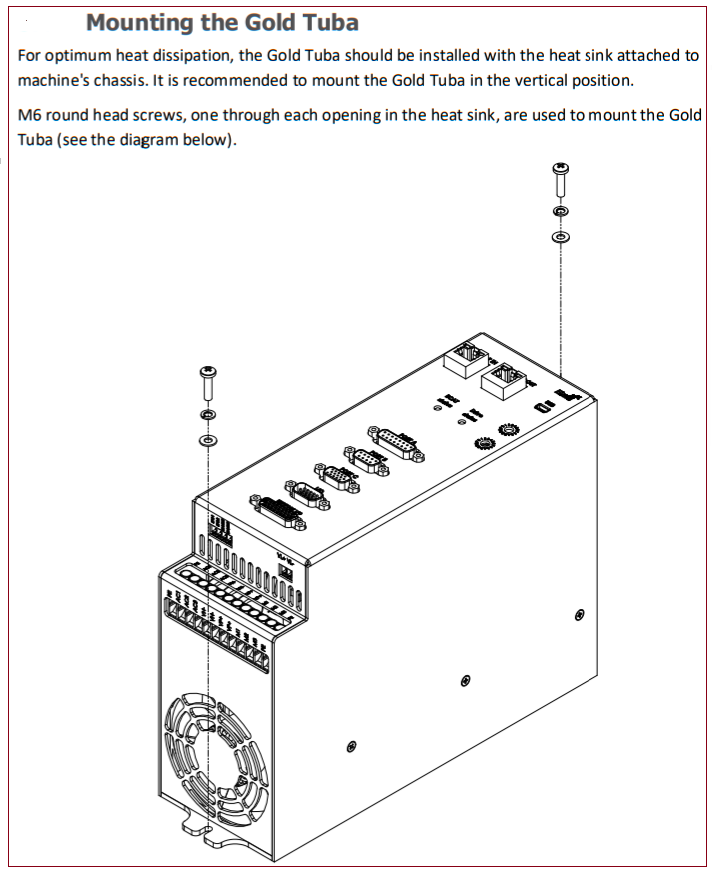

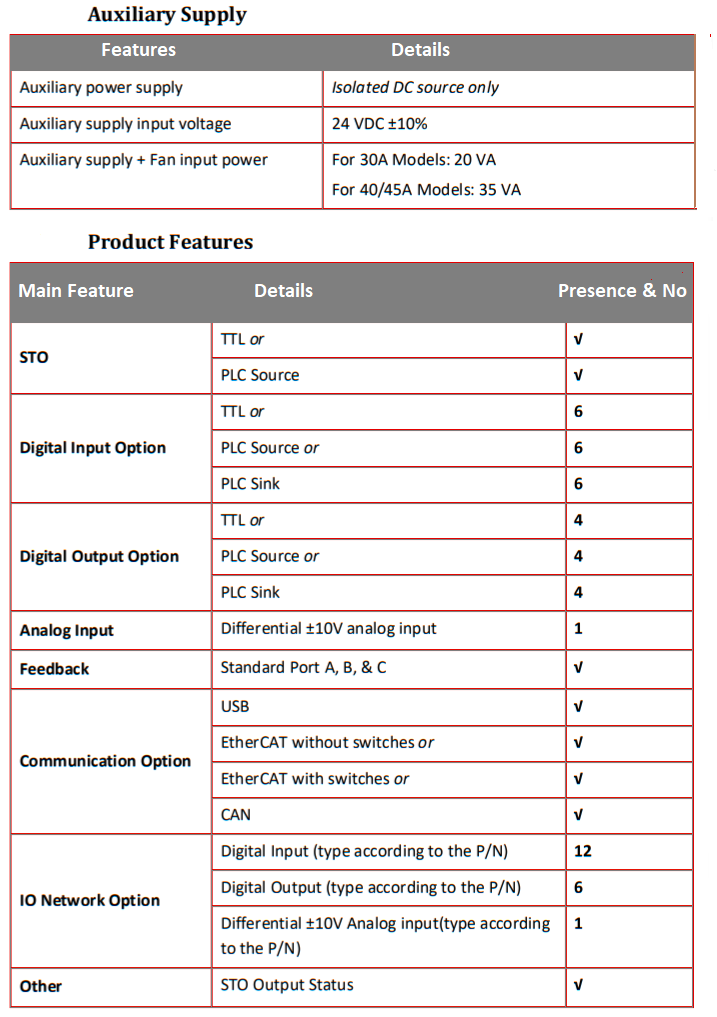

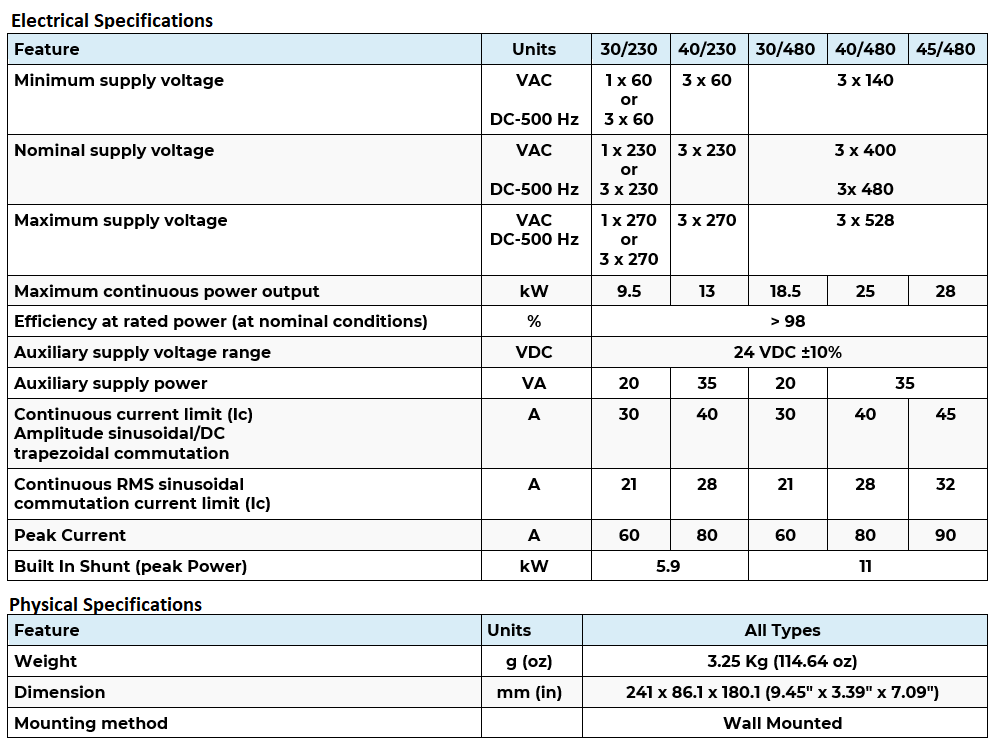

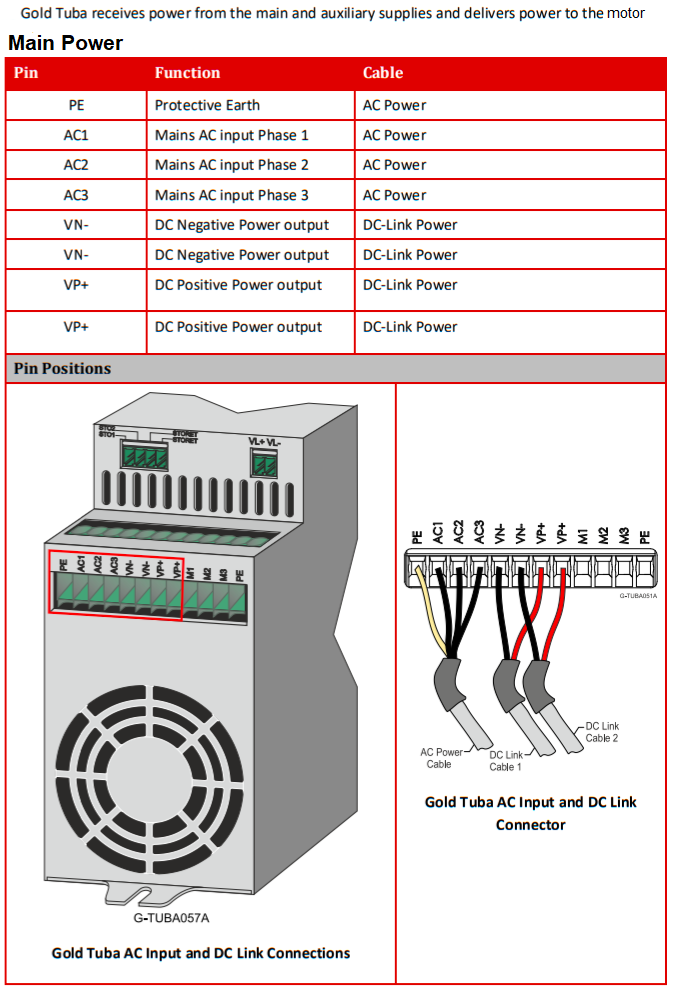

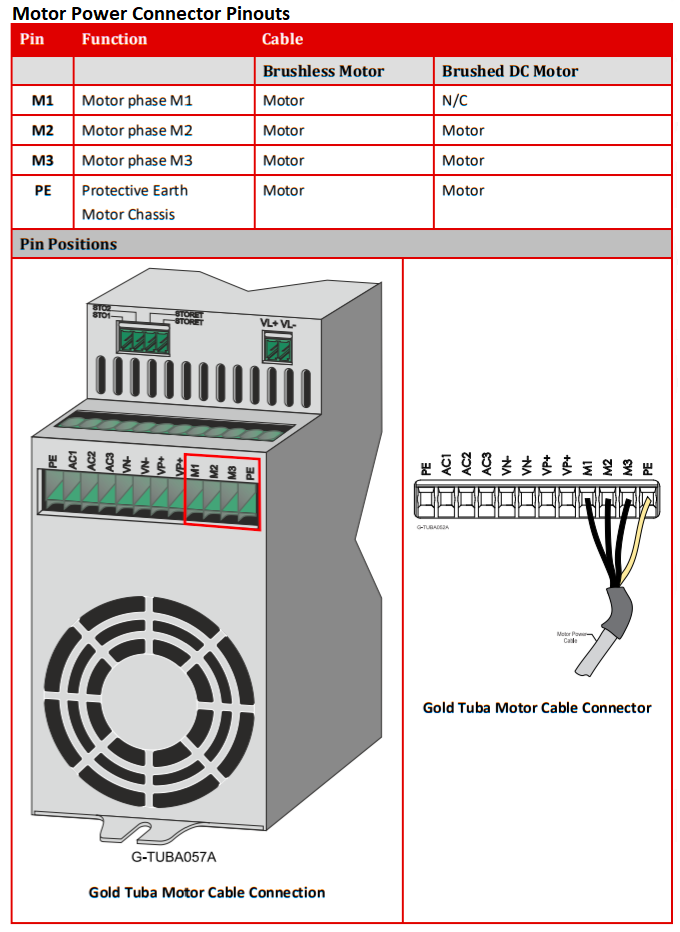

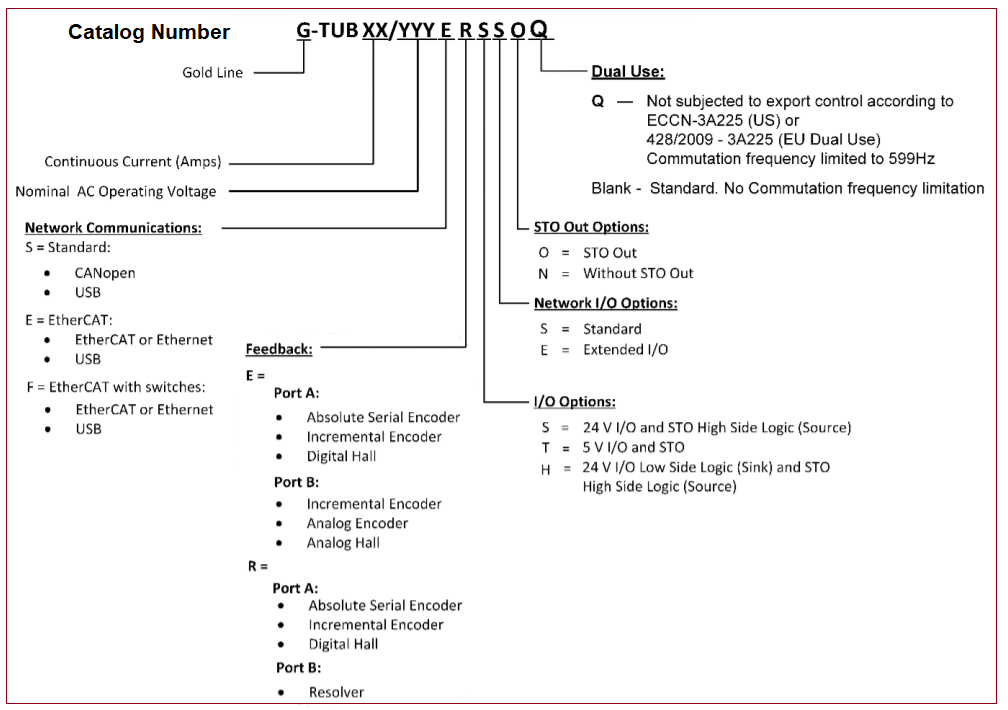

Catalog Number: G-TUB 30/230 ERSSO, G-TUB 40/230 ERSSO, 30/480, G-TUB 40/480 ERSSO, G-TUB 45/480 ERSSO

Downloads:

1	Installation Guide
2	3D STEP Format
3	2D DXF Format
