ELMO MOTION CONTROL: EXTRIQ PLATINUM, HARSH ENVIRONMENT SERVO SOLUTIONS (Platinum Bee Quartet)

New Era In Servo Control, Certified Functional Safety,Composer2, Software in the Loop Powerful Drive’s Capability

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

Ultra Compact, A Complete 4 Axis, Motion Control System, 4 X 5000W,Up to P50A/100V, 35A/200V

The Platinum Bee Quartet is an integrated solution delivering up to 2000 W of continuous power in a compact package (95.0 x 65.0 x 22.0 mm or 3.74″ x 2.56″ x 0.87″).

This advanced multi-axis controller provides top performance, , advanced networking as well as a fully featured motion controller and local intelligence.

The ExtrIQ Platinum series was designed to meet the evolving needs of the extreme environmental motion control solutions. The Platinum Bee Quad exhibits smarter, smaller, faster servo, with higher functionality and ease-of-use. The ExtrIQ Platinum drives aim to assist any Harsh Environment Servo and Motion application.

Platinum Series Highlights

Best-In-Class Motion & servo performance

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

Composer2, Proprietary Drive Level SIL (Software in the Loop), allows running customer’s control algorithms within the drive’s real-time

High processing power with large memory resources for better control, enhanced processing, and real time recording

Platinum Bee Quartet Highlights

Ready for the Extreme, -Ultra-small, most powerful 4 axes motion and servo controller4X 5000W Servo Drive Intelligent Module

High Precision Servo Control

Advanced Safety Functionality (STO)

Rich I/O Support

Innovative Platinum line core

Ultra-Fast EtherCAT Networking

STO IEC 61800-5-2 (SIL-3, Cat4 PL-e)

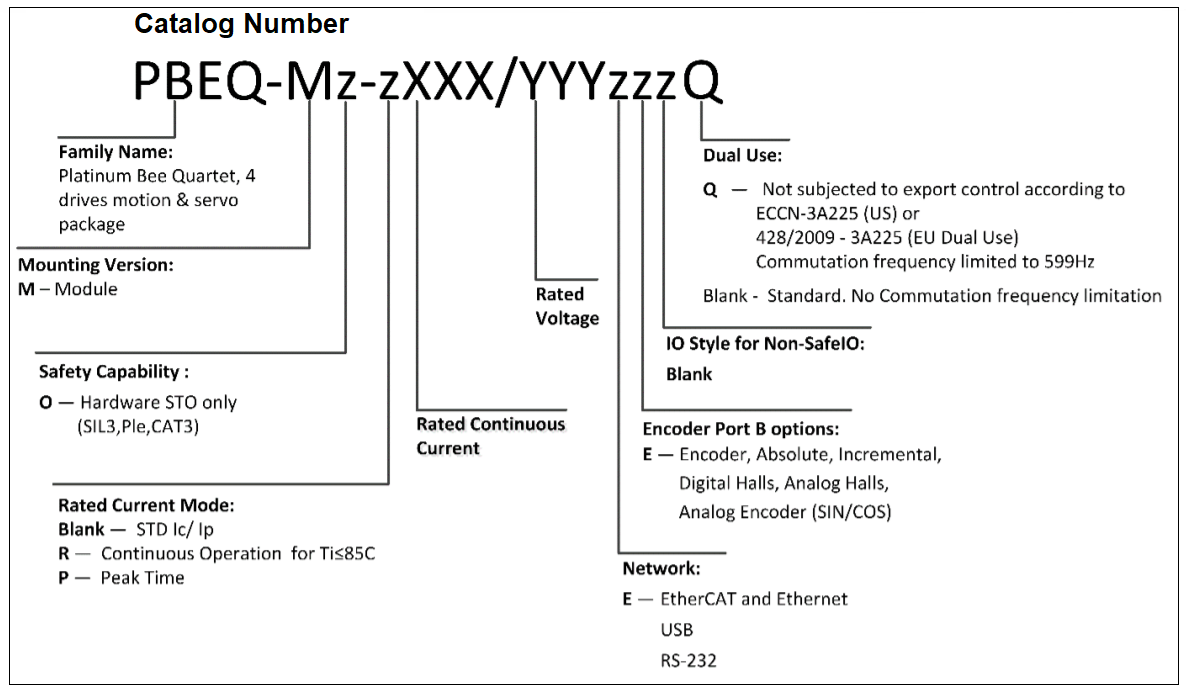

Catalog Number: PBEQ-MO-1/100 EE, PBEQ-MO-3/100 EE, PBEQ-MO-6/100 EE, PBEQ-MO-10/100 EE, PBEQ-MO-15/100 EE, PBEQ-MO-25/100 EE, PBEQ-MO-6/200 EE, PBEQ-MO-P50/100 EE, PBEQ-MO-10/200 EE, PBEQ-MO-3/200 EE, PBEQ-MO-R15/200 EE, PBEQ-MO-R35/200 EE
