ELMO MOTION CONTROL: EXTRIQ PLATINUM, HARSH ENVIRONMENT SERVO SOLUTIONS (Platinum Bee)

New Era of Servo Control Ultra Small Servo Drive

Certified Functional Safety Composer2, Software in the Loop Powerful Drive’s Capability

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

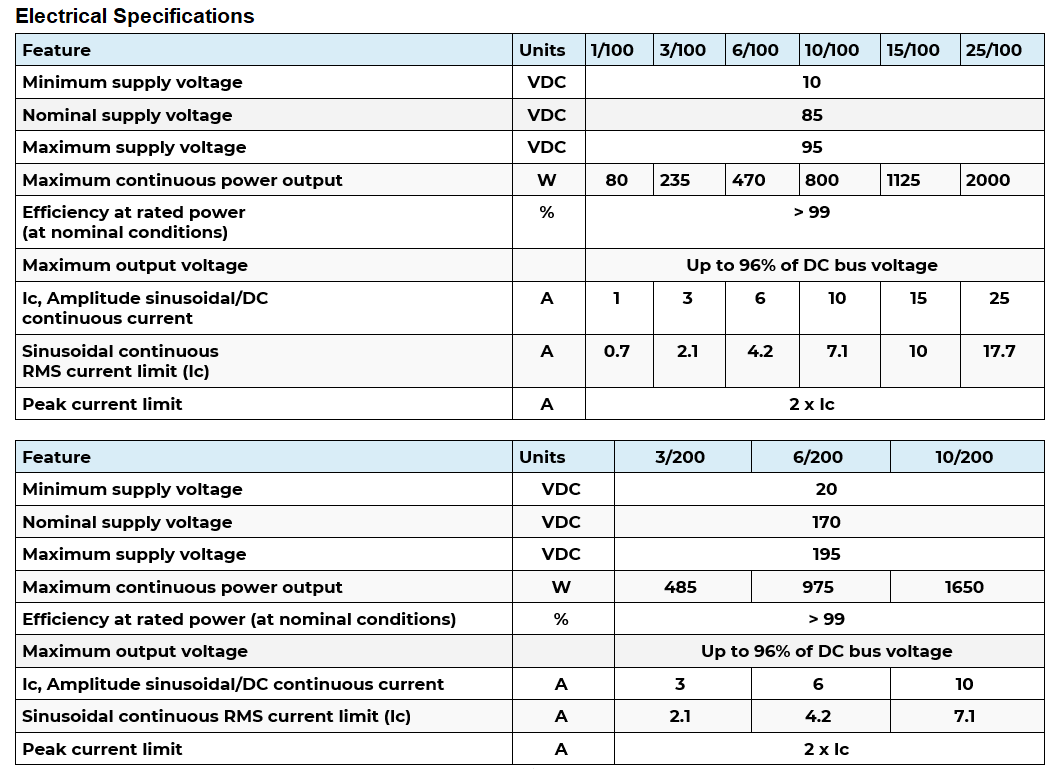

Up to 70A/100V, 80A/80V, 15A/200V, Up to 5.6kW of continuous power

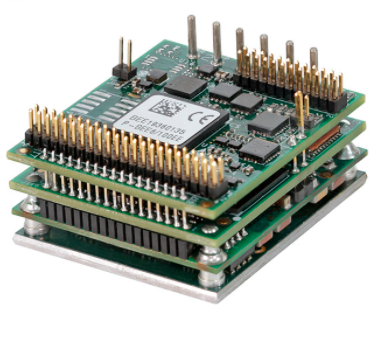

The Platinum Bee is an advanced high power density servo drive, delivering up to 5.6 kW power in a 16.4 cm3 (1.0 in³) compact package (35 x 30 x 15.6 mm or 1.38″ x 1.18″ x 0.6″).

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Bee Highlights:

Ready for the Extreme, -40 °C to +70 °C, Vibrations up to 14 GRMS

Miniature powerful servo drive Up to 15A/200V

Up to 5.6kW of continuous power

Ultra-Fast EtherCAT Networking

Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs + SIL3 output)

Platinum Series Highlights:

Best-In-Class servo performance

World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording.

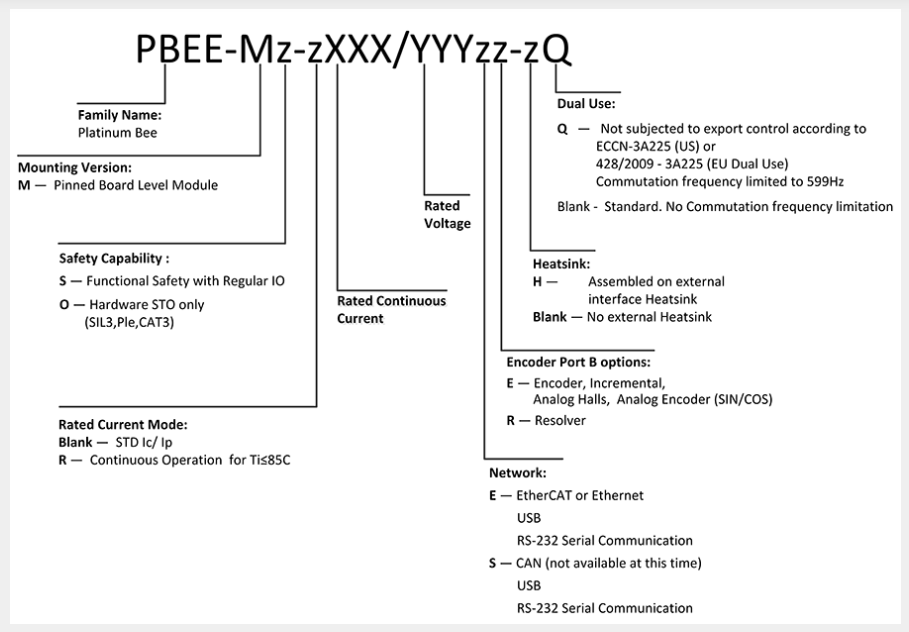

Catalog Number: PBEE-MS-3/100 EE, PBEE-MS-6/100 EE, PBEE-MS-10/100 EE, PBEE-MS-25/100 EE, PBEE-MS-15/100 EE, PBEE-MS-3/200 EE, PBEE-MS-6/200 EE, PBEE-MS-10/200 EE, PBEE-MS-R80/80 EE, PBEE-MS-R50/100 EE, PBEE-MS-R70/100 EE, PBEE-MS-R15/200 EE
