Elmo Motion Control: Platinum Line Servo Drives (Platinum Cimbasso)
New Era in Servo Control, Smallest 800VDC Servo Drive, Up to R50A/800V Up to 32kW of Continuous Power

Certified Functional Safety, Composer2, Software in the Loop Powerful Drive’s Capability

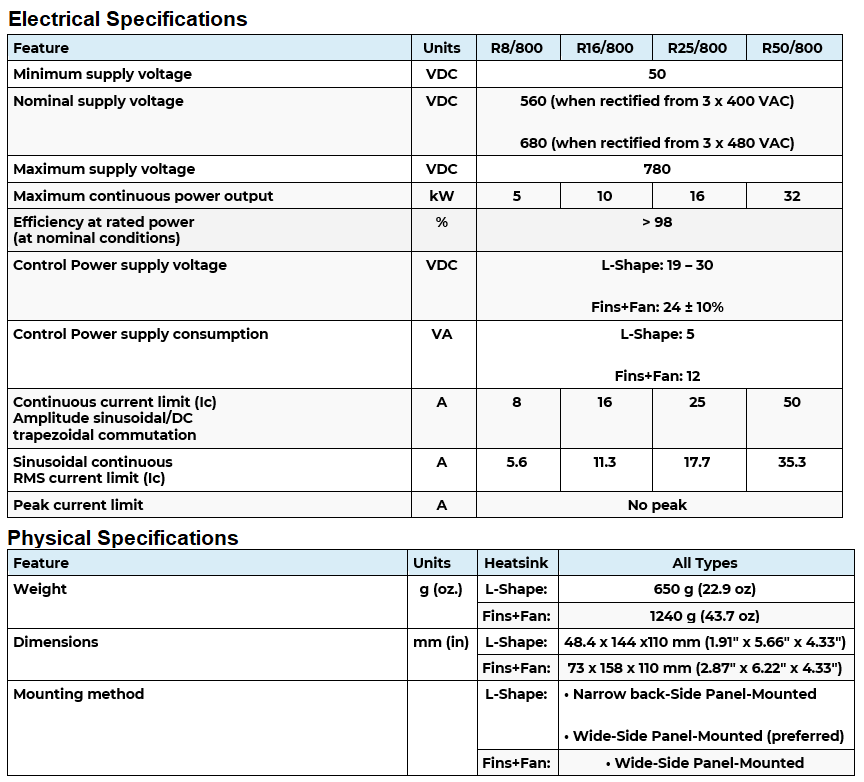

The Platinum Cimbasso is an integrated solution delivering up to 32 kW of continuous power in a compact package (73 x 158 x 110 mm or 2.87″ x 6.22″ x 4.33″).

This advanced, high power density servo drive provides top performance, functional safety, advanced networking, as well as a fully featured motion controller and local intelligence.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Cimbasso Highlights

Up to R50A/800V

Ultra-Fast EtherCAT Networking

Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs)

Platinum Series Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording.

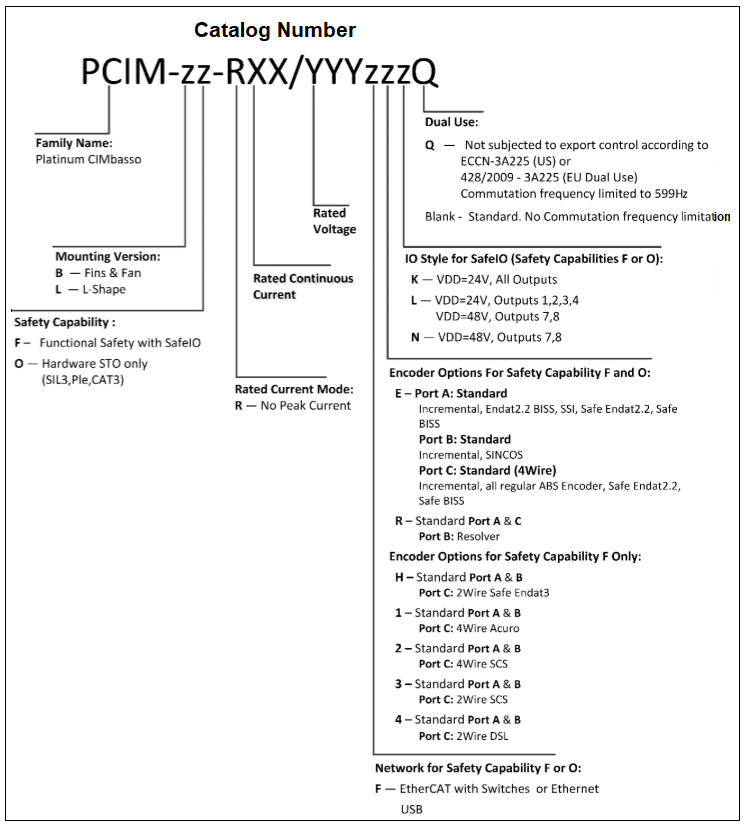

Catalog Number: PCIM-BF-R8/800FEK, PCIM-BF-R16/800FEK, PCIM-BF-R25/800FEK, PCIM-BF-R50/800FEK
