ELMO MOTION CONTROL: EXTRIQ PLATINUM, HARSH ENVIRONMENT SERVO SOLUTIONS (Platinum Hornet)

New Era Of Servo Control, Harsh Environment Ultra High Current Very Small Servo Drive

Certified Functional Safety, Composer2, Software in the Loop Powerful Drive’s Capability

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

Harsh Environment Certified Functional Safety, Up to 25A/ 100V, 9A/200V

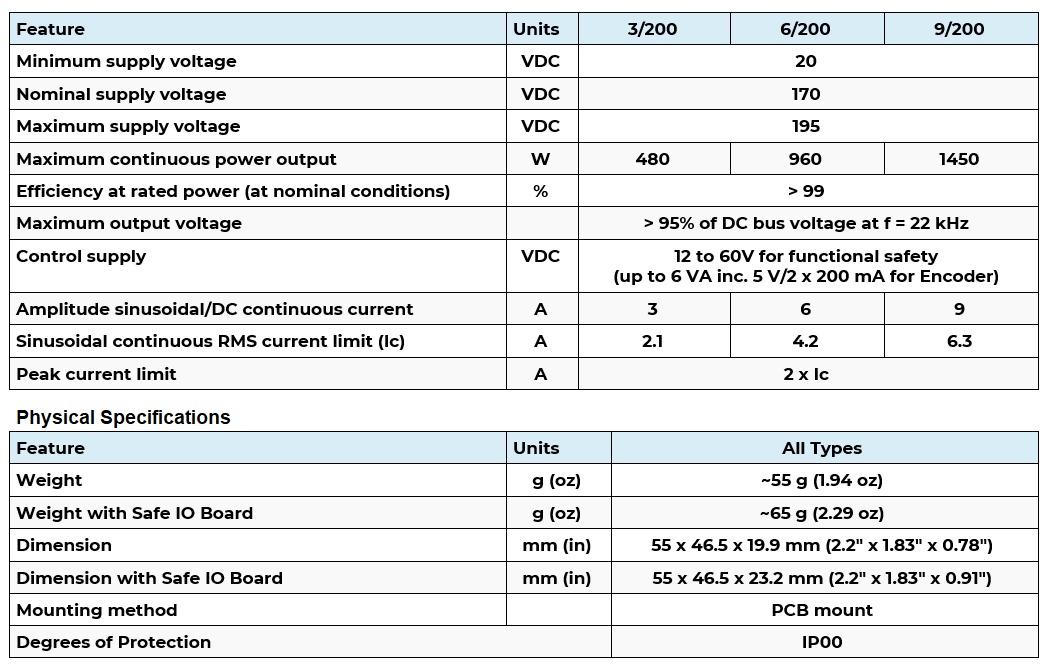

The Platinum Hornet is an advanced high power density servo drive, delivering up to 1.6 kW of continuous power or 3.2 kW of peak power in a 50.77 cc (3.10 in³) package (55 x 46.5 x 19.9 mm (2.17″ x 1.83″ x 0.78″).

This advanced, high power density servo drive provides top performance, Functional Safety, advanced networking as well as a fully featured motion controller and local intelligence.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Series Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature Harsh Environment functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording

Composer2, Proprietary Drive Level SIL(Software In The Loop), allows running customer’s control algorithms within the drive’s real-time

Platinum Hornet Highlights

Ready for the Extreme, Field proven high MTBF

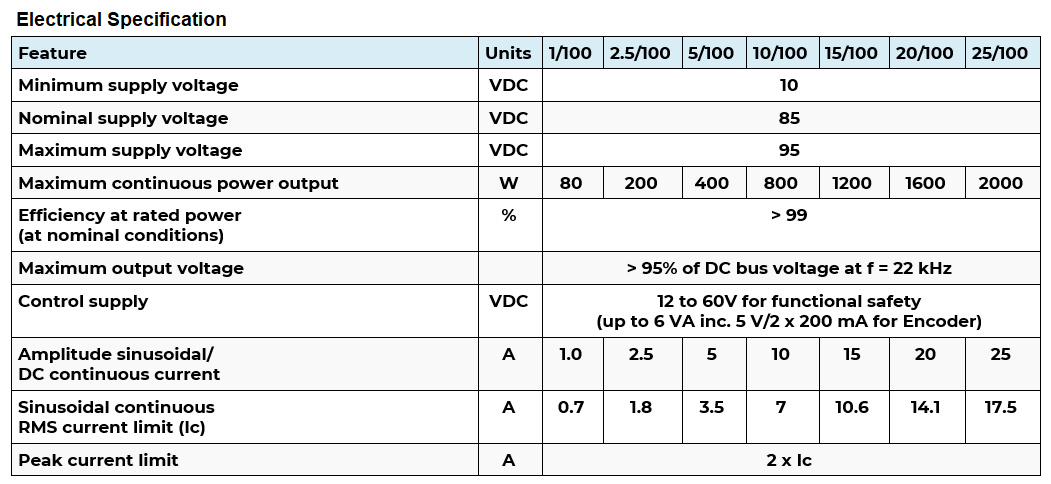

High current, very small servo drive, up to 25A/100V, 9A/200V

Ultra Efficient, >99%

Up to 1.6kW of continuous electrical output power

Ultra-Fast EtherCAT Networking

Harsh Environment Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

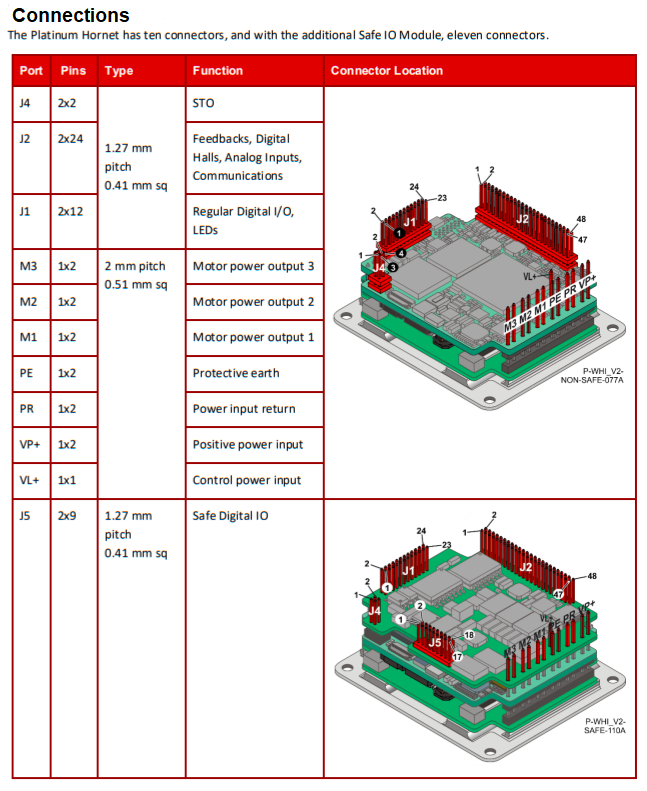

Harsh Environment Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs + SIL3 output)

Negligible EMI

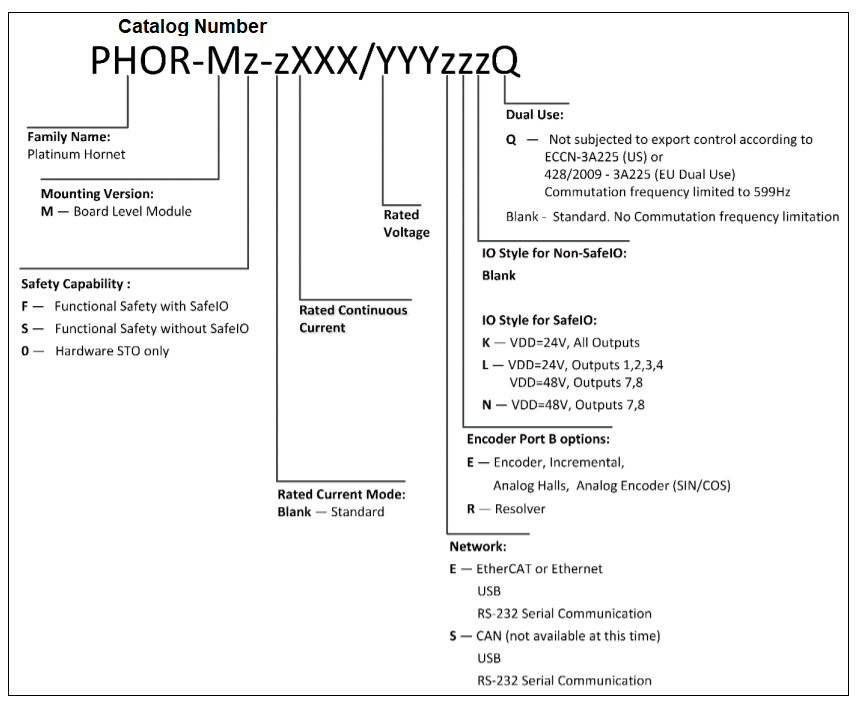

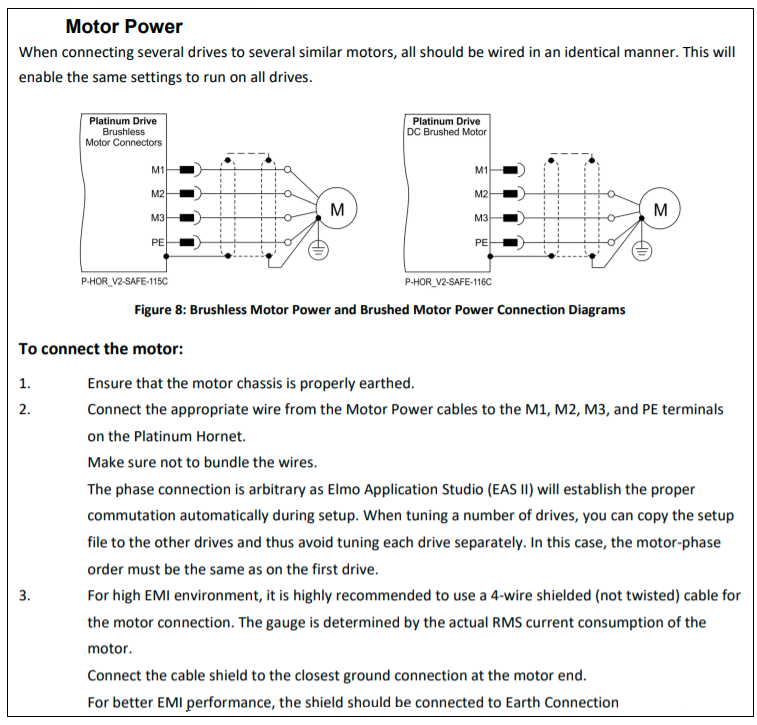

Catalog Number: PHOR-MF-1/100 EEK, PHOR-MF-2.5/100 EEK, PHOR-MF-5/100 EEK, PHOR-MF-10/100 EEK, PHOR-MF-15/100 EEK, PHOR-MF-20/100 EEK, PHOR-MF-25/100 EEK, PHOR-MF-3/200 EEK, PHOR-MF-6/200 EEK, 9/200
