ELMO MOTION CONTROL: EXTRIQ PLATINUM, HARSH ENVIRONMENT SERVO SOLUTIONS (Platinum Solo Triple Bee)

New Era Of Servo Control,Harsh Environment Ultra High Current Compact Servo Drive,Certified Functional Safety
Composer2, Software in the Loop Powerful Drive’s Capability, Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

In addition to enduring the most extreme environment the ExtrIQ Platinum exhibits top servo performance, super compact sizes, high efficiency, negligible EMI, High Reliability and answering any servo and motion requirements. The durability is verified by the most severe Environmental, EMC and Safety Standards.

The Ultra High Current Platinum Solo Triple Bee is an advanced high power density servo drive, delivering up to 17 kW electrical power in a 165cm3 (10.Inch3) compact package 55 x 80 x 37.6 mm (2.16″ x 3.15″ x 1.48″).

Platinum Series Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature Harsh Environment functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

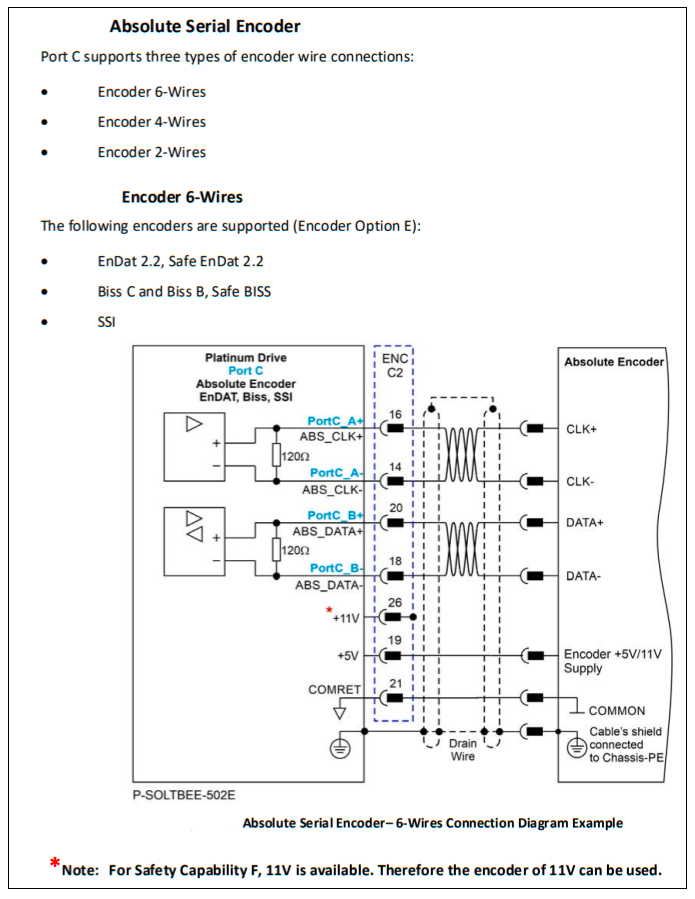

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording

Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time

Platinum Solo Triple Bee Highlights

Ready for the Extreme, Field proven, high MTBF

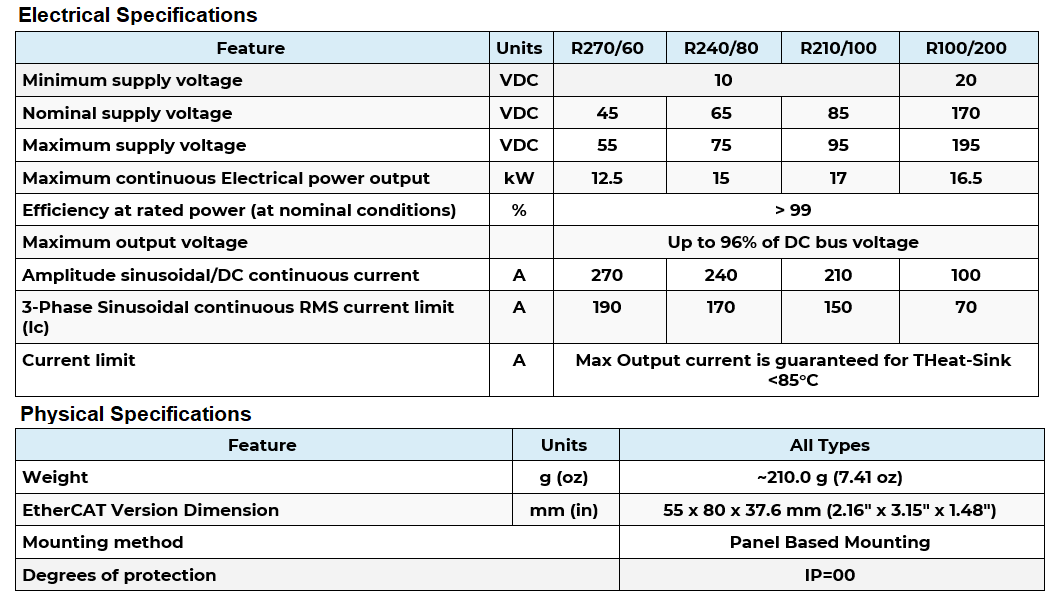

High current servo drive Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V

Ultra Efficient, >99%

Up to 17kW of continuous electrical output power

Ultra-Fast EtherCAT Networking

Harsh Environment Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Harsh Environment Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs + SIL3 output)

Negligible EMI

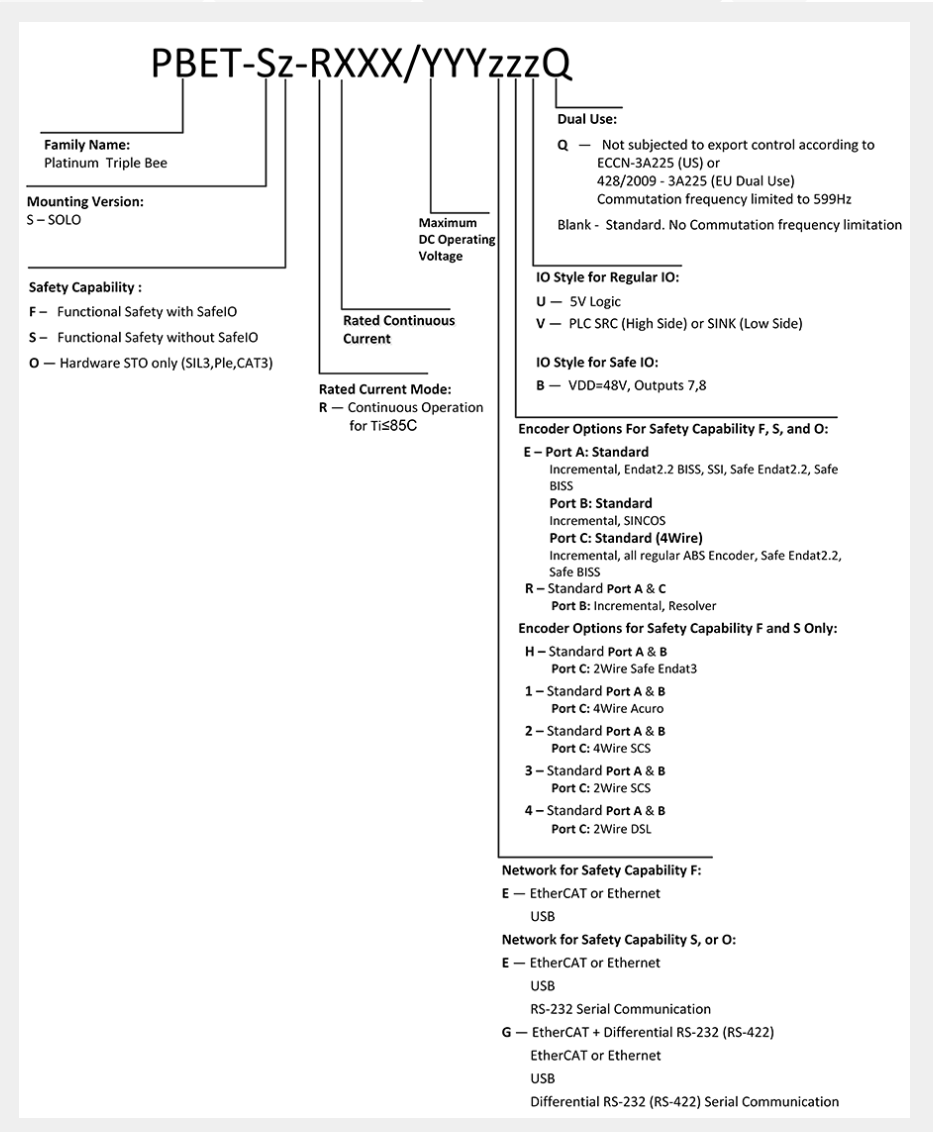

Catalog Number: PBET-SF-R270/60 EEU, PBET-SF-R240/80 EEU, PBET-SF- R210/100 EEU, PBET-SF-R100/200 EEU
