Elmo Motion Control: Platinum Line Servo Drives (Platinum Solo Triple Twitter)

New Era in Servo Control, Ultra High Current Super Compact Servo Drive

Certified Functional Safety, Composer2, Software in the Loop

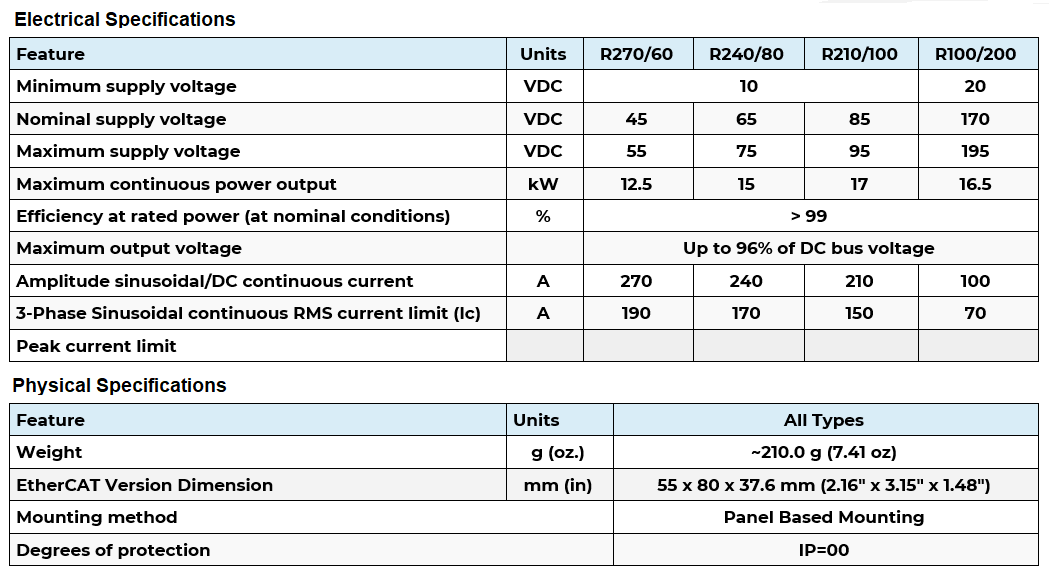

Powerful Drive’s Capability, Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V

The Platinum Solo Triple Twitter is a ready-to-use, ultra high current servo drive and part of Elmo’s innovative Platinum series. The Platinum Solo Triple Twitter provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

This advanced high power density drive delivers up to 17 kW power in a 165.44 cm3 (10.09 Inch3) compact package 55 x 80 x 37.6 mm (2.16″ x 3.15″ x 1.48″).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Series Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

Composer2, Proprietary Drive Level SIL(Software In The Loop), allows running customer’s control algorithms within the drive’s real-time

High processing power with large memory resources for better control, enhanced processing, and real time recording

Platinum Solo Triple Twitter Highlights

World’s Highest Density Of Power And Intelligence

High current servo drive Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V

Ultra Efficient, >99%

Qualitative Power up to 17kW

Ultra-Fast EtherCAT Networking

Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs)

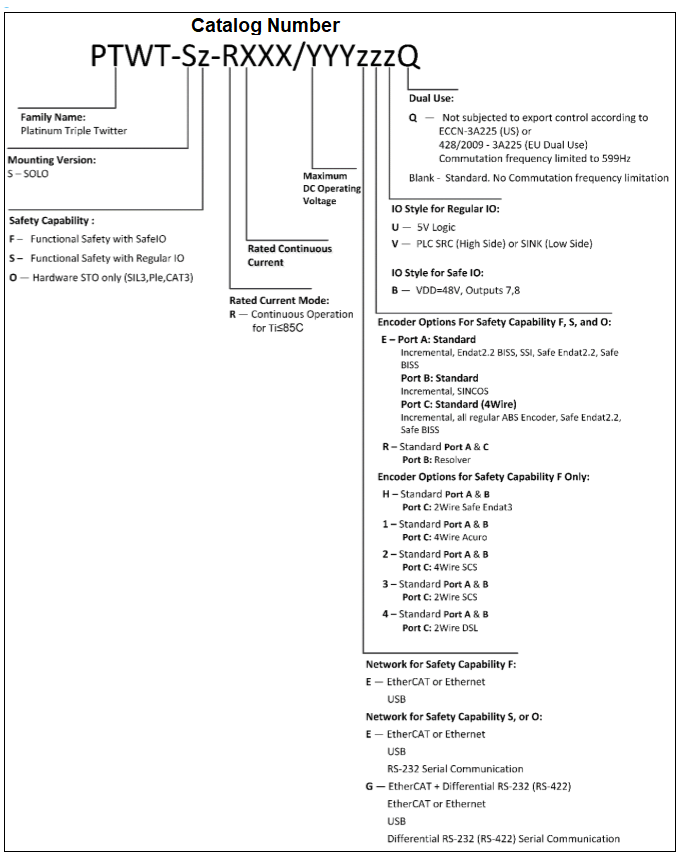

Catalog Number: PTWT-SF-R270/60EEU, PTWT-SF-R240/80EEU, PTWT-SF-R210/100EEU, PTWT-SF-R100/200EEU
