Elmo Motion Control: Platinum Line Servo Drives (Platinum String Quartet) Type: 6/400
New Era In Servo Control, Composer2, Software in the Loop Powerful Drive’s Capability, Ultra Compact, A Complete 4 Axis, Motion Control System, 4 X 16A Continuous, 400VDC

The Platinum String Quartet is an integrated solution delivering up to 8000 W of continuous power in a compact package (224 x 133 x 80 mm or 8.82″ x 5.24″ x 3.15″).

This advanced, high power density servo drive provides top performance, functional safety, advanced networking, as well as a fully featured motion controller and local intelligence.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robot manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum String Quartet Highlights

A compact, ready to use advanced multi-axis motion controller + 4 smart servo drives

Most powerful, 16A ( 30A peak) each drive at 400VDC

Advanced multi-axis control capabilities

Ultra-Fast EtherCAT Networking

Advanced Safety Functionality (STO)

Platinum Series Highlights

Best-In-Class servo performance

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

Composer2, Proprietary Drive Level SIL(Software In The Loop), allows running customer’s control algorithms within the drive’s real-time

High processing power with large memory resources for better control, enhanced processing, and real time recording

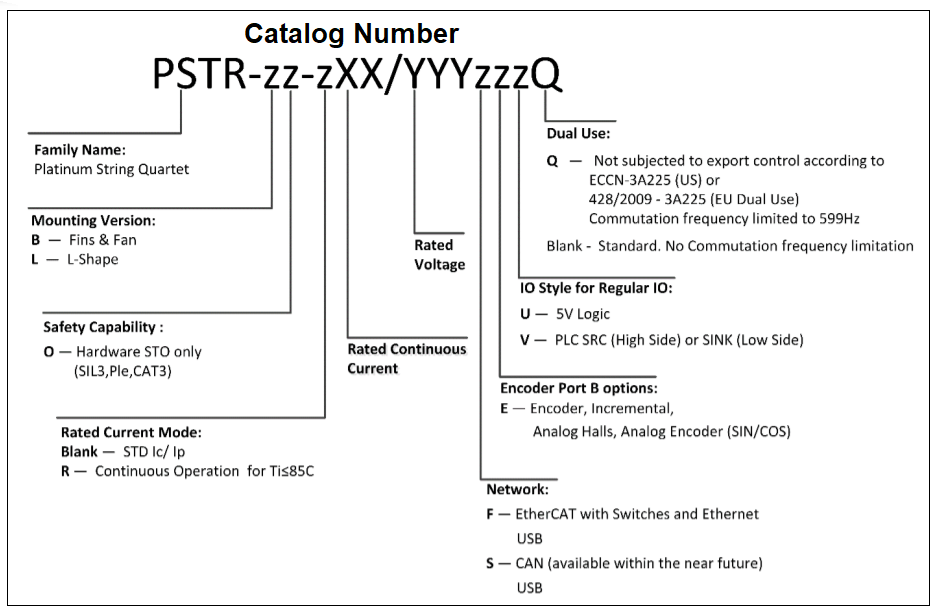

Catalog Number: PSTR-BO-16/400FEU, PSTR-BO-6/400FEU
