Smart, High Current Power Supply for Servo Applications

The Tambourine-100 is Elmo’s latest smart, powerful, high-current-power supply designed to power multiple servo drives.

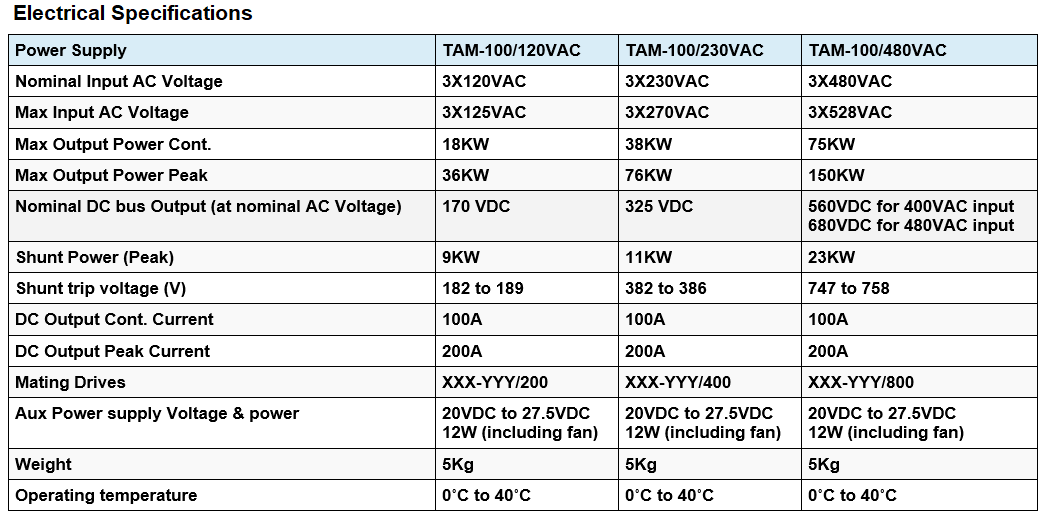

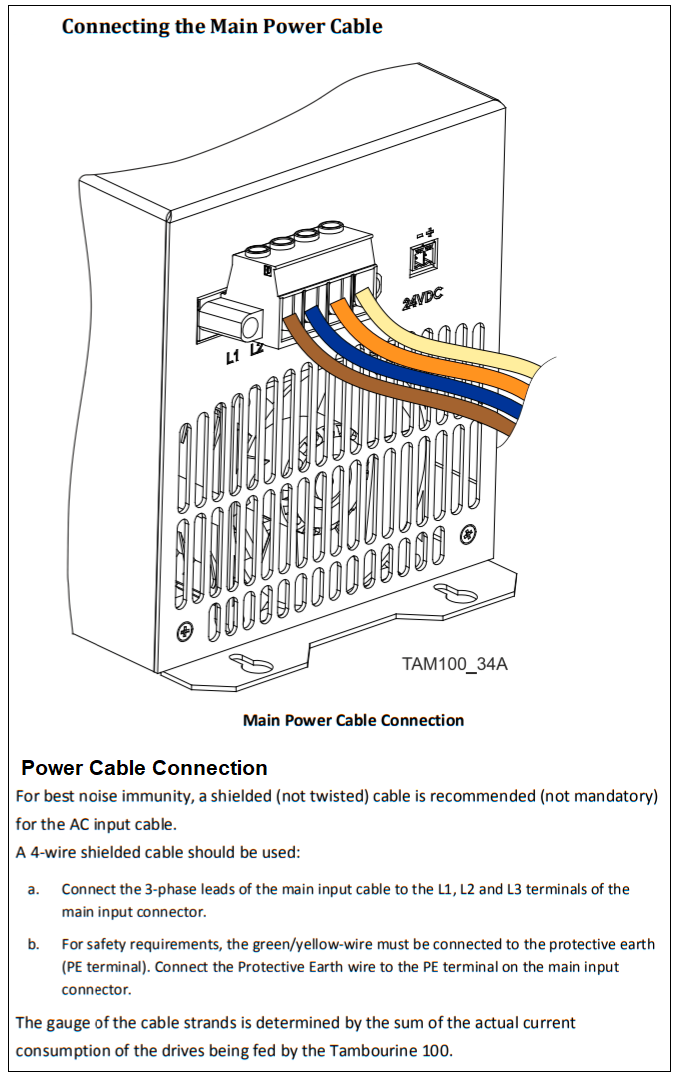

The Tambourine-100 rectifies AC input voltage of up to 3x528VAC, into filtered DC voltage with output current of 100A continuous and 200A peak.

Features:

Rectifies AC input voltages of up to 3×528VAC into filtered DC voltage with an output current of 100A continuous and a 200A peak.

The number of servo drives powered by a single Tambourine-100 power supply is limited only by the total power consumption of the servo drives and not by the output current of the Tambourine-100. Therefore, a number of servo drives can be powered by a single Tambourine-100, as long as the total sum of these drives’ power-consumption is below 100A.

Either operates directly from the mains when feeding isolated servo drives or via an isolation transformer when non- isolated servo drives are employed.

Has regenerating braking capability that enables fast braking of high inertia.

Has built-in active zero crossing inrush current limiters that limit the power-on currents to low levels, reducing turn-on stress from the mains.

Has internal EMC filtering that eliminates the necessity for external devices, therefore complies with CE and other EMC regulations.

Has a metallic book shelf (panel mount) structure, enabling simple and fast mounting.

Protection

Built-in Protection:

Over temperature

“Shunt On” Duty Cycle limiter

Phase loss

Input/output

PLC level with isolated inputs & outputs

In 1- Enable/disable DC power bus input

In 2 – Fast discharge DC bus line whenever a phase loss is detected or upon AC shut down

Out 1 – Phase loss indication output

Out 2 – Pre-temperature protection indication output

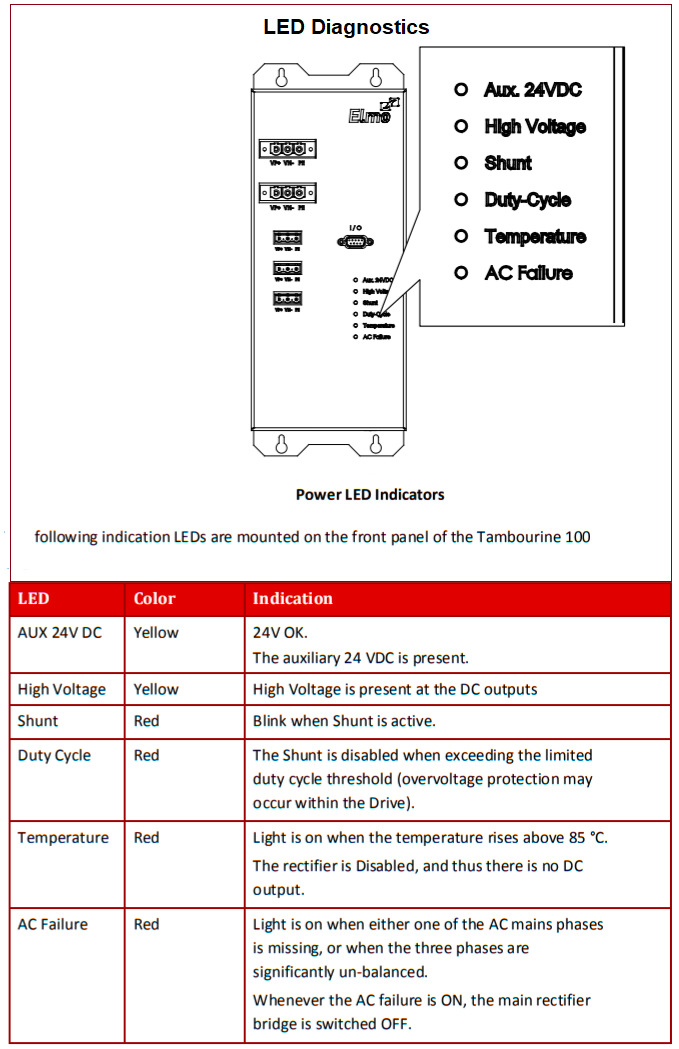

LED indicators

The front display has the following indicators:

Auxiliary 24V

High power

Shunt “ON” state

Shunt duty cycle limit

Over temperature

AC Fault

Tambourine 100 Highlights:

100A continuous output current

AC input (50 to 500Hz)

Three-phase operation only

Direct-to-mains operation capability

High regenerative (braking) capability

Active zero crossing inrush current limit

EMC filtering “inside”

Use I/O level to control On/Off output power

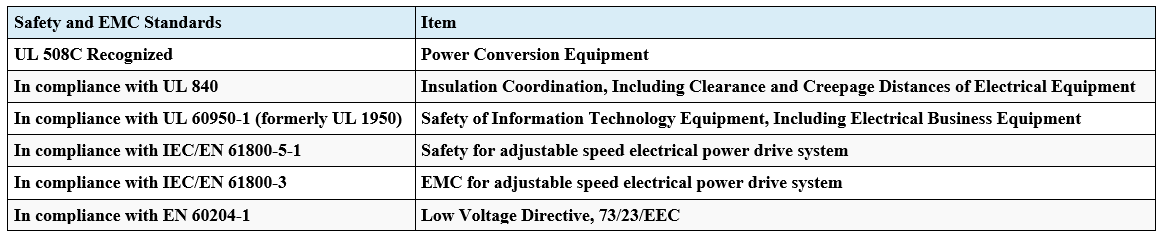

UL, IEC, CE, compliant

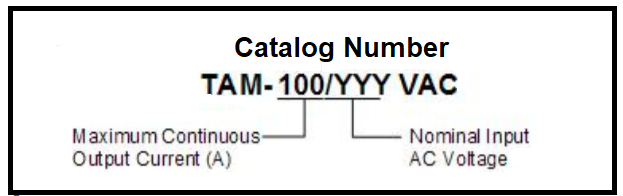

Catalog Number: TAM-100/120VAC, TAM-100/230VAC, TAM-100/480VAC
