Elmo Motion Control: Power Supply - Tambourine-30

The Tambourine (TAM-30) is Elmo’s compact, direct-to-mains power supply, designed for multiple servo drives.

The Tambourine rectifies AC input voltage of up to 3 x 528 VAC, into
filtered DC voltage with a continuous output current of 30 A (60 A peak). It also complements Elmo servo drives that do not include an integrated power supply.

Learn more about Elmo’s Power Supply and read our white paper.

Features:

Rectifies AC input voltage of up to 3 x 528 VAC, into filtered DC voltage with a continuous output current of 30 A (40 A peak).

The number of servo drives powered by a single Tambourine is limited only by the total power consumption of the servo drives, and not by
the output current of the Tambourine.

Operates directly from the mains when feeding isolated servo drives,
or via an isolation transformer when non-isolated servo drives are employed.

High capacitance to offer a low output voltage drop while operating
from a single-phase source.

Regenerating braking capability that allows fast braking when there is high inertia.

Built-in inrush current limiters that limit the power-on currents to low levels, reducing turn-on stress from the mains.

Internal EMC filtering that eliminates the necessity for external
devices, thereby complying with the CE EMC Directive.

Panel mounted for simple and fast mounting.

Built-in Protection & Diagnostics:

“Shunt On” duty cycle limiter

Three diagnostic LEDs: Power on, Shunt on, Duty cycle limitation

Tambourine Highlights:

Continuous output current: 30 A

AC input

Single- or three-phase operation

Direct-to-mains operation capability

High regenerative (braking) capability

Inrush current limit

EMC filtering “inside”

UL approved and CE compliant

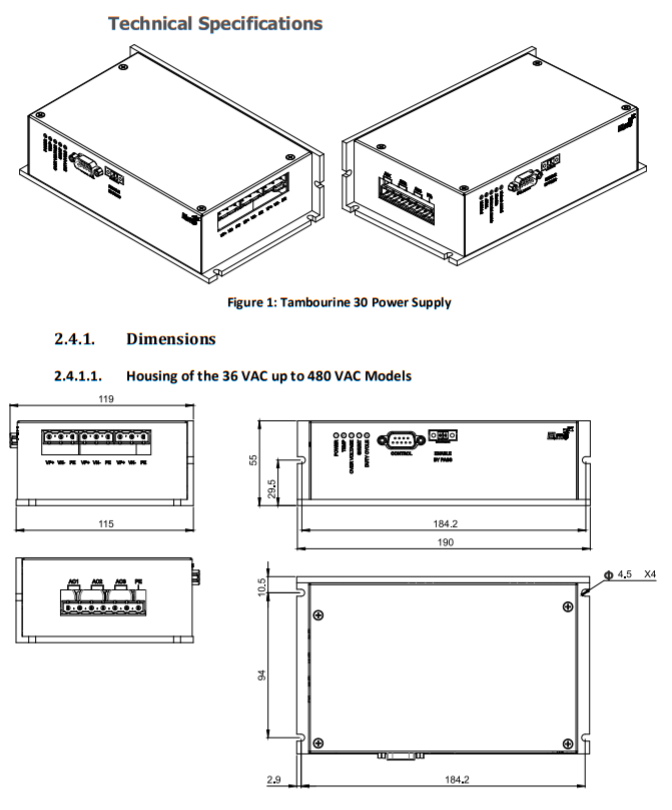

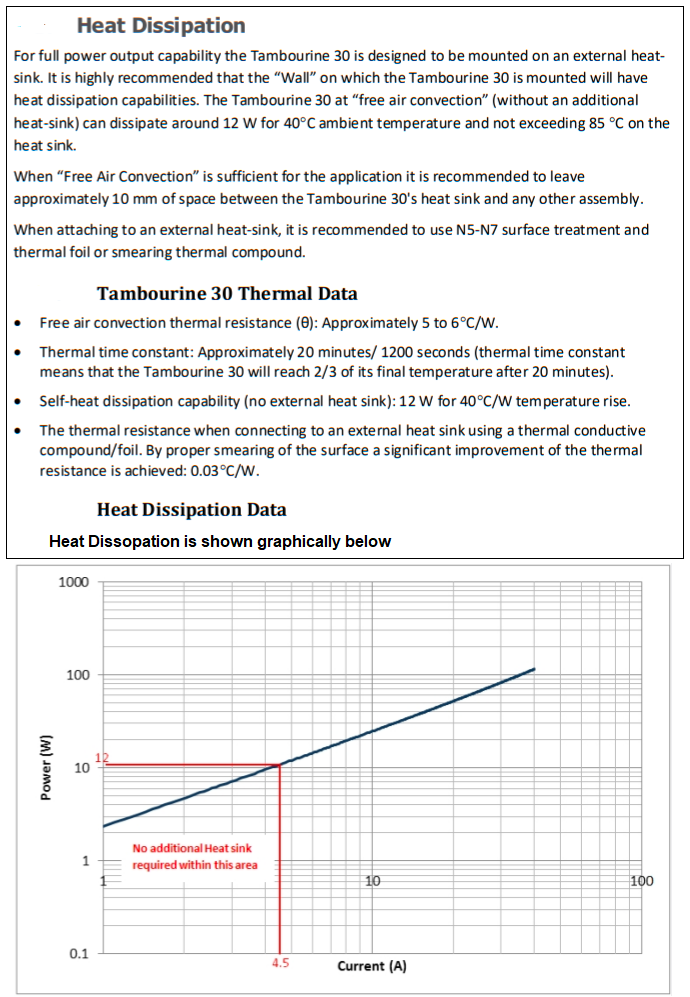

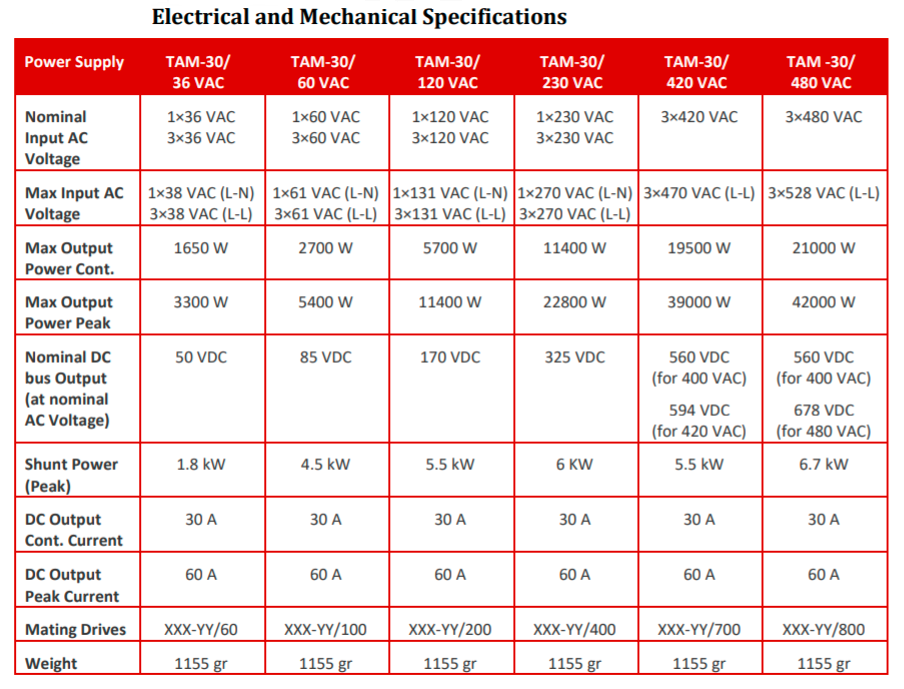

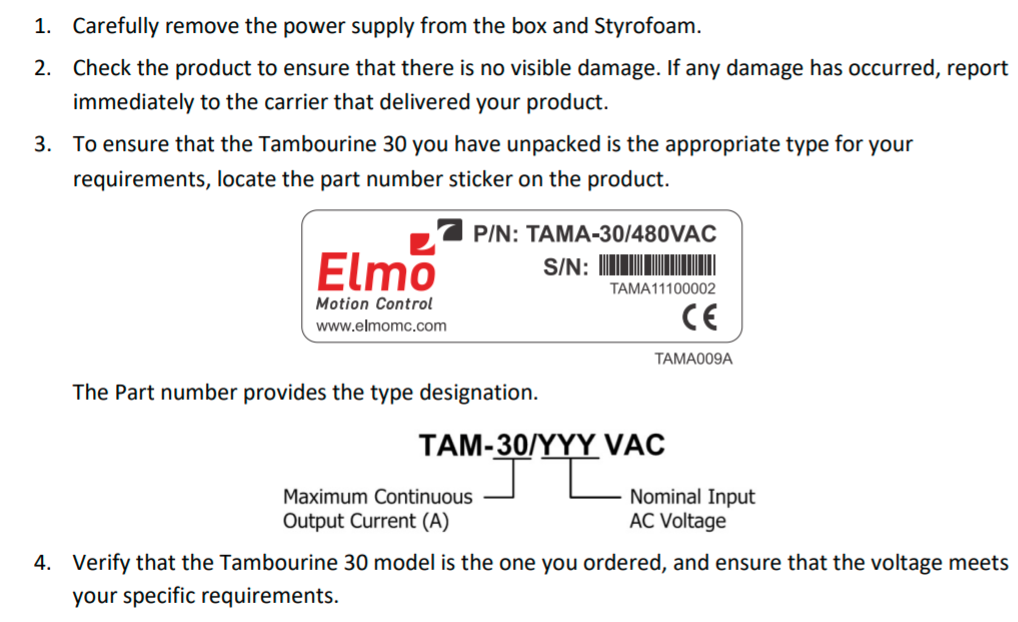

Catalog Number: TAM-30/36 VAC, TAM-30/60 VAC, TAM-30/120 VAC, TAM-30/230 VAC, TAM-30/420 VAC, TAM-30/480 VAC

Installation Guides

Tambourine-30 Installation Guide_V.1.200_Aug 2019

Product Design Files

3D IGES Format
