Elmo Motion Control: Sero Drive SimplIQ Family (Solo Whistle)

Integrated Whistle Solution, Ultra small Intelligent Servo Drive, UP to 50A, 100V

Ready to use miniature most powerful servo drive with new rating of up to 50A, 100V

The senior WHISTLE family with over 2,000,000 drives in the field and over 20,000,000,000 accumulated operating hours exhibits most advance with utmost reliability servo drive.

Highest power density results ultra-small package, Smart by the advance control and richness of motion capabilities, very simple and fast implementation.

Solo Whistle Highlights:

Smart Motion Control Servo Drive

Highest power and Intelligence density incorporated with Elmo’s senior SimplIQ core

High level programming environment

Supports a wide variety of feedbacks

Mountable anywhere-in the motor, in the machine, on the load, attached to the moving part, etc.

Ready-to-use in a space saving package

Advance supporting tools for fast and easy implementation.

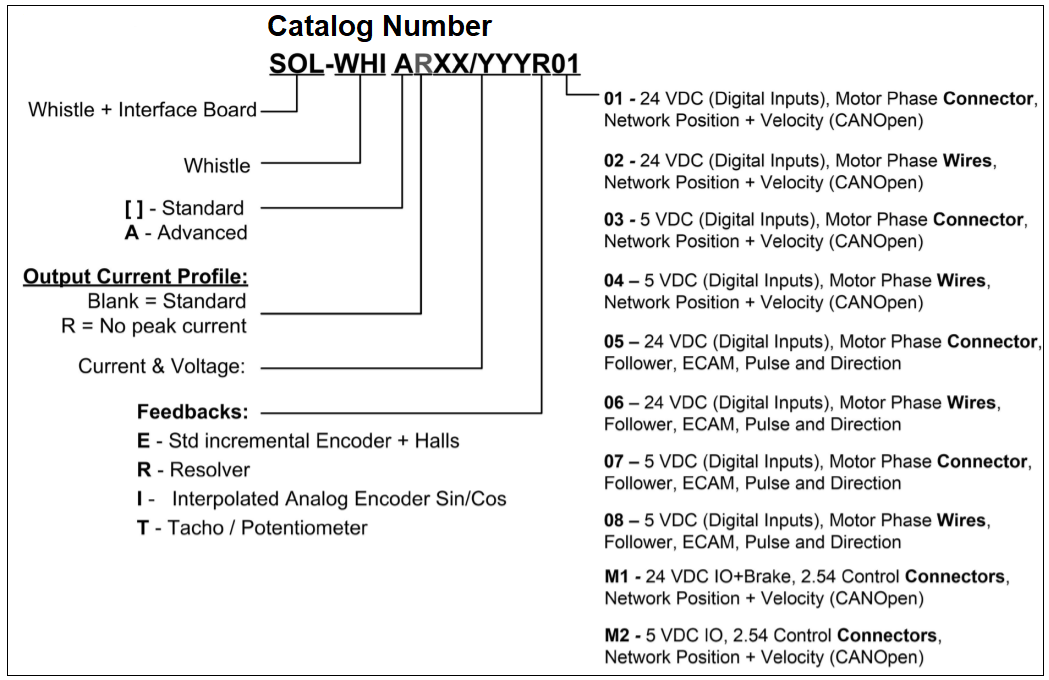

The Solo Whistle is available in two auxiliary feedback configurations.

The Solo Whistle with Auxiliary Input Feedback is an integrated solution that receives either the position command data of the master encoder (in follower or ECAM mode), or a pulse and direction command. The input feedback configuration is indicated by the last two digits of the product part number: 05 up to 08.

The Solo Whistle with Auxiliary Output Feedback provides the main or emulated differential buffered auxiliary incremental encoder signals. This configuration is indicated by the last two digits of the product part number: 01 up to 04.

As with other Elmo SimplIQ digital products, the Solo Whistle can be easily set up and tuned with Elmo’s Composer software tools.
