Elmo Motion Control: SimplIQ Servo Drives (Bee Series)Bee

The ExtrIQ, Servo Solutions For Harsh Environments

Elmo's ExtrIQ is a standard "off the shelf" series of durable motion control products designed, verified, manufactured and tested for applications operating under extreme environmental conditions.

The ExtrIQ series includes both Elmo’s Control Cores: The senior SimplIQ drives and the “State Of Art” GOLD Servo Drives.

In addition to enduring the most extreme environment the ExtrIQ exhibits top servo performance, super compact sizes, high efficiency, negligible EMI, High Reliability and answering any servo requirement The durability is verified by the most severe Environmental, EMC and Safety Standards.

Mating Power Supply ELP-30.

Servo Drives that are “Ready For The Extreme”
An extremely resilient solution, ExtrIQ is ideal for a broad range of motion control applications operating in harsh environmental conditions requiring high reliability and top servo performance such as:

• Extreme Outdoor operation anywhere on the globe, hot, cold, icy, frozen, desert, humid, blustery,

• AGV, Automatic guided vehicles on ground, air and sea.

• Ground mobile

• Marine

• Aviation

• Laboratory Automation

• Aerospace

• Deepwater Oil Refining

• Un-manned Vehicles

• Satellite Communication

• Arctic Drilling

• From complex multi-axis motion control to extremely demanding servo mechanisms

• With advanced performance, high precision and accuracy

• With the fastest response and speed

• Yielding superior results

• Any Motion: Single and multi-axis control for any range and accuracy level of motion, centrally controlled.

• Any Servo: One development environment and one control application for servos of all sizes, motions, and power capabilities.

• Any Power: From 10- 65,000 watts, highly stable and consistent power.

• Any Current: From 1A to 600A.

• Any Voltage: AC, DC and direct-to-mains.

• Any Feedback: Support for any industry feedback from any machine manufacturer.

• Any Motor: AC Servo, Linear, Direct Drive, Gantry, Planar, Stepper,..

• Any Environment: Support any environment from -40°C to 70°C, from 0 to 14GRMS.

• Any Space: Ultra Miniature, Ultra Rugged, Ultra Efficiency.

ExtrIQ Durability

The ExtrIQ Products are designed, manufactured and tested to meet Extreme Environmental Conditions. The ExtrIQ durability is qualified,verified and tested according to the most severe Environmental, EMC and Safety Standards exceeding the traditional and senior Military STDs.

Bee Series

Miniature Digital DC Servo Drive Controller for Extreme Environmental Conditions. Ultra - light and intelligent digital servo drive. Operating Modes-Current, Velocity, Position & Advance Position.

The Bee is a highly durable series of featherweight ExtrIQ digital servo drives for DC brush and brushless motors, linear motors and voice coils. Despite weighing only .95 oz (27 g), the Bee can withstand extended environmental conditions and support up to 3.3 amps continuous current. Its high density allows the drive to deliver a peak of 400 W of power and 200 W of continuous power.

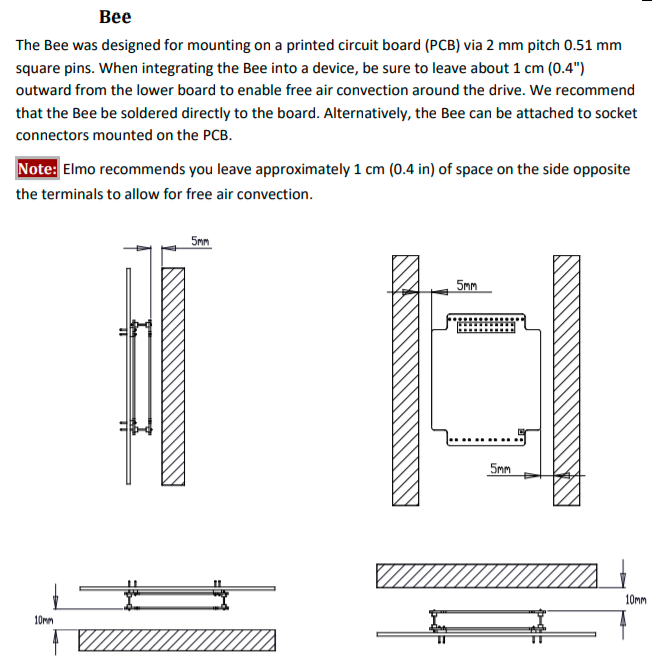

Based on Elmo's SimplIQ Motion Control technology, the Bee is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. By using Elmo's Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on DC power. The Bee is a PCB mounted device that enables an efficient and cost saving implementation.
