Elmo Motion Control: Servo Drive SimplIQ Family ( Solo Trombone)

Ultra-compact, Stand-alone, Network Servo Drive (Up to 16 A/800 V)Up to 10 kW of continuous power

The Solo Trombone is an ultra-compact, integrated digital servo drive that weighs 350 g (12.3 oz) and offers up to 10 kW of continuous power.

This servo drive is a SimplIQ Trombone with an integrated board that houses convenient connectors which can be used when the servo drive is not directly connected to a PCB. The Solo Trombone can also be used for testing purposes prior to integrating the Trombone into a PCB. This high power density servo drive is designed to operate “Direct to Mains” from a high voltage DC power supply of up to 400 VDC or 780 VDC, without the need for a transformer. As with all digital servo drives in the SimplIQ and Gold Lines, the Solo Trombone connects to the Gold Maestro, the ultimate distributed network motion controller.

A Feature-rich Solution

The Trombone is truly feature-rich, combining high power density, programming flexibility, CANopen networking and numerous motion control features, resulting in a very effective solution for a wide variety of challenging applications. There are two single DC bus options: 50 – 400 VDC and 100 – 780 VDC, with a built-in smart supply for controlling the back-up capabilities. The Trombone can also operate with a 24 VDC auxiliary power supply for the back-up features.

Solo Trombone Highlights:

Based on SimplIQ core motion control technology

Ultra-compact, highest power density

Highly efficient

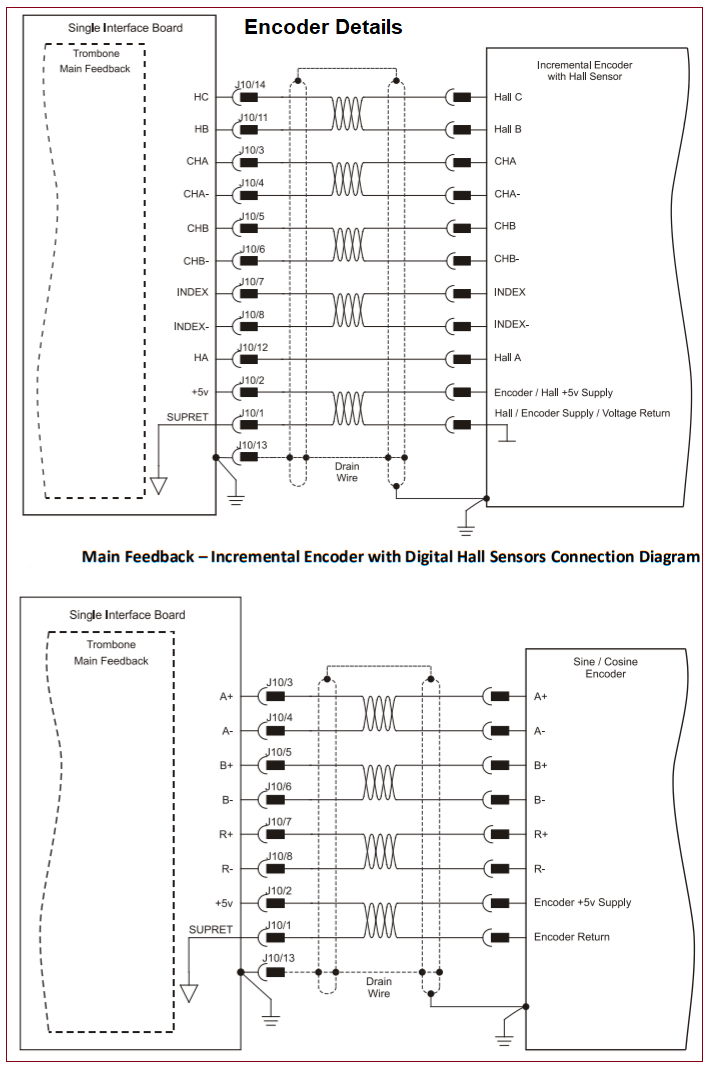

Supports a wide variety of feedback sensors

Vector control sinusoidal commutation

Advanced filtering and velocity gain scheduling for enhanced dynamic performance

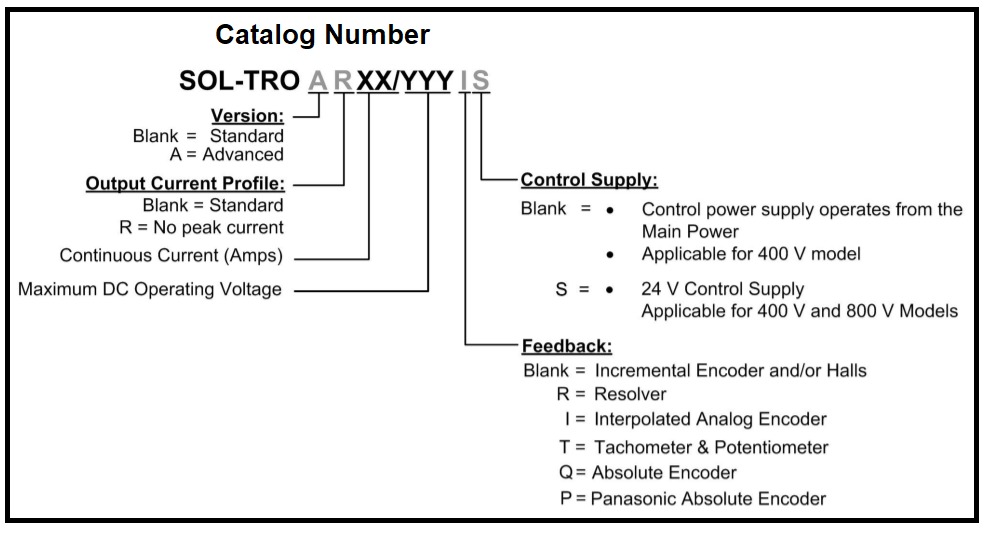

Catalog Number: SOL-TRO 12/400, SOL-TRO16/400, SOL-TRO R 17/400, R 22/400, 8/800, SOL-TRO 12/800, SOL-TRO R 11/800, SOL-TRO R 16/800
