Trombone Digital Servo Drive

A PCB-mounted servo drive that operates directly from the mains (up to 400 VDC or 780 VDC power source) and delivers up to 10 kW of continuous qualitative power

The Trombone is a new addition to Elmo’s SimplIQ product suite – intelligent digital servo drives for sinusoidal, trapezoidal and DC motors.

This servo drive is PCB-mounted and it provides top performance, coupled with intelligent networking capabilities in a high level programming environment.

A Feature-rich Solution

The Trombone is truly feature-rich, combining high power density, programming flexibility, CANopen networking and numerous motion control features, resulting in a very effective solution for a wide variety of challenging applications.

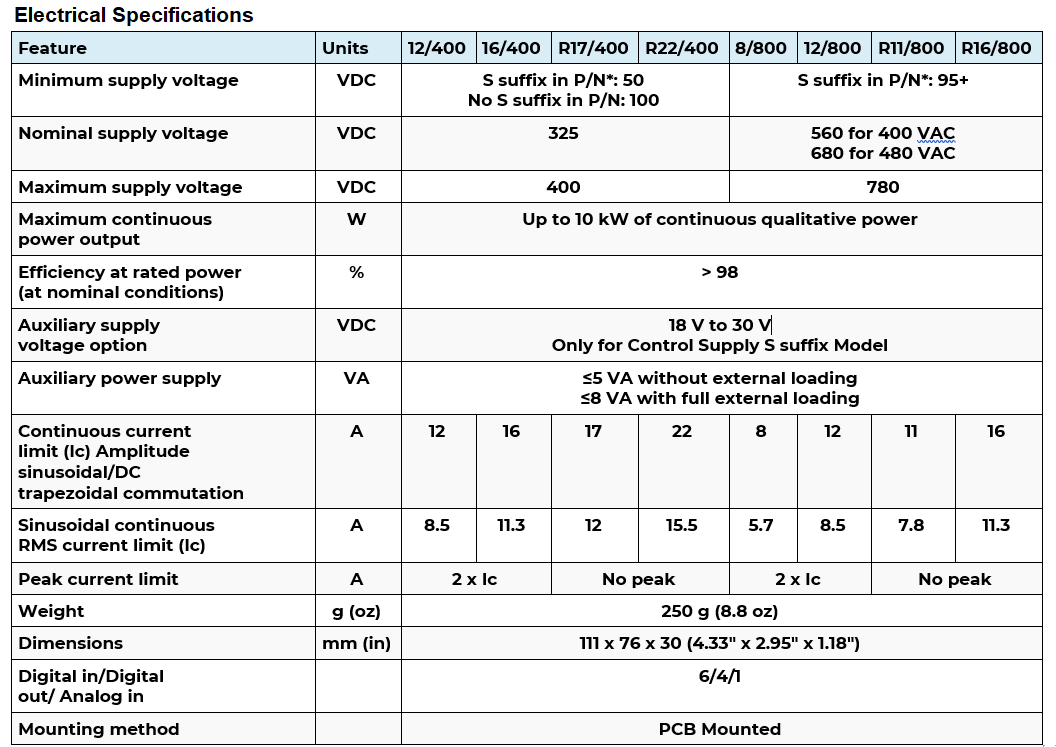

There are two single DC bus options: 80 – 400 VDC and 200 – 750 VDC, with a built-in smart supply for controlling the back-up capabilities. The Trombone can also operate with a 24 VDC auxiliary power supply for the back-up features.

Trombone Highlights:

Based on SimplIQ core motion control technology

Ultra-compact, highest power density

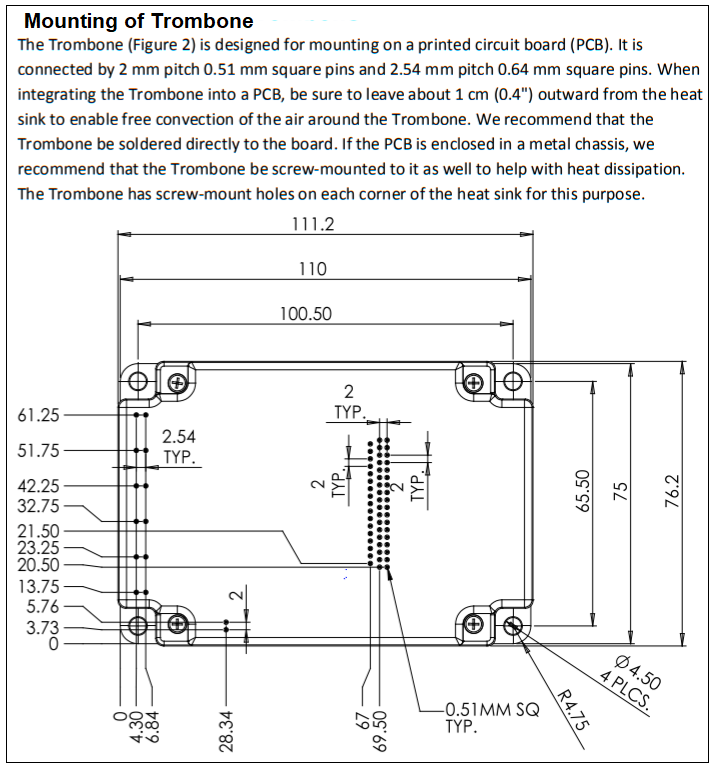

PCB-mounted

Highly efficient

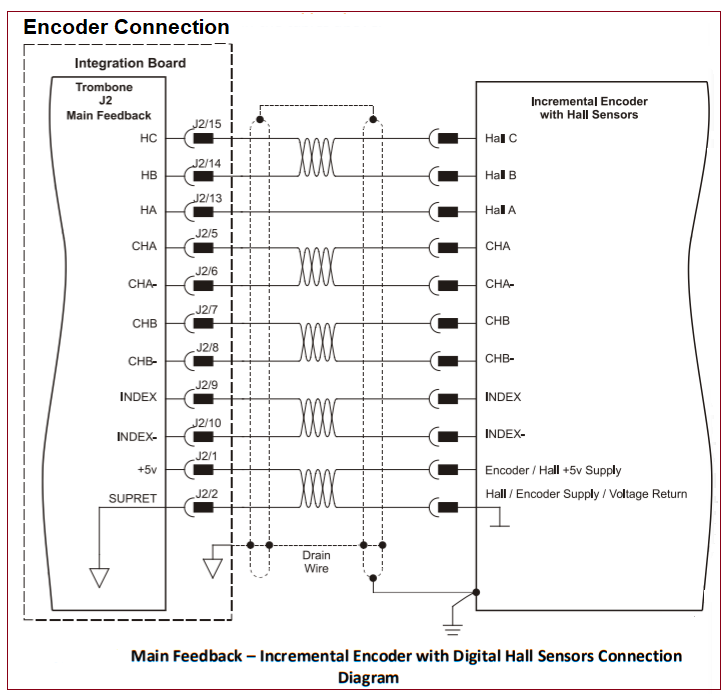

Supports a wide variety of feedback sensors

Vector control sinusoidal commutation

Advanced filtering and velocity gain scheduling for enhanced dynamic performance
