Elmo Motion Control: ExtrIQ SimpIQ HARSH ENVIRONMENT SERVO SOLUTIONS (Solo Hornet)

The Ultra Compact Servo Drive for Military Applications

The Solo Hornet series is a highly durable series of miniature ExtrIQ digital servo drives for DC brush and brushless motors, linear motors and voice coils

The matchbox-sized servo drives weighs only 1.8 oz (50 g) but can withstand extended environmental conditions and support up to 20 amps continuous current. Its high density allows the drive to deliver a peak of 3.2 kW of power and 1.6 kW of continuous power.

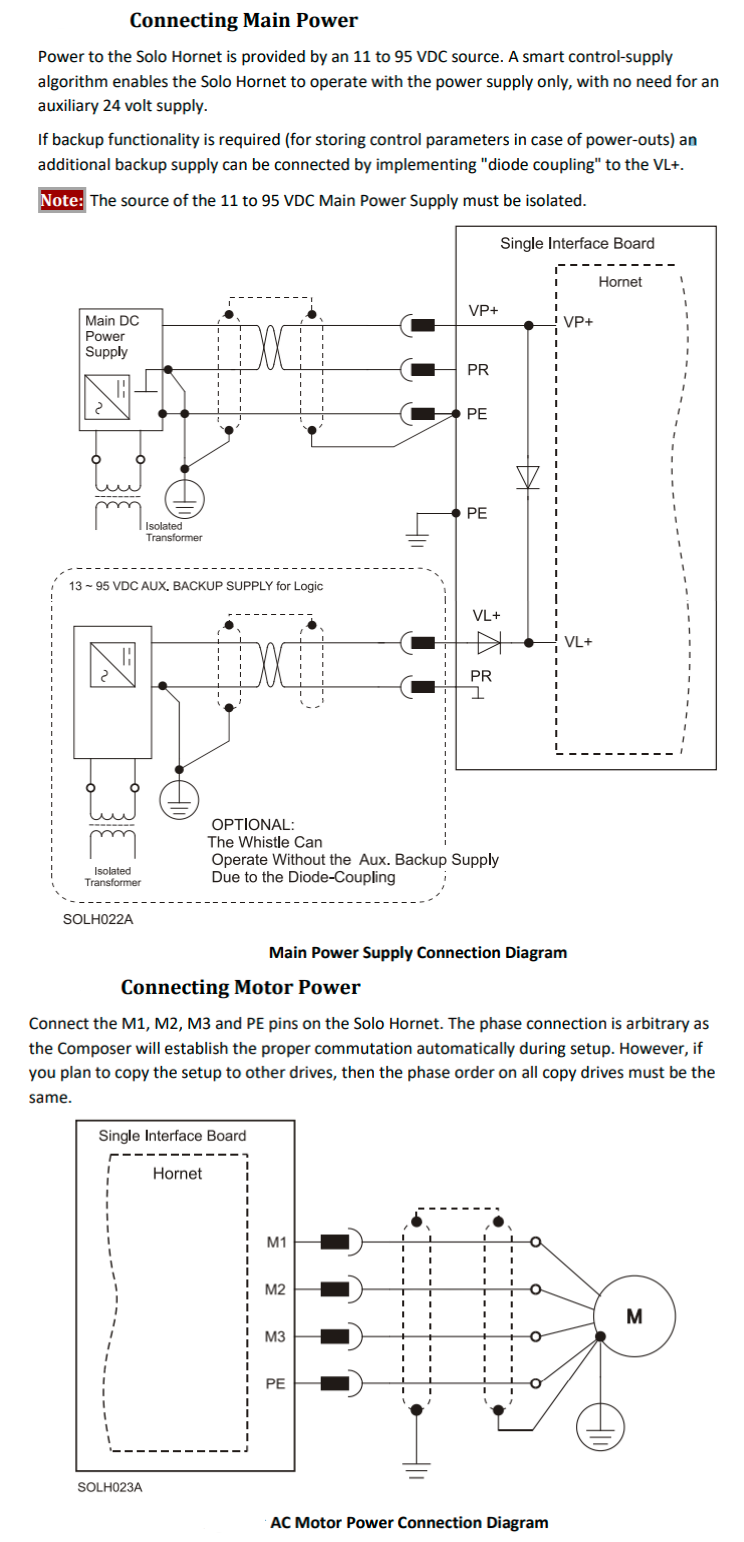

Based on Elmo’s SimplIQ technology, the Hornet is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. With Elmo’s Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on DC power. The Hornet is a PCB mounted device that enables efficient, and cost saving implementation.

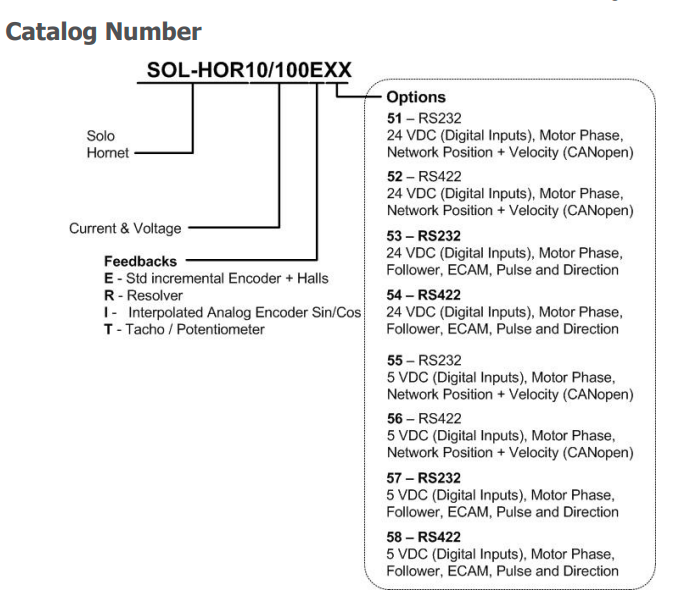

Catalog Number: SOL-HOR10/60E51, SOL-HOR15/100E51, SOL-HOR15/48E51, SOL-HOR15/60E51, SOL-HOR2.5/100E51, SOL-HOR20/100E51, SOL-HOR20/48E51, SOL-HOR20/60E51, SOL-HOR5/100E51, SOL-HOR5/60E51

Installation Guides

Solo Hornet Installation Guide_V.1.006_June 2018

Product Design Files

3D STEP Format
