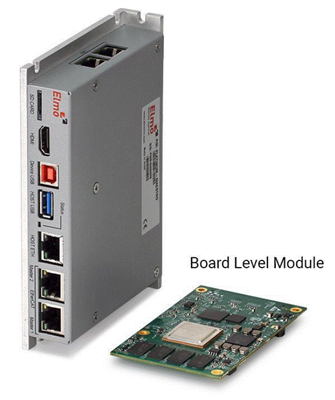

Elmo: Multi Axis Motion Controller - Platinum Maestro P-MAS0N The Ideal Controller for High Performance Multi Axis TechnologiesElmo’s Platinum Maestro is the “Natural’ Evolution from the GOLD Maestro, designed to significantly extend and enhance the power of motion control, connectivity, and performance, while focusing on ease of use. The Platinum Maestro exhibits Cutting Edge Motion Control Technology, a Fast & Simple Machine Development Process with Stable throughput, and lasting reliability. The Platinum Maestro Motion Controller incorporates an integral high-level computational multi-core system with limitless memory (RAM, ROM, and SD-Card), and on-board additional hardware peripherals. Extremely efficient EtherCAT networking, with a cycle time down to 100µs the Platinum Maestro provides precise motion for any project. Platinum Maestro Highlights- “Full Compatibility with the GOLD Maestro.
- Up to 256 Axes of motion
- Advance Multi-axis control, smart motion blending, superimposed motions, real-time updates of target positions, 1D, 2D, 3D high resolution error mapping, ECAM, smart Gearing, High Order Polynomial motion segment and trajectories buildup, PVT, PT, and spline profiling’s will execute any multi-axis motion scenario with high precision and with fastest response.
- “Motion without Programming”using Structural Smart building Blocks (IEC61138 and CPP) allows fast, easy and most efficient realization of machine’s complex functionalities
- Enhanced Field Bus Support including: EtherCAT, Master with Full redundancy support, EtherCAT Slave Network supporting for Network Bridging capabilities. Standard CAN Open Network Support
- More and Faster External Communication Options: Fast Host 10/100/1000 (Giga Bit) Ethernet, USB Device connectivity (480 Mbps) to allow Host computers operate via USB bus USB 3 Host connectivity (5 Gbps) to allow fast devices access (e.g. external cameras）
Downloads:- Hardware video support for HMI Panels (HDMI connectivity)
- Enhanced HW Connectivity, On-board very large CPLD hardware with unlimited hardware interfaces which can be supported via a dedicated option Board connectivity (Serial ports/ encoders/ A2D/ D2A etc.)
- Real Time Clock Option (battery backup)
- Software Performance Enhancementsincluding Real Time, Multi-Core process optimization for maximizing system’s performances. Deterministic User programing based on Real Time Programming, and Multi- Tasking for both IEC-61131-3 and C++.Additional EtherCAT functionalities: Network health management, Network Redundancy, Aliasing, Bridge support. Further enhancing the support for Third party devices.
- Self-sufficient machine motion control – No reliance on connection with PC server. Connect HDMI video screen connector and go.
- Aditional extended I/Os version – for direct connection of sensors, such as feedback devices, to the Platinum maestro.
Platinum Maestro Muti Axis Motion Controller
Elmo: Multi Axis Motion Controller - Platinum Maestro P-MAS0N
Elmo: Multi Axis Motion Controller - Platinum Maestro P-MAS0N
ELMO SimplIQ/ExtrIQ Compliance with StandardsElmo is one of a small number of companies to pass rigorous EtherCAT Conformance Tests.Elmo believes that compliance with industry protocols, like EtherCAT, and standards such as Safety and EMC, is mandatory to guarantee reliable operation of any industrial equipment.Choosing our products with EtherCAT inside provides product engineers with huge advantages like interoperability. EtherCAT is currently the fastest growing open protocol in the motion control industry because it answers your needs for motion control solutions that cut costs and give you flexibility and results.
Why EtherCAT?- EtherCAT is leading as far as unmatched performance.
- The strength of EtherCAT synchronization techniques allows it to be compatible with high-demanding and simpler applications.
- Combined with the correct implementation of both the network protocol and a proper device profile, true distributed motion controlcan now be achieved.
EtherCAT and Your MachineThere is a great difference between a product that uses its own interpretation of a communication protocol and one that meets
a universally accepted standard that provides product engineers with huge advantages such as: - Fast and simple integration with any other compliance product.
- Proper and reliable operation of the network in terms of efficiency, speed, bus load, etc.
- Efficient and fast communication transportation.
- High levels of synchronization and coordination of the nodes.
- Superior cycling, synchronization for optimal multi-axis applications.
- An “open” network for adding, omitting, replacing (including vendors), upgrading nodes of any compliant product.
- Compatibility with future compliant products and solutions.
We Invest, You Benefit! Pursuing official EtherCAT compliance is’nt easy. It: - Is resource consuming (time & money)
- Increases the developing costs
- Prolongs the developing time significantly
- Requires much more processing resources that increases the BOM costs
- Involves a high-level, skilled, experienced and devoted engineering team
- Compels design engineers to ‘stick to the protocol’ during R&D
Elmo believes that complying with EtherCAT, and other protocols, is not only worth the effort, but essential and the only way
for our industry to progress and for all of us to succeed! How can EtherCAT bring you success? Contact us now. Learn more about EtherCAT with our white paper on “multi-axis position control by EtherCAT real-time networking.”
|
|
|
