FANUC: HAND HELD HANDY OPERATOR PANEL UNIT

Part Number: A02B-0259-C221-A
Product Series: A02B-0259.

FEATURES:

Fanuc A02B-0259-C221#A Operator Panel. This hand held controller allows functional control over axes and spindle in a different location to the main machine tool operator station. The CNC hand wheel in pendant form runs with 16i/18i control systems, though ours runs with a 16i-MB controller. This unit interfaces back to the CNC via the I/O interface on the operator. This unit is twinned with the A02B0259C220 interface unit.

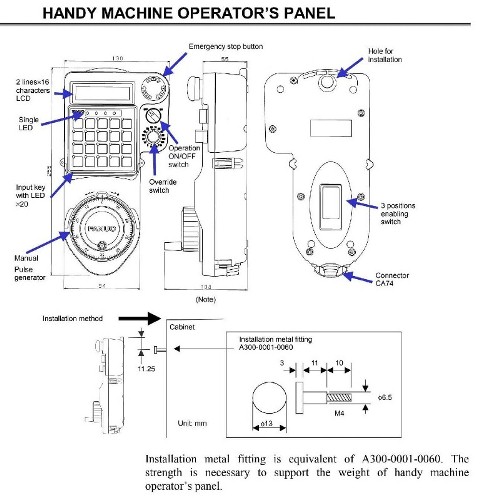

Input keys, operation ON/OFF switch and override switch on the handy machine operator’s panel are read by PMC ladder program. • The position and messages with figures/alphabet/kana are displayed on the LCD by PMC ladder program. • The LEDs near the input keys are turned on/off by PMC ladder program. • The operation with manual pulse generator is possible. • There is an emergency stop button to open emergency stop line in the system. • There is a three positions enabling switch to open emergency stop line in the system. While the enabling switch is available, the emergency stop line is opened with releasing the switch or gripping it tightly. • The enabling switch is enabled in automatically by the situation that the operator exposes himself to danger, example the observation working in the protection cover of cutting part, and the working in the fence for danger area. This switch is not used, when the operator is in a safety situation. • The additional circuit of the emergency stop button and the enabling switch is provided for safety. • The emergency stop button and the enabling switch on the handy machine operator’s panel are parts of emergency stop circuit in this system. CNC and servo amplifier must be connected the emergency stop circuit. • Detachable connection is possible by providing the connection panel on the cabinet..
