FANUC: HORIZONTAL SEPARATE TYPE MDI UNIT

Alternate View

Refurbished.
Core Exchange: Option

Repair: Not offering at this time
All our refurbished and repaired FANUC CNC products are thoroughly inspected and tested by certified repair technicians
Validity: 1 Year (Service Warranty).

Price : $464.60

Availability: Usually Ships in 2 to 3 Weeks
Order #: A02B-0236-C125-TBR

Qty:

Description

Specifications and Drawings

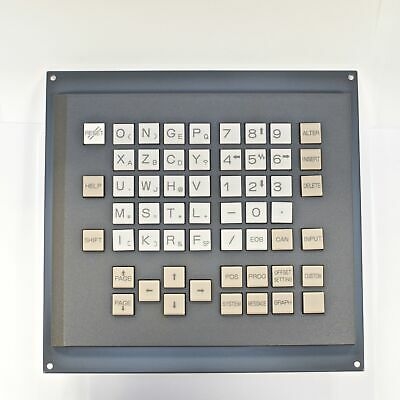

FANUC: HORIZONTAL SEPARATE TYPE MDI UNIT

Part Number: A02B-0236-C125/TBR

Product Series: A02B-0236

Features:

Fanuc A02B-0236-C125/TBR Keyboard MDI Unit is normally fitted with various size monochrome or color LCD displays ranging from 8.4, 9.5, 10, 12 inch fitted a front the i series control system. The A02B0236C125/TBR square shaped MDI keyboard for and is common to Fanuc i series controls: 16iT, 18iT, 21iT systems. This MDI is normally fitted on lathes and has English text on keys.

MDI Units

MDI Units are additional devices that are dedicated to FANUC CNCs. You can use Machine Operator's Panels to perform general machine operations such as moving axes manually in JOG mode, switching between operation modes, starting and stopping programs and adjusting the feed rate.

The Manual Data Input Mode (MDI) is one of the modes your CNC machine can operate in. The idea is to enter g-codes on a line which are executed immediately by the machine–you don't have to write an entire g-code program when a line or two will suffice. ... With MDI, CNC can be quick and dirty just like manual machining.

MDI units with the compact ONG layout have alphanumeric keys that are arranged in a way to simplify the input or modification of part programs. They are available in different sizes and in 2 variants for machining centers or for lathes.

MDI units with the versatile QWERTY layout have the keys arranged like on a conventional PC keyboard, making it easy to adapt to them. Inputting text, eg comments in part programs, descriptive tool names etc. is easier with the familiar QWERTY layout. They are available in different sizes.

All MDI units have operation keys and menu keys which are necessary to input data and switch between CNC menu screens.

Operator Panels

Machine Operator's Panels and MDI Units are additional devices that are dedicated to FANUC CNCs. You can use Machine Operator's Panels to perform general machine operations such as moving axes manually in JOG mode, switching between operation modes, starting and stopping programs and adjusting the feedrate. The acronym "MDI" means manual data input device. An MDI Unit is a keyboard-like device you can use to manually input data into a CNC.
