FANUC: POWER MATE D CONTROL
Part Number: A02B-0166-B501
Product Series: A02B-0166

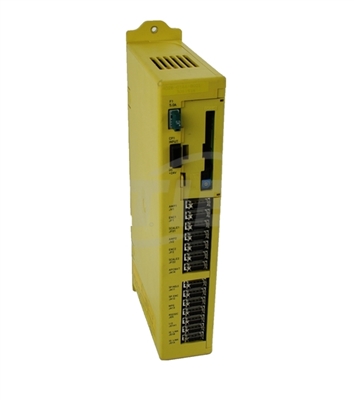

Fanuc A02B-0166-B501 Control. This Power Mate Model-D is the complete CNC control system which includes the A20B-1004-0960 power supply unit. DNC do not actively support Fanuc Power Mate controls at this moment.
FEATURES:
The Power Mate-D and Power Mate-F are high-performance CNCs developed to provide the

outstanding speed, precision and efficiency demanded to accomplish the machining of the future

and all in a remarkably compact machine configuration. They achieve a substantial boost in

machining productivity thanks to their high-speed, high-precision. digital $ervo system, high-speed

PMC (Programable Machine Control) functions, and abundant CNC functions made poss.ible

through the adoption of a high-speed microprocessor.

A high-speed micro processor and many custom LSls have been employed fqr the control circuit,

successfully decreasing the number of circuit elements to the greatest extent. Therefore, its

reliability is much higher, and a small control unit with a power supply unit can be easily built into

the magnetic power cabinet on the machine.Construction of the control unit is of panel mount type

which allows easy construction of an integrated system of machinery with an electrical uni,t. A

simple, heavy current circuit on the machine also allows construction of more compact, united

systems of machine and electrical units, because a PMC (Programmable Machine Control) can be

in corporated into the contra! unit. , _ < , High-speed, high-accuracy machining can be done since the digital servo having a high-speed

processor and custom LSls exclusively employed for it iS used in the control circuit of ttie servo

system.

Power Mate-D and Power-Mate-F are combined with the C-series servo amplifier.

As for the control motor, an absolute position detector of a full electronic type can be fitted on the

detector for an AC servo motor.

No operation of reference point return is required when power is supplied, by employing an

absolute position detector of full electronic type. I .

Therefore, restarting of operation after cut-off the power supply can be easily done.

The Power Mate-D and Power Mate-F can only be used with serial p&e coders.

The spindle motor for-CNC is an AC spindle motor which is small and of high power.

High-speed, high-accuracy machining can be done since the motor is digitally controlled.

CONTROLLER
FANUC SERIES POWER MATE D
POWER MATE D CONTROL
5 AMP
CNC

Special Note: MUST LOAD ALL PARAMATERS, PROGRAMS AND LADDER!
