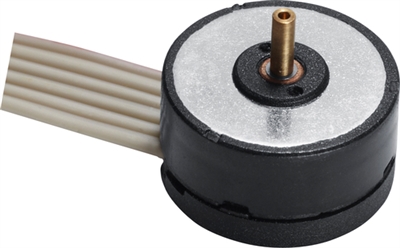

Flat DC-Micromotors: Series 1506...SR IE2-8

Precious Metal Commutation with integrated Encoder (Diameter: 15 mm, Length: 7.8 mm)

DC-Motors

FAULHABER DC-Micromotors differ from conventional iron core DC motors in that the rotor consists of a self-supporting, skew wound copper coil.

Among the inherent properties of this pioneering design are an extremely low rotor inertia and zero cogging or preferred rotor position. These factors help to define the uniquely high, power to volume ratio of the motors as well as their extremely dynamic performance characteristics.

Flat DC-Micromotors

FAULHABER Flat DC Micromotors are based on a unique, axial air-gap, self-supporting, ironless rotor winding which provides all the advantages of a traditional coreless DC micromotor but in a very thin package.

They are also available with a very thin profile integrated optical encoder for higher precision speed and position control applications.

Features and benefits:

Model No.: 1506N003SR IE2-8, 1506N006SR IE2-8, 1506N012SR IE2-8
