FAULHABER: Linear DC-Servomotors LM1247-080-12
FAULHABER: Linear DC-Servomotors LM1247-080-12

Faulhaber
833-9MOTIONinquiry@e-motionsupply.com.
Price : $1,050.00


Availability: Lead Time is 20 Business Days
Order #: LM1247-080-12
Qty:


Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

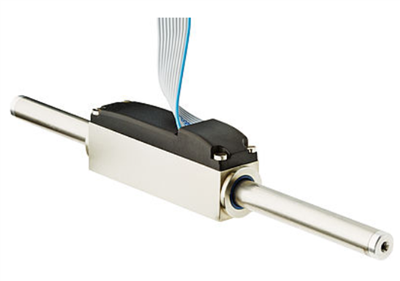

FAULHABER: Quickshaft® Linear DC-Servomotors LM1247-080-12

QUICKSHAFT® Linear DC-Servomotors bring linear motion to new dimensions. These high performance, miniature, linear motors consist of a solid stator housing and coil assembly and a multi-pole magnetic force rod.

High power magnets help the motor achieve its excellent force and dynamic speed performance.

Specifications:

  • Continuous Force (N): 3.6

  • Peak Force (N): 10.7

  • Stroke Length (mm): 20 ... 120

  • Repeatability (µm): 80

  • Maximum Precision (µm): 200 - 300

  • Maximum Speed (m/s): 3.2

Model No.: LM 1247-020-12, LM 1247-040-12, LM 1247-060-12, LM 1247-080-12, LM 1247-100-12, LM 1247-120-12
