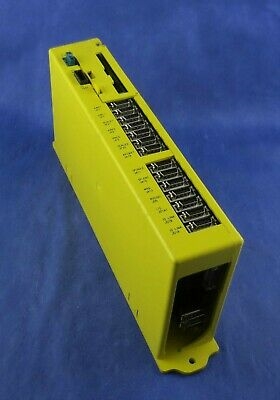

FANUC: POWER MATE D CONTROL
Part Number: A02B-0166-B001
Product Series: A02B-016

Model #: A02B-0166-B001

Category: Controller

Pwer Mate Controller

Model D..

Power mate is a small, compact unit, It combines advanced electronic control functions

Power Mate, GE Fanuc brings the ... speed interfaces with the CNC, fast processing times, and two ... Control. Power Mate can provide a +/- 10 volt speed signal to a with the Fanuc digital servo drive used in hundreds of thousands of applications around the world. The result: Power Mate Model

With GE Fanuc or similar ... to write and edit part programs as well as enter.

Power mate opens up new possibilities for single axis control, auxiliary axis control, and grouped installations such a transfers lines.

Power Mate Model A is a true CNC, Offering precise servo control plus high-speed machine control (PMC)
The Power Mate-D and Power Mate-F are high-performance CNCs developed to provide the

outstanding speed, precision and efficiency demanded to accomplish the machining of the future

and all in a remarkably compact machine configuration. They achieve a substantial boost in

machining productivity thanks to their high-speed, high-precision. digital $ervo system, high-speed

PMC (Programmable Machine Control) functions, and abundant CNC functions made possible

through the adoption of a high-speed microprocessor.

A high-speed micro processor and many customers have been employed for the control circuit,

successfully decreasing the number of circuit elements to the greatest extent. Therefore, its

reliability is much higher, and a small control unit with a power supply unit can be easily built into

the magnetic power cabinet on the machine. Construction of the control unit is of panel mount type

which allows easy construction of an integrated system of machinery with an electrical unit. A

simple, heavy current circuit on the machine also allows construction of more compact, united

Special Note: MUST LOAD ALL PARAMATERS, PROGRAMS AND LADDER
