Faulhaber: Brushless DC-Servomotors 2232...BX4 Series

4 Pole Technology

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Brushless DC-Servomotors

FAULHABER Brushless DC-Servomotors are designed for demanding applications where compact size and high performance are key. They are available in high torque 4-Pole or high power 2-Pole versions

FAULHABER specializes in compact functional integration and many motors are available with integrated drive electronics, encoders, and analog hall sensors, which can in many cases replace the need for an encoder.

Features and Benefits:

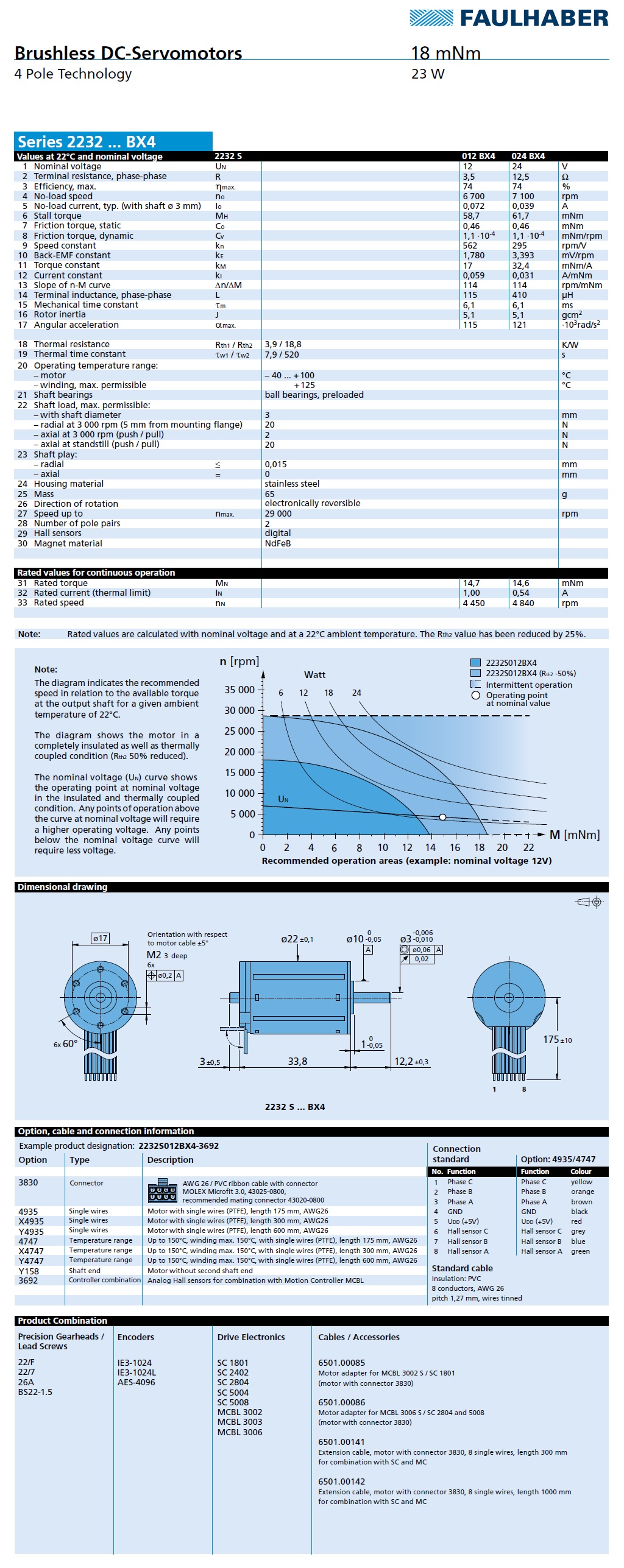

2232 BX4 Specifications:

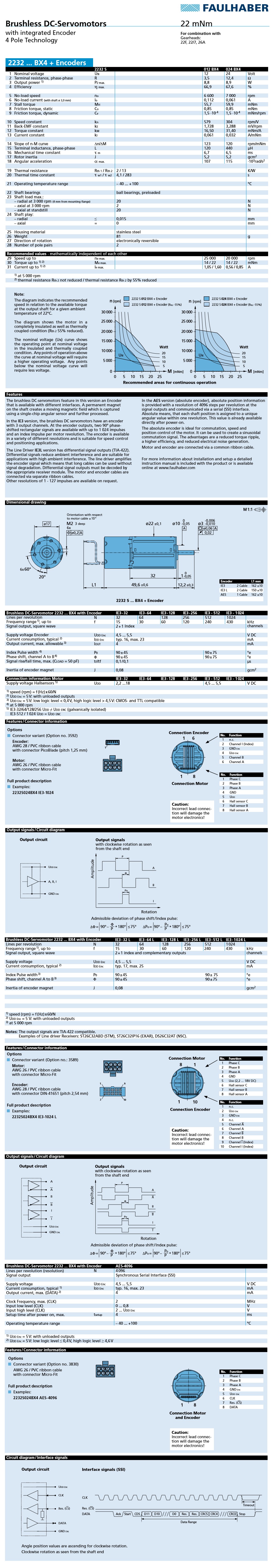

2232 BX4 AES Specifications:

2232 BX4 IE3 Specifications:

2232 BX4 IE3L Specifications:

Series: 2232 BX4, 2232 BX4 AES, 2232 BX4 IE3, 2232 BX4 IE3L

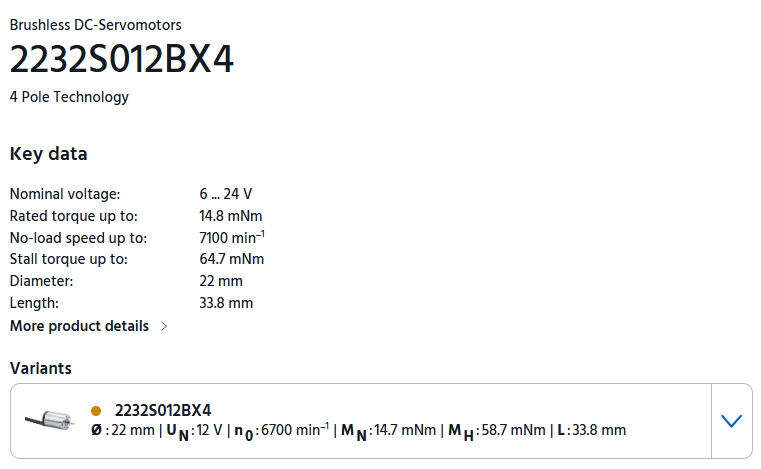

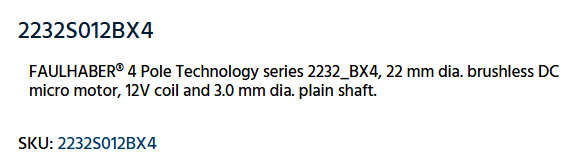

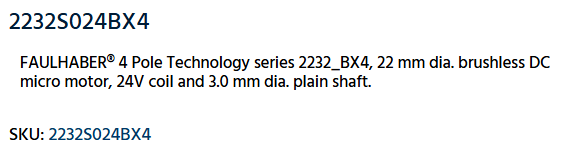

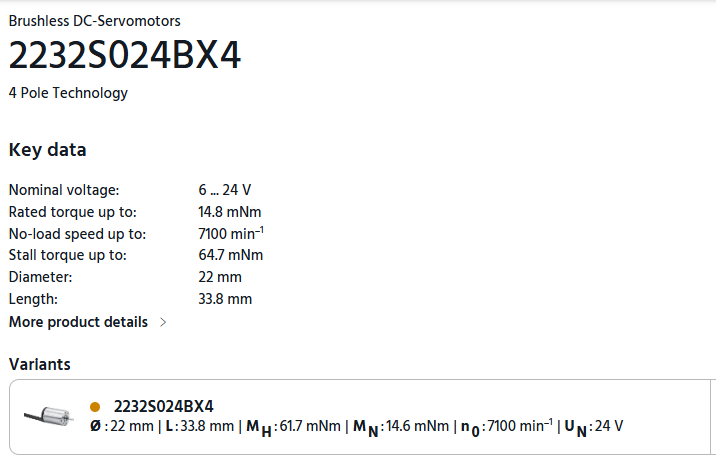

Model No.: 2232S012BX4, 2232S024BX4
