Faulhaber: Speed Controllers SC1801S-3530
Faulhaber: Speed Controllers SC1801S-3530

Alternate View
Faulhaber
The SC 1801 S 3530 is a speed controller, and the 6501.00097 is a programing adapter that plugs in so one could alter settings in the drive.
Price : $275.00

Price with Selected Options: $275.00


Availability: 1-2 weeks lead time
Order #: SC1801S-3530


programing adapter: 		6501.00097 [Add $159.00]

Qty:

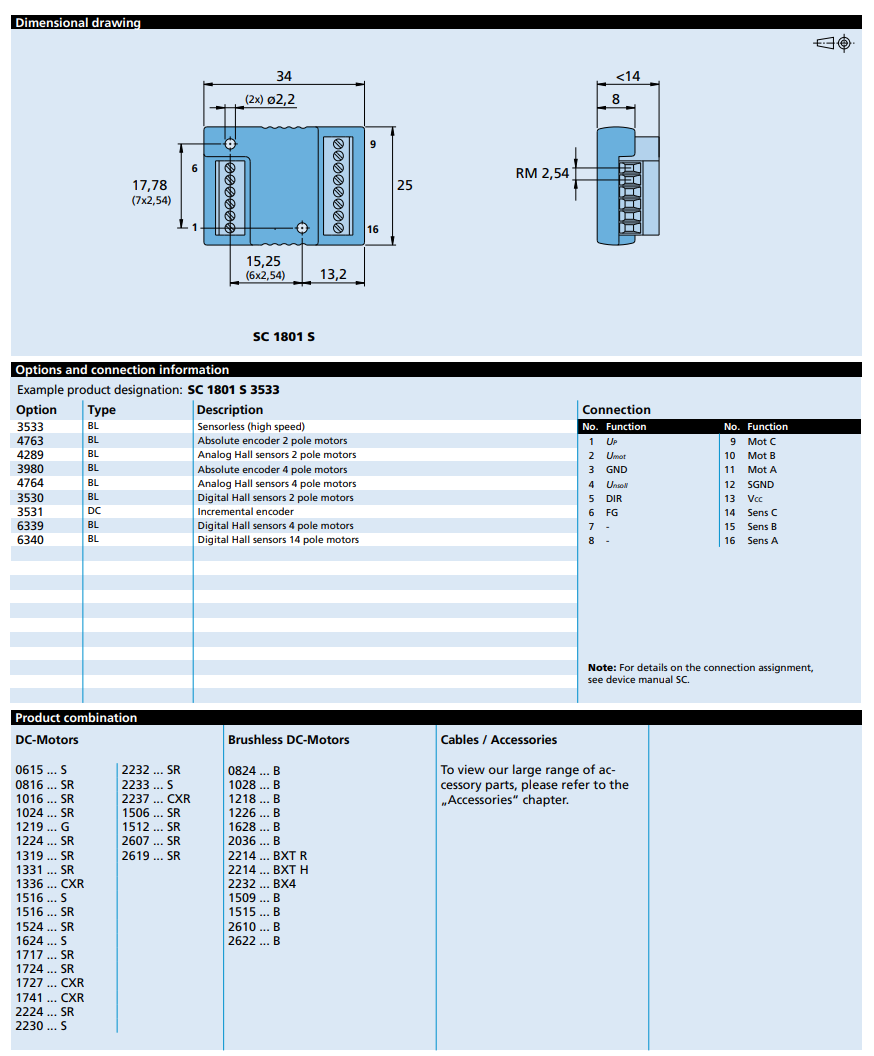

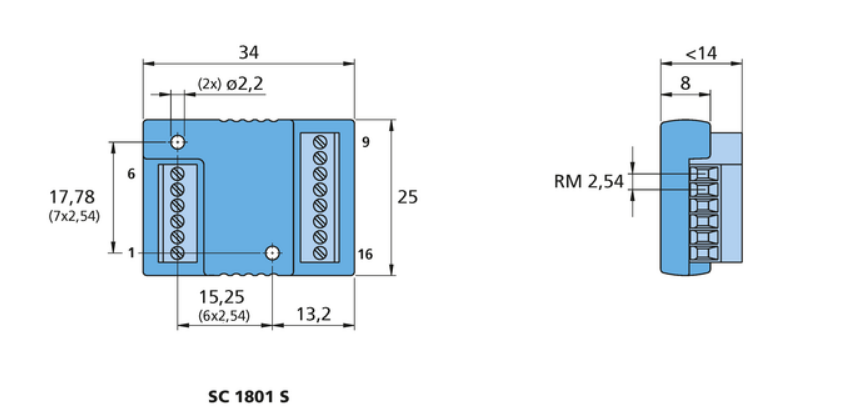

Description Specifications and Drawings

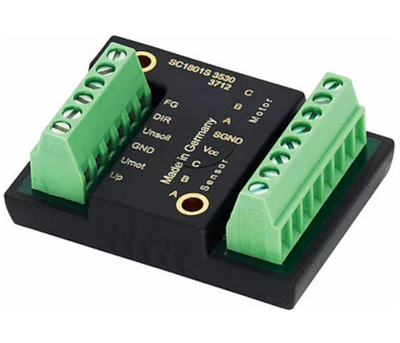

Faulhaber: Speed Controllers SC1801S-3530

2-Quadrant PWM configurable via PC, Digital Hall Sensors 2 pole motors


FAULHABER Speed controllers are specifically designed to get the most out of FAULHABER DC and Brushless Motors.

They are compact and easy to use and provide precise and efficient speed control. The individual drive parameters are simple to adjust via a computer and the free FAULHABER Motion Manager software.

Features and Benefits:

  • Compact design

  • Precise speed control

  • Flexible configuration for different motor types

  • Configuration via USB interface adapter

  • Easy to use Motion Manager software

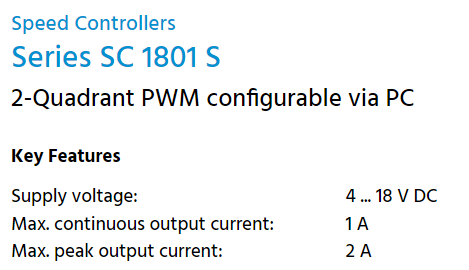

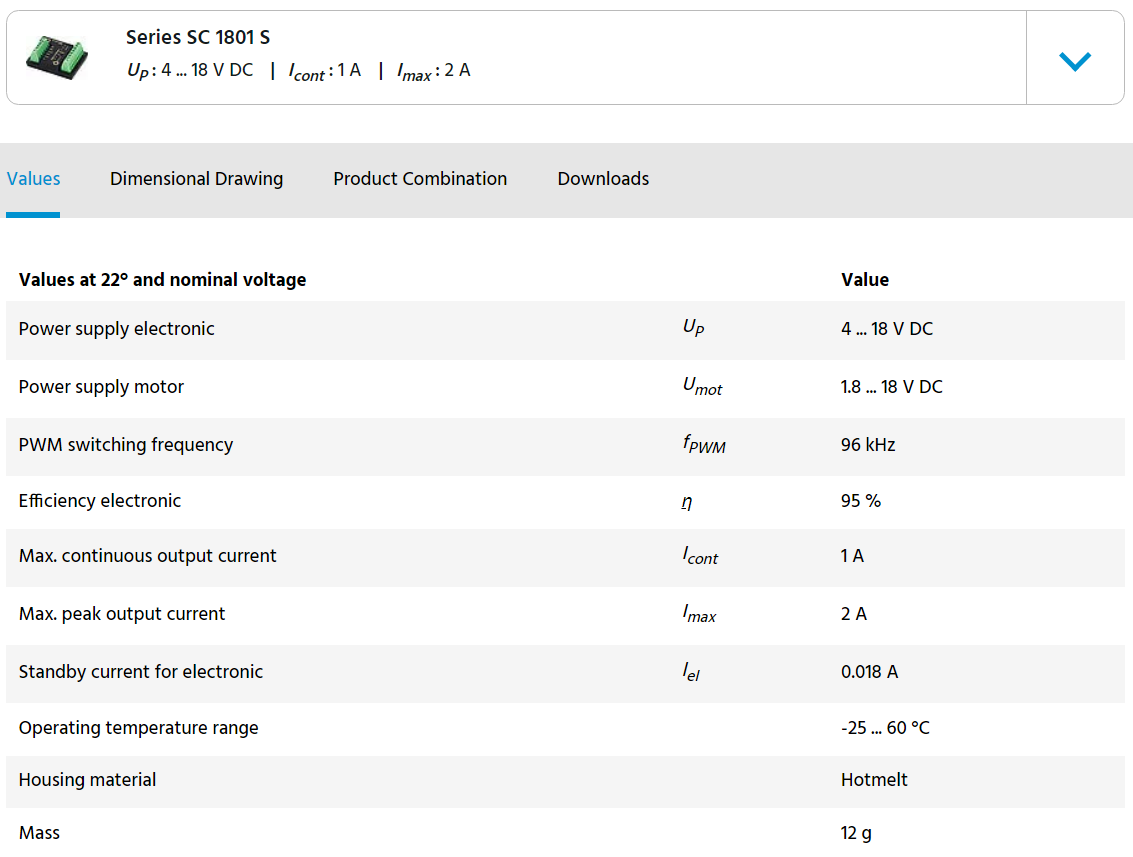

Specifications:

  • Control Type: 2

  • Functionality: 2-Q/PWM

  • Current Control: No

  • Speed Control: Yes

  • UB: 4 ... 18

  • Imax: 2



Share your knowledge of this product. Be the first to write a review »
