Heidenhain: Absolute Angle Encoder 1253381-01 (RCN 280)
Heidenhain: Absolute Angle Encoders 1253381-01 (RCN 280)

Price : $7,356.00


Availability: 10 weeks
Order #: 1253381-01
Qty:

Description Specifications and Drawings


Heidenhain: Absolute Angle Encoder 1253381-01 (RCN 280)

Absolute angle encoder (singleturn) with integral bearing and integrated stator coupling

The term angle encoder is typically used to describe encoders that have an accuracy of better than ± 5“ and a line count above 10000. In contrast, rotary encoders are encoders that typically have an accuracy of more than ± 10“. Angle encoders are found in applications requiring precision angular measurement to accuracies within several arcseconds.


Examples:

  • Rotary tables on machine tools

  • Swivel heads on machine tools

  • C-axes of lathes

  • Measuring machines for gears

  • Printing units of printing machines

  • Spectrometers

  • Telescopes


Angle encoders with integral bearing, hollow shaft and integrated stator coupling

Because of the design and mounting of the stator coupling, it must only absorb that torque caused by friction in the bearing during angular acceleration of the shaft. RCN, RON and RPN angle encoders therefore provide excellent dynamic performance. With an integrated stator coupling, the stated system accuracy also includes the deviations from the shaft coupling.


Further advantages:

  • Compact size for limited installation space

  • Hollow shaft diameters up to 100 mm for leading power cables, etc.

  • C axes on lathes

  • Simple mounting


Angle encoders with integral bearing, for separate shaft coupling

ROD angle encoders with solid shaft are particularly suited to applications where higher shaft speeds and larger mounting tolerances are required. The shaft couplings allow axial tolerances of ± 1 mm.


Angle Encoders with Integral Bearing

HEIDENHAIN angle encoders with integral bearing are characterized in particular by very high system accuracy. The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components.

The integrated stator coupling in the RCN/RON/ECN series encoders guarantees lowest possible error from the effect of tolerances in the shaft coupling. All angle encoders with integral bearings feature shaft seals that ensure resistance to contamination (IP64 protection). These encoders enjoy an entire spectrum of possible applications in machine tools, measuring machines, telescopes, printing machines and many other areas.


RCN Features:

  • Absolute measuring method

  • Large hollow shaft diameter (up to 100 mm)

  • Integrated stator coupling

  • Compact size for limited installation space

  • System accuracy includes the deviation caused by the shaft connection

  • Outstanding dynamic response

  • Simple installation


Typical field of application

  • Rotary tables

  • Swivel heads


RCN 200
• Integrated stator coupling
• Hollow through shaft ¬ 20 mm • System accuracy: ±6” and ±8”

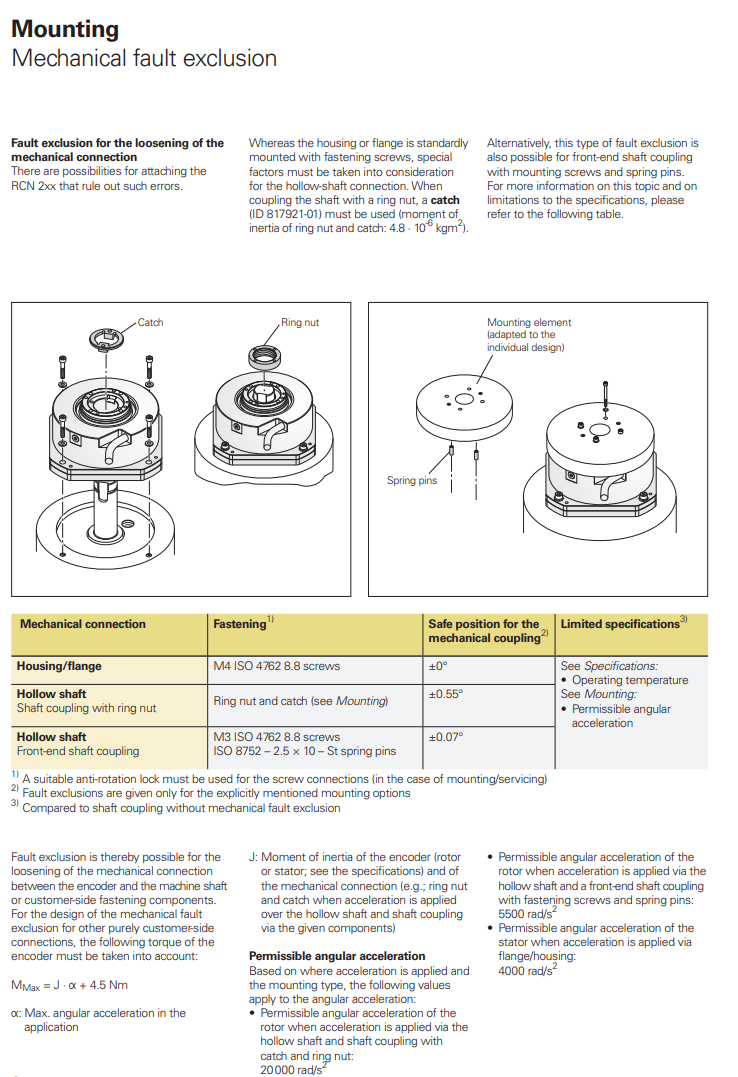

• Fault exclusion for loosening of the mechanical connection is possible

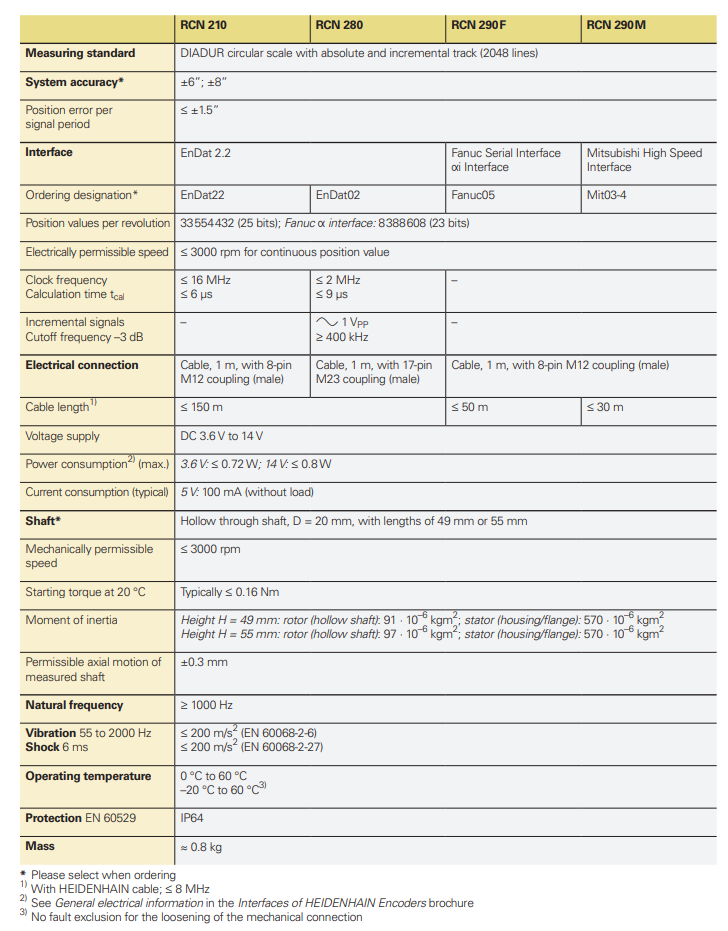

Options: RCN280 / ID:1253381-01

ID1253381-01
Part NameRCN 280
Description
Absolute angle encoder (singleturn) with integral bearing and integrated stator coupling
System accuracy:          ±8.0''
Data interface:           EnDat02
Positions per revolution: 33554432
Output code:              Binary
Line count:               2048
Output signal:            ~1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply:             3.6 V ... 14 V
Shaft:                    Hollow through shaft for
                          axial clamping, diameter
                          20 mm
Length of the shaft:      49 mm
Flange version:           Rectangular flange with
                          85 mm centering collar,
                          4 mounting holes on 100
                          mm hole circle Ø,
                          aluminum
Degree of protection:     IP64 (EN60529)
Operating temperature:    -20/+60 °C
Max. mechanical
permissible
speed/rotational speed:   3000 1/min

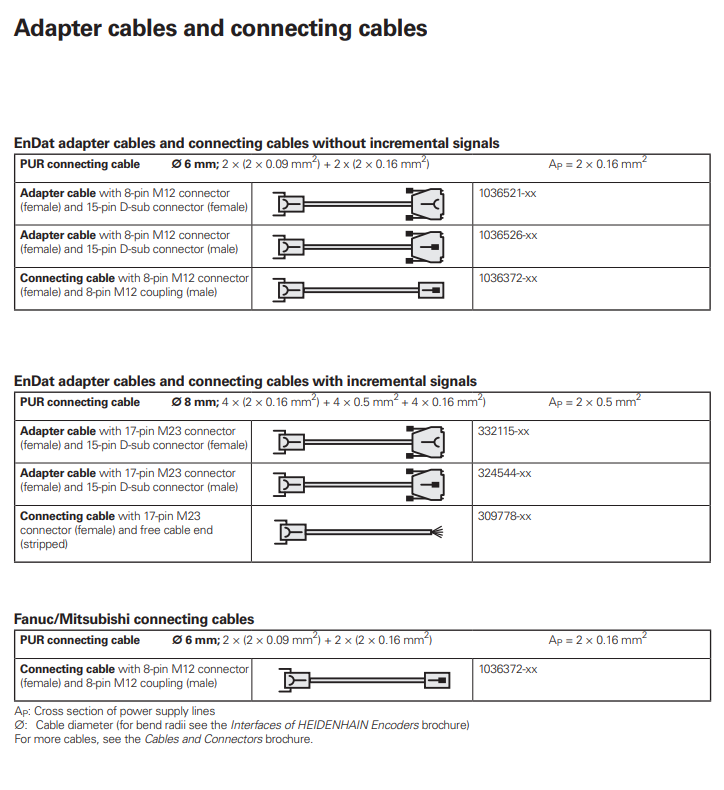

Electrical connection:    Coupling M23, male,
                          17-pin
Pin configuration:        D512235
Connecting direction:     tangential
Cable length:             1.00 m
Cable type:               PUR Ø 6.0 mm
Special characteristics,
rotational encoders:      none
