Heidenhain: Absolute Length Gauge HEIDENHAIN-ACANTO 680985-02 (AT 3018)
Heidenhain: Absolute Length Gauges ACANTO 680985-02 (AT 3018)

Heidenhain

833-9MOTION inquiry@e-motionsupply.com.
Price : $1,412.00


Availability: 1-2 Business Days
Order #: 680985-02
Qty:

Description Ordering Information Specifications and Drawings


Heidenhain: Absolute Length Gauge HEIDENHAIN-ACANTO 680985-02 (AT 3018)

Length gauges from HEIDENHAIN offer high accuracy over the entire measuring range, are mechanically rugged, and can be used in a great variety of applications.

They have a wide range of applications in production metrology, in multipoint inspection stations, measuring equipment monitoring, and as position measuring devices.


Robust Design

HEIDENHAIN length gauges are built for an industrial environment. They feature consistently high accuracy over a long period of time as well as high thermal stability. They can therefore be used in production equipment and machines.


High Accuracy

The high accuracy specified for HEIDENHAIN length gauges applies over the entire measuring length. Whether the part measures 10 mm or 100 mm, its actual dimension is always measured with the same high quality. The high repeatability of HEIDENHAIN length gauges comes into play during comparative measurements, for example in series production.


Large Measuring Ranges

HEIDENHAIN length gauges are available with measuring ranges from 12 mm to 100 mm, so that you can measure very different parts in one measuring setup and avoid frequently changing setups with expensive gauge blocks or masters.


ACANTO Series

Features:

  • High degree of protection: Protection up to IP67

  • Compact size: Station width of 15 mm

  • EnDat 2.2 interface: Additional information available on length gauge status (diagnostics, warnings, alarms)

Absolute measuring method:

  • The position value is available immediately after switched on

  • No counting error

  • No referencing needed—measured value is always available


Specifications:

  • Measuring range:12 or 30 mm

  • System accuracy: ± 2 µm

  • Plunger actuation: By measured object or pneumatic

  • Protection: By measured object, IP67 Pneumatic, up to IP67

  • Interface: EnDat 2.2

ID680985-02
Part NameAT 3018
Description
AT 3018

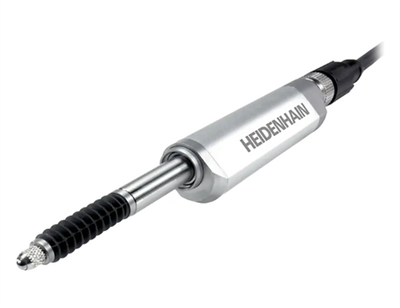

Absolute length gauge HEIDENHAIN-ACANTO
Plunger actuation:      extended by spring force
Measuring length:       30 mm
Type of guide:          sliding glide
Accuracy grade:         2.0 µm
Electrical connection:  Flange socket M12, male,
                        8-pin
Pin configuration:      D532351
Data interface:         Synchronous serial EnDat
                        2.2 without incremental
                        signals
Measuring step:         368 nm
Power supply:           3.6 V ... 14 V
Degree of protection:   IP67 (EN60529)
Operating temperature:  +10/+40 °C
