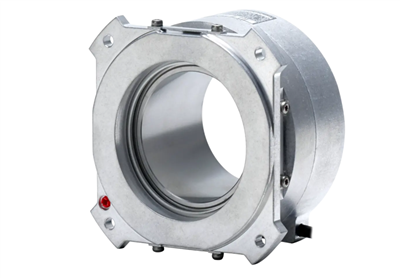

Heidenhain:Angle Encoder ECN 2000 Series

Order #: ECN-2000

Description

Ordering Information

ECN 2000 series

Absolute angle measuring devices with attached stator coupling

system accuracy ±10”
Through hollow shaft ∅ 50 mm
Position values per revolution: 25 bits
Interfaces: EnDat 2.2 , Fanuc Serial Interface αi, Mitsubishi high speed interface
Compact with large hollow shaft
Despite a hollow shaft of ∅ 50 mm, the angle measuring devices of the ECN 2000 series are very compact and therefore also suitable for tight installation conditions. The shaft to be measured is connected directly to the shaft of the angle measuring device using the attached stator coupling.
Medium accuracy
The angle measuring devices of the ECN 2000 series are characterized by a line count of 2048 and a resolution of 25 bits. In combination with the system accuracy of ±10 " , they are suitable for rotary axes with medium accuracy requirements.
