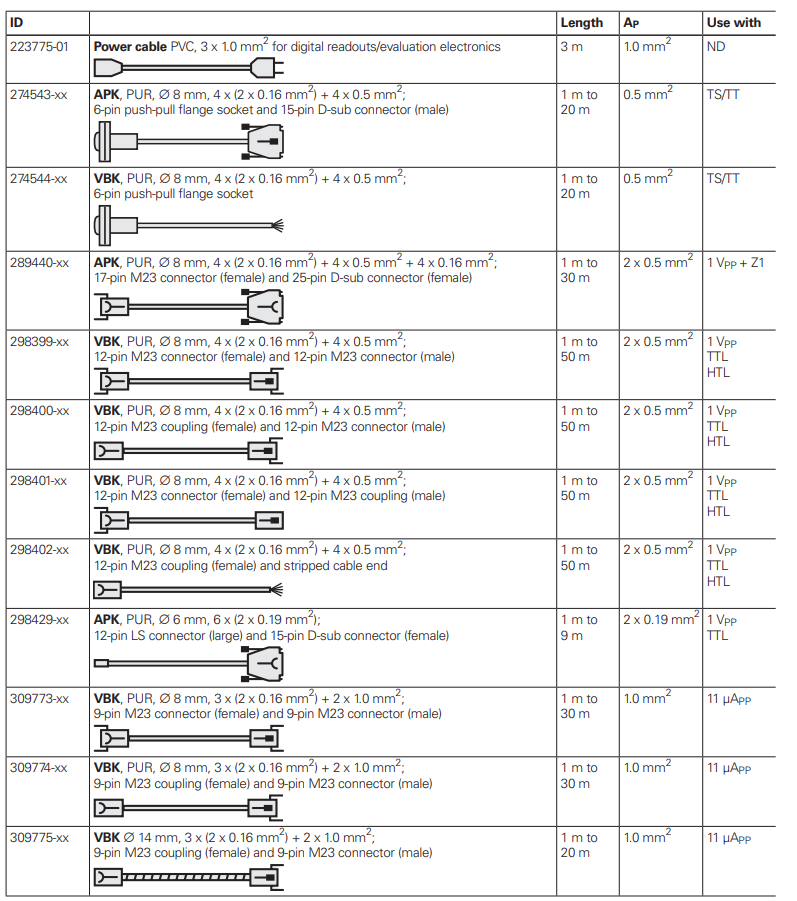

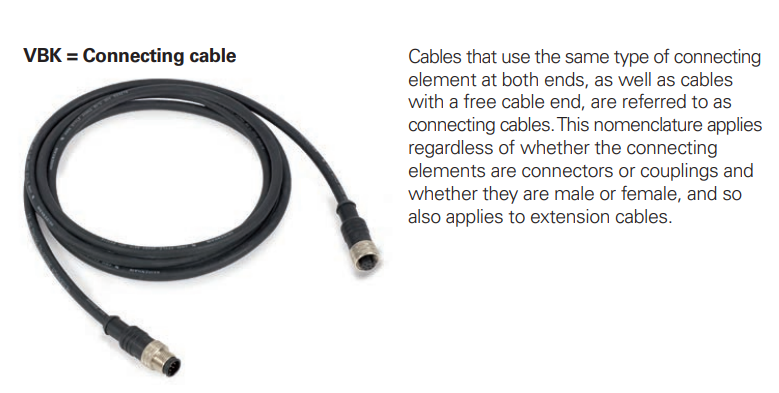

Heidenhain: Connecting Cables (VBK Series)

ID#: 298399-01, 298399-02, 298399-03, 298399-05, 298399-07, 298399-08, 298399-10, 759314-01, 355397-03


ID: 355397-03

Connecting Cable for encoder connection
Cable type:             PUR Ø 6.0 mm
Cable design:           6x2xAWG28+4x0.14
Cable length:           3.00 m
Encoder side:           D-sub connector, 2-row,
                        without locking screws,
                        female, 15-pin
Side of subsequent      D-sub connector, 2-row,
electronic:             with locking screws, male,
                        15-pin
Special characteristics,with wiring for limit
connecting cable:       switchs
