Heidenhain: Digital Readout POSITIP 8016 (ID: 1089176-01)

Digital Readouts for Milling machines, Drilling machines, and Lathes with up to six axes

Digital readouts for manual machine tools increase your productivity. You save time, increase the dimensional accuracy of the finished workpiece and enjoy user friendly operation. It plays no role whether you have equipped a new or used machine with a digital readout. HEIDENHAIN digital readouts can easily be retrofitted to any model of machine or type of equipment, whatever the application and number of displayed axes. Practice-oriented functions and cycles are available for various applications. The distance-to-go display feature with graphic positioning aid allows you to approach the next nominal position quickly and reliably simply by traversing to a display value of zero. And POSITIP speeds up small-batch production—repetitive machining sequences can be saved as a program.

Precise manufacturing made easy: Together with linear encoders from HEIDENHAIN, the digital readouts measure the axis movements directly. The
backlash caused by mechanical transfer elements such as lead screws, racks and gears therefore has no influence.

POSITIP 8016 | The programmable readout for up to six axes

The POSITIP 8016 is a versatile display unit designed primarily for milling machines, drilling and boring machines and lathes with up to six axes. A separate I/O unit provides switching input/outputs for simple tasks in automation.

Hesis »

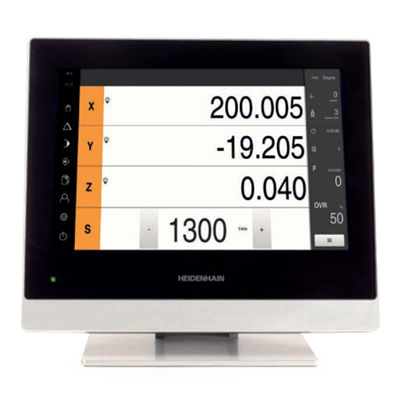

POSITIP 8016
Digital readout for manual operated machine tools
Application:              milling/turning
Display:                  12.1-inch, color, wide
                          screen (16:10),
                          resolution 1280 x 800
Number of encoder inputs: 4
Number of optional encoder
inputs:                   2
Encoder interface:        EnDat 2.2/1 Vpp
Encoder connection:       Built-in D-sub connector
                          without housing, 2-row,
                          female, 15-pin
Switching function:       available, to be enabled
                          via SW options
USB interface(s):         4 x USB 2.0 Hi-Speed
                          (Type A), maximum
                          current 500 mA
Network interface(s):     1x Ethernet 10/100
                          Mbit/1 Gbit, 1x Ethernet
                          1 Gbit
Touch probe interface:    Universal HEIDENHAIN
                          interface
Fastening type:           VESA MIS-D, 100
Application software:     Manually operated
                          machine tool
Software options:         optional expandable
                          (depending on the
                          software version)
