Heidenhain: Interpolation and Digitizing Electronics EXE 102

Interpolation and digitizing electronics for encoders with 11 µAPP signals

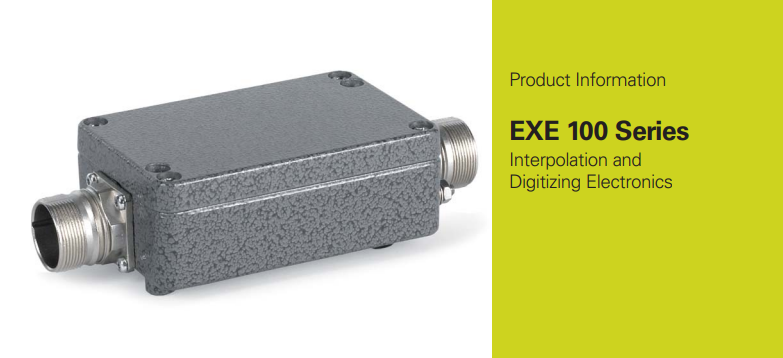

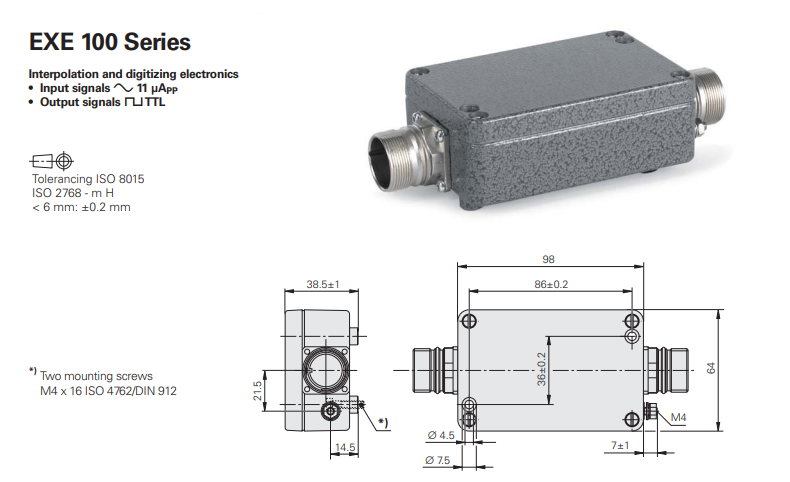

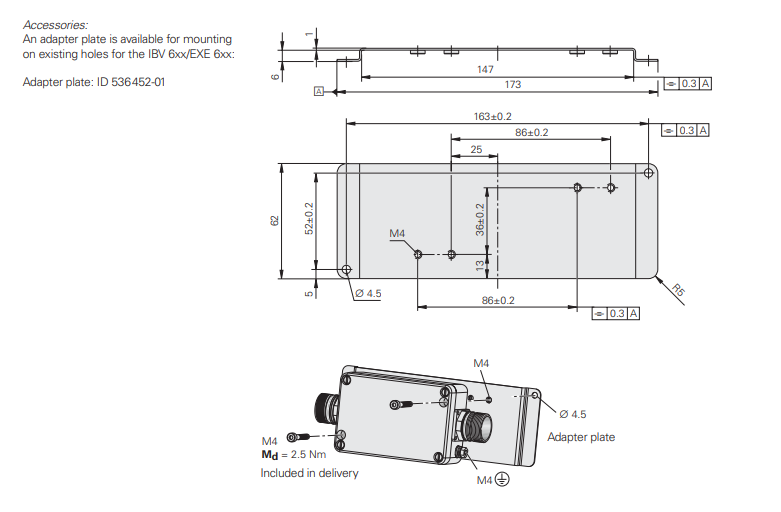

The EXE 101 is an interpolation and digitizing electronics unit in a sturdy cast-metal housing.
It is suited for use with HEIDENHAIN linear and angle encoders that provide sinusoidal current signals
(11 µAPP). The output signals of the EXE have TTL levels with 10-fold interpolation.

EXE 102 (ID:536421-30)
Interpolation and digitizing electronics for
encoders with 11 µAPP signals

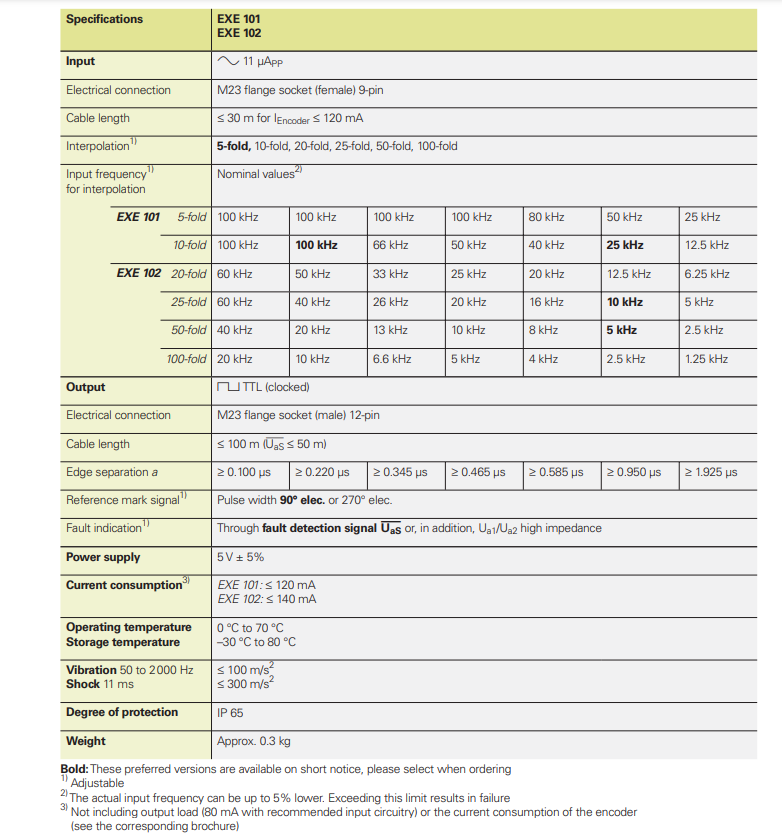

Input signal:            sinusoidal current
                         signals (11 µApp)
Electrical connection:   Flange socket M23,
                         female, 9-pin
Output signal:           Square-wave signals, TTL
                         levels with 25-fold
                         interpolation
Electrical connection 2: Flange socket M23, male,
                         12-pin
Max. scanning frequency: 10.00 kHz
Reference mark:          90°
Fault detection signal:  for disturbance LOW
Reversal hysteresis:     with
Power supply:            5 V (+-5 %)

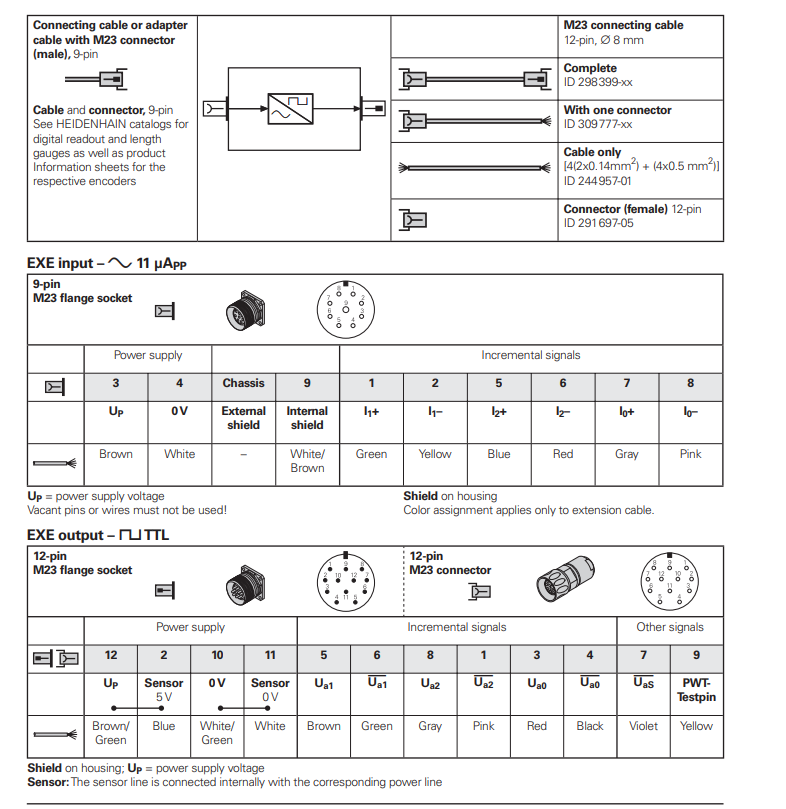

Pin configuration:       D295051
Pin configuration 2:     D294999
Degree of protection:    IP65 (EN60529)
Operating temperature:   0/+70 °C
Special characteristics,
IBV/EXE/IDP:             none
