Heidenhain: Interface Electronics IBV 600 (ID: 277236-01)
Heidenhain: Interpolation and digitizing electronics for encoders with 1 VSS signals IBV 600 (ID: 277236-01)


Price : $759.00


Availability: 12 weeks
Order #: 277236-01
Qty:

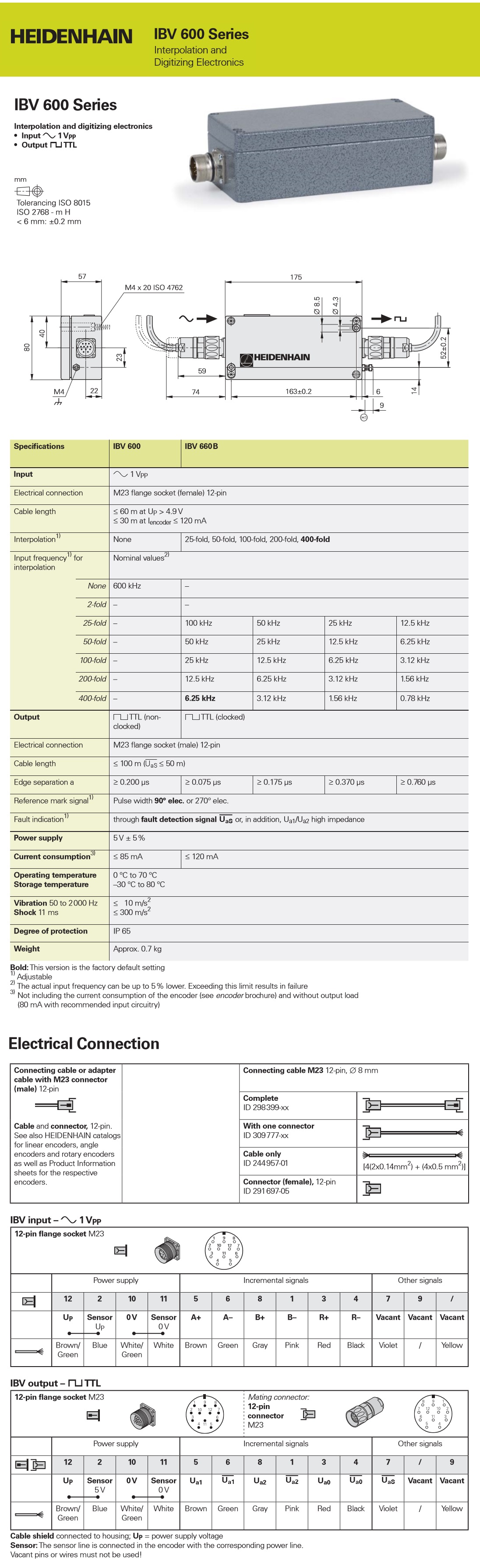

Description Ordering Information Specifications and Drawings


Heidenhain: Interface Electronics IBV600

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.


Interpolation and Digitizing Electronics:

  • Input Signals: 1 VPP

  • Output Signals: IBV 600 [TTL (Non-Clocked)], IBV 660 B [TTL (Clocked)]


IBV 600 (ID: 277236-01)
Interpolation and digitizing electronics for
encoders with 1 VSS signals
Electrical connection:   flange socket, female
                         12-pin
Output signal:           square-wave signals
                         TTL levels
Electrical connection 2: flange socket, male
                         12-pin
Max. scanning frequency: 600.00 kHz
Reference mark:          90°
Fault detection signal:  for disturbance LOW
Power supply:            5V+-5%
Degree of protection:    IP 65 (EN 60529)
Operating temperature:   0/+70 °C
