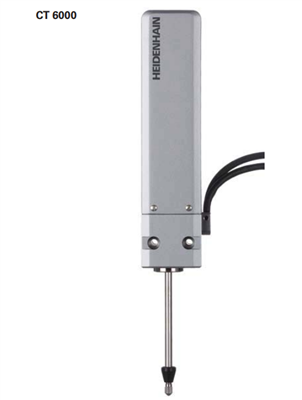

Heidenhain: Incremental Length Gauge HEIDENHAIN-CERTO 653230-01 (CT 6002)

Length gauges from HEIDENHAIN offer high accuracy over the entire measuring range, are mechanically rugged, and can be used in a great variety of applications.

They have a wide range of applications in production metrology, in multipoint inspection stations, measuring equipment monitoring, and as position measuring devices.

Robust Design

HEIDENHAIN length gauges are built for an industrial environment. They feature consistently high accuracy over a long period of time as well as high thermal stability. They can therefore be used in production equipment and machines.

High Accuracy

The high accuracy specified for HEIDENHAIN length gauges applies over the entire measuring length. Whether the part measures 10 mm or 100 mm, its actual dimension is always measured with the same high quality. The high repeatability of HEIDENHAIN length gauges comes into play during comparative measurements, for example in series production.

Large Measuring Ranges

HEIDENHAIN length gauges are available with measuring ranges from 12 mm to 100 mm, so that you can measure very different parts in one measuring setup and avoid frequently changing setups with expensive gauge blocks or masters.

Heidenhain CERTO series

• Incremental length gauges for measuring stations and multipoint inspection equipment
• Interferential scanning principle
• Very high system accuracy of down to ±0.03 µm
• Well-matched ball-bearing guide for very high quality
• Defined thermal behavior
• Large measuring ranges of up to 60 mm
• Interface: 11 µAPP

CT 6002 (ID: 653230-01)
Incremental length gauge HEIDENHAIN-CERTO
Plunger actuation:      Extended by gravity
Measuring length:       60.00 mm
Reference mark position:1.7 mm
Accuracy grade:         0.1 µm
Electrical connection:  D-sub connector, 2-row,
                        with locking screws, with
                        integrated electronics,
                        coated, male, 15-pin
Pin configuration:      D330979
Cable type:             PUR Ø 4.5 mm
Cable length:           1.50 m
Output signal:          sinusoidal current signals
                        (11 µApp)
Signal period:          2.000 µm
Power supply:           5V+-5%
Degree of protection:   IP50 (EN60529)
Operating temperature:  +10/+40 °C
