Heidenhain: Interface Card 337481-01 (IK 220)
Heidenhain: Interface Card 337481-01 (IK 220) for Connecting Encoders to a Bus System


Price : $2,377.00

Price with Selected Options: $2,377.00

Quantity in Stock:

Availability: 10-12vweeks
Order #: IK-220


Options:
Accessory

\: 		368172-01 [Add $128.00]

Accessory2: 		309783-06 [Add $171.00]

Accessory3: 		310199-03 [Add $128.00]

Qty:
Description Specifications and Drawings


Heidenhain: Interface Card 337481-01 (IK 220) for Connecting Encoders to a Bus System

Signal converter for computer-aided measured-value acquisition

The IK 220 signal converter is an evaluation unit for two axes. As a PC counter card, the IK 220 can be inserted directly into a free PCI slot on the computer.

Design

Connectable to the IK 220 are two HEIDENHAIN encoders with sinusoidal current signals (»11 µAPP), sinusoidal voltage signals (»1VPP), or an EnDat 2.1 or SSI interface. External latch inputs/ outputs and the output of encoder signals (»11 µAPP) can be implemented by means of additional slot covers (accessory).

Functions

The IK 220 subdivides the signal periods of the sinusoidal encoder signals up to 4096-fold. The signals are called and stored through either external latch inputs or software.

The IK 220 features an integrated measured value memory . A total of up to 8192 measured values can be stored in the buffer memory and can be output as a single block.

Further processing of the measured values in the PC is performed by operatorcreated programs. To demonstrate the possibilities of the PC counter card, example programs and a software driver are included in delivery.



IK 220

Interface card for connecting encoders to a bus system

  • Number of encoders inputs: 2x
  • Electrical connection: Built-in D-sub connector without housing, 2-row, male, 15-pin
  • Input interface: 11µApp, 1Vpp, EnDat01 or SSI

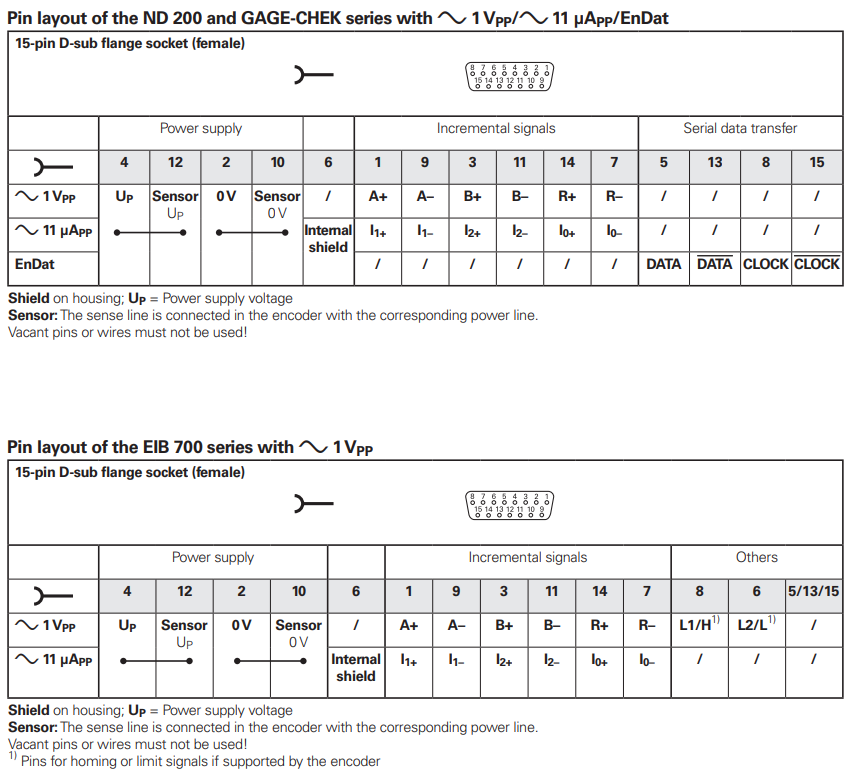

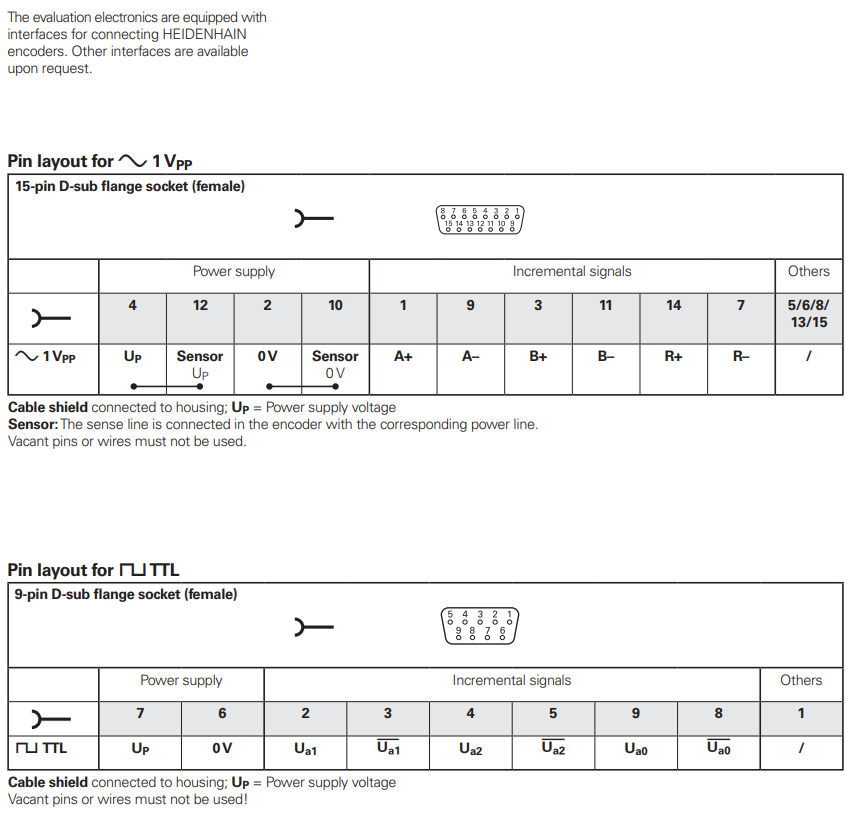

  • Pin configuration: D289201
  • Output interface: PCI-Bus
  • Subdivision factor: 4096 fold
  • Power supply: +12 V / -12 V / 5 V (Bus)
  • Device options: no specified value
  • Software function 1: Fetch: per software, external input or internal timer
  • Software function 2: Adjustment: Online kompensation
  • Software function 3: Documentation, drivers, and examples are available
  • Special characteristics, memory max. 8192 interface electronics: values/channel

Adapter cable for different connector connection (ID: 309783-06)

  • Cable type: PUR Ø 8.0 mm
  • Cable design: 4x2x0.14+4x0.5
  • Cable length: 6.00 m
  • Encoder side: Coupling M23, female, 12-pin
  • Side of subsequent D-sub connector, 2-row, electronic: with locking screws, female, 15-pin

Adapter cable for different connector connection (ID: 368172-01)

  • Cable type: PUR Ø 8.0 mm
  • Cable design: 3x2x0.14+2x1.0
  • Cable length: 1.00 m
  • Encoder side: Coupling M23, female, 9-pin
  • Side of subsequent D-sub connector, 2-row, electronic: with locking screws, female, 15-pin
  • Special characteristics,11µA assignment connecting cable: (6U); internal shield on pin 13

Adapter cable for different connector connection (ID: 310199-03)

  • Cable type: PUR Ø 8.0 mm
  • Cable design: 4x2x0.14+4x0.5
  • Cable length: 3.00 m
  • Encoder side: Connector M23, female, 12-pin

  • Side of subsequent D-sub connector, 2-row, electronic: with locking screws, female, 15-pin


Additional PCB IK 220 (ID: 340253-01) - 20+ weeks lead time
Accessories interface electronics
  • External inputs/outputs: two D-sub connections (9-pin, male)
  • PC slot cover, one noise suppression board, two ribbon cables for connection to 10-pin MICROMATCH connector
