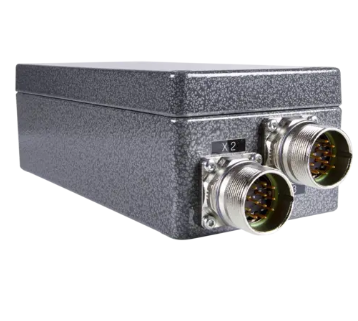

Heidenhain: Interpolation and Digitizing Electronics for Encoders with 1 Vpp signals 743019-11 (IBV 6072)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.

Interpolation and Digitizing Electronics:

Model No.: 743019-11

IBV 6072 (ID: 743019-11)

Interpolation and digitizing electronics for
encoders with 1 Vpp signals
Input signal:           sinusoidal voltage signals
                        (1 Vpp)
Cutoff frequency (-3
dB):                    500.00 kHz
Electrical connection:  Flange socket M23, female,
                        12-pin
Pin configuration:      D294999
Electrical connection 2:Flange socket M23, male,
                        12-pin
Pin configuration 2:    D294999
Output signal:          Square-wave signals, TTL
                        levels with 2-fold
                        interpolation
Reference pulse width:  270 °
Max. scanning frequency:500.00 kHz
Electrical connection 3:Flange socket M23, male,
                        12-pin
Pin configuration 3:    D312730
Output signal 2:        Square-wave signals, TTL
                        levels with 2-fold
                        interpolation
Reference pulse width 2:270 °
Scanning frequency 2:   500.00 kHz
Fault detection signal: for disturbance LOW
Power supply:           5 V (+-5 %)
Degree of protection:   IP65 (EN60529)
Operating temperature:  0/+70 °C
Special characteristics,
IBV/EXE/IDP:            none
