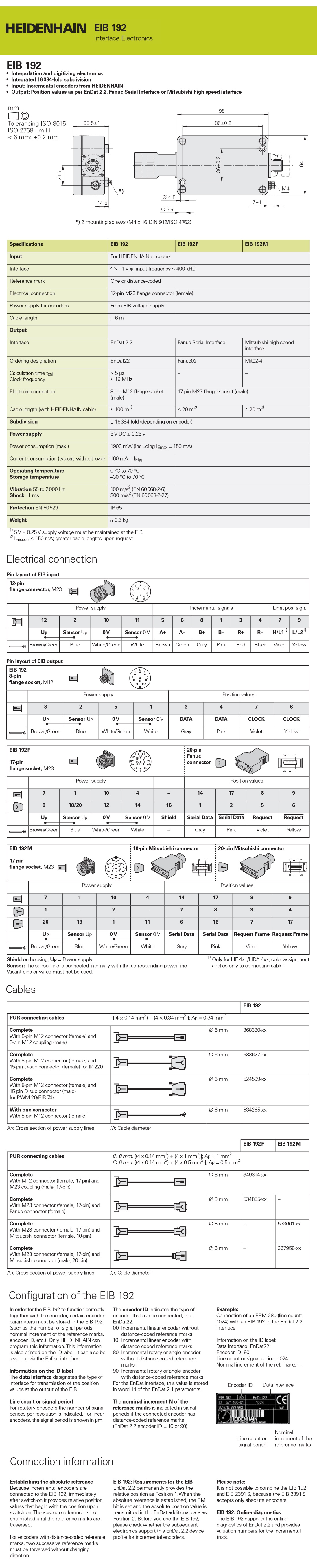

Heidenhain: Interface Electronics (EIB 192)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.

Features:

Model No.: EIB 192, EIB 192 F, EIB 192 M

External interface box with serial output
interface for incremental encoders
Input signal:             sinusoidal voltage
                          signals (1 Vpp)
Online compensation:      H-Correction activated
                          (offset00, offset90,
                          amplitude ratio, phase)
Encoder ID:               Incremental linear
                          encoder without distance
                          coded reference marks
Electrical connection:    Flange socket with
                          coupling ring M23,
                          female, 12-pin
Data interface:           Synchronous serial EnDat
                          2.2 without incremental
                          signals
Electrical connection 2:  Flange socket M12, male,
                          8-pin
Signal period:            0.512 µm
Subdivision factor:       16384 fold
Limit switch:             without
Number of clock pulses for
position value transfer:  38
Power supply:             3.6 V ... 14 V
Protection rating:        IP65 (EN60529)
Special characteristics,  Customer-specific
IBV/EXE/IDP:              version for LIP 2

EIB 192
External interface box with serial output
interface for incremental encoders
Input signal:             sinusoidal voltage
                          signals (1 Vpp)
Online compensation:      H-Correction activated
                          (offset00, offset90,
                          amplitude ratio, phase)
Encoder ID:               Incremental linear
                          encoder without distance
                          coded reference marks
Electrical connection:    Flange socket with
                          coupling ring M23,
                          female, 12-pin
Data interface:           Synchronous serial EnDat
                          2.2 without incremental
                          signals
Electrical connection 2:  Flange socket M12, male,
                          8-pin
Signal period:            2.000 µm
Subdivision factor:       16384 fold
Limit switch:             without
Number of clock pulses for
position value transfer:  36
Power supply:             3.6 V ... 14 V

Protection rating:        IP65 (EN60529)
