Heidenhain: External Interface 1363110-03 (EIB 3011)
Heidenhain: External Interface Signal Converter in Cable Design 1363110-03 (EIB 3011)

Price : $952.00


Availability: 12-14 weeks
Order #: 1363110-03
Qty:

Description Ordering Information Specifications and Drawings

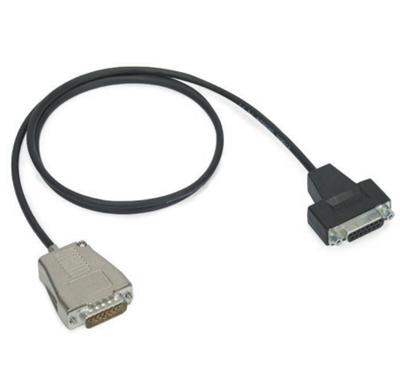

Heidenhain: External Interface Signal Converter in Cable Design 1363110-03 (EIB 3011)

External interface box with serial output interface for incremental encoders

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.


Features:

  • Interpolation and digitizing electronics in D-sub connector housing

  • Integrated 16 384-fold subdivision

  • Input: Incremental encoders from HEIDENHAIN

  • Output: Absolute position values as per EnDat 2.2, Fanuc Serial Interface or Mitsubishi high speed interface


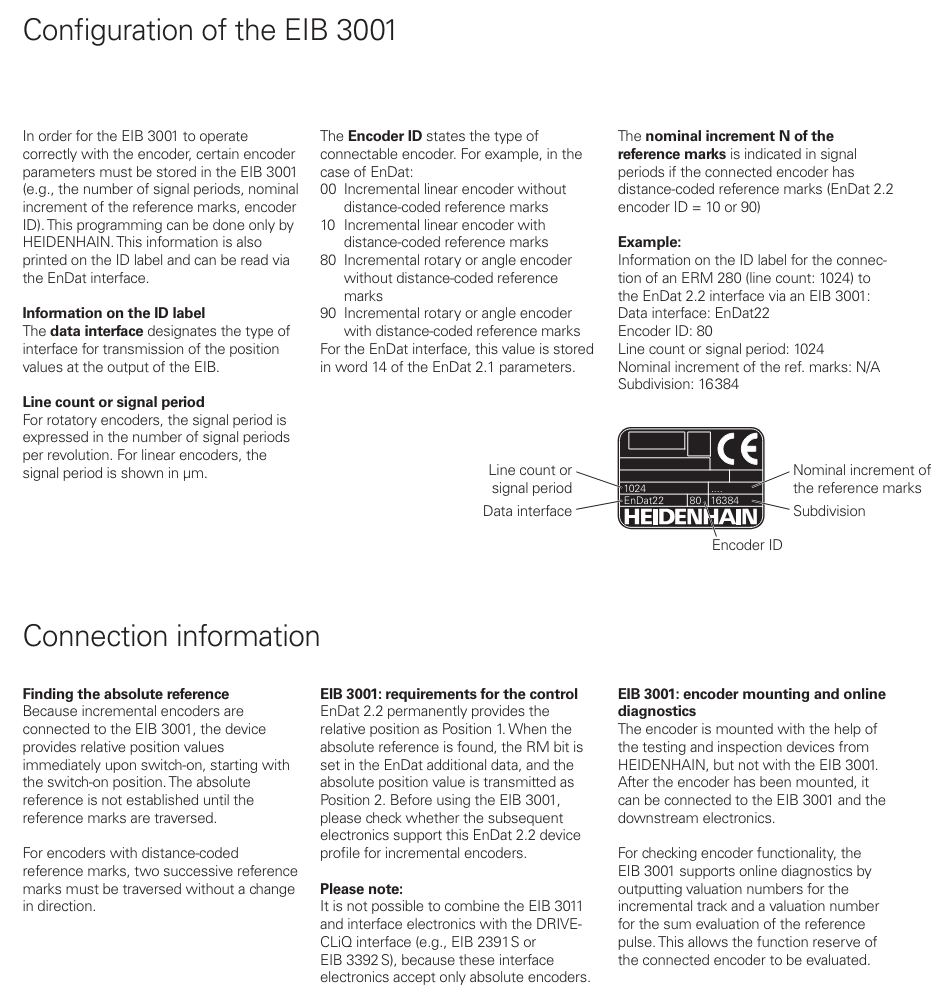

Model No.: EIB 3011 (ID: 1363110-03)

ID1363110-03
Part NameEIB 3011
Description
EIB 3011
External interface box with serial output
interface for incremental encoders
Input signal:             sinusoidal voltage
                          signals (1 Vpp)
Electrical connection:    D-sub connector, 2-row,
                          without locking screws,
                          female, 15-pin
Cable length:             1.00 m
Cable type:               PUR Ø 4.5 mm
Electrical connection 2:  D-sub connector, 2-row,
                          metal housing, design A,
                          with locking screws,
                          with integrated
                          electronics, male,
                          15-pin
Interface:                EnDat 2.2 (EnDat22)
Encoder ID:               Incremental linear
                          encoder without distance
                          coded reference marks
Signal period:            4.000 µm
Subdivision factor:       16384 fold
Limit switch:             Information available on
                          the interface (if
                          supported by encoder)
Number of clock pulses for
position value transfer:  36
Power supply:             3.6 V ... 14 V
