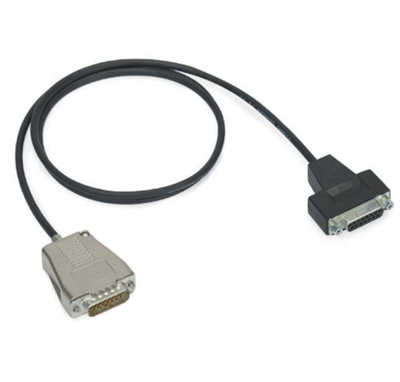

Heidenhain: External Interface Signal Converters in Cable Design 1363112-13 (EIB 3091M)

External interface box with serial output interface for incremental encoders

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.

Features:

Model No.: EIB 3091M (ID: 1363112-13)

EIB 3091M

External interface box with serial output

interface for incremental encoders

Input signal: sinusoidal voltage

signals (1 Vpp)

Electrical connection: D-sub connector, 2-row,

without locking screws,

female, 15-pin

Cable length: 0.13 m

Cable type: PUR Ø 4.5 mm

Electrical connection 2: D-sub connector, 2-row,

metal housing, design A,

with locking screws,

with integrated

electronics, male,

15-pin

Interface: Mitsubishi High Speed

Serial Interface

(Mit03-4)

Encoder ID: Incremental rotary

encoder with one

reference mark (non

binary)

Line count: 1200

Subdivision factor: 4096 fold

Limit switch: Information on the

interface not available

Power supply: 3.6 V ... 14 V
