Heidenhain: Interface Electronics Signal Converters IBV 102 (ID: 536422-20)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.

Interpolation and digitizing electronics:

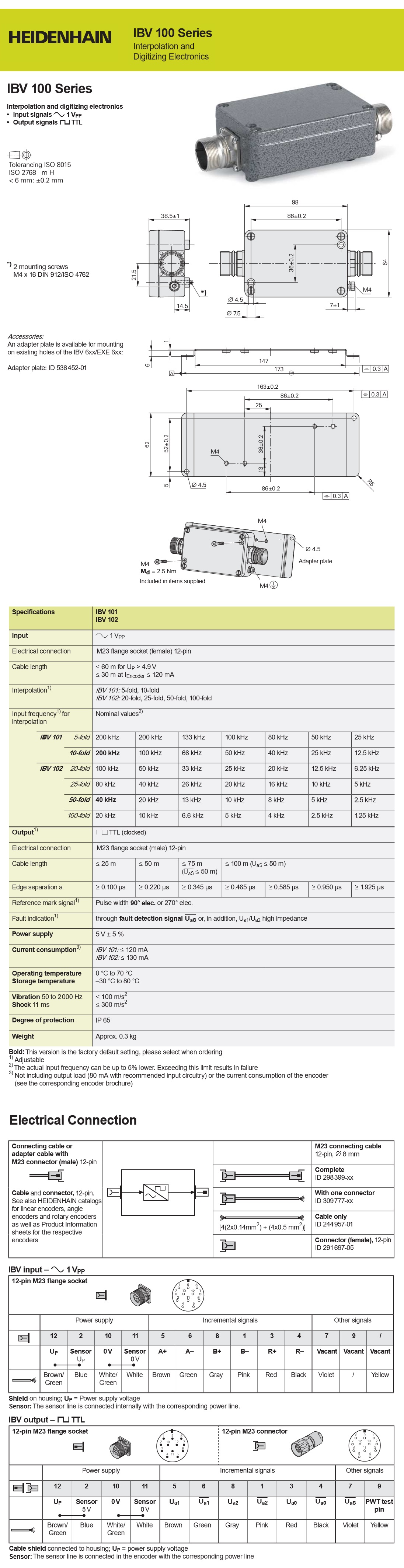

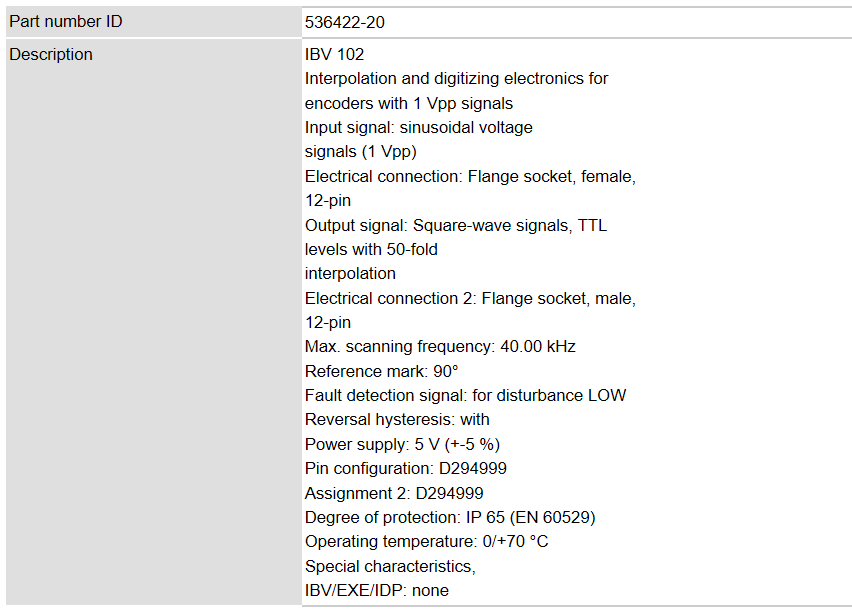

IBV 102 ( ID: 536422-20 )
TTLx50 40.00 RV OT MI 27B12 27S012
