Heidenhain: RVM4000 comparator encoder RVM 4180 ID:1348762-01

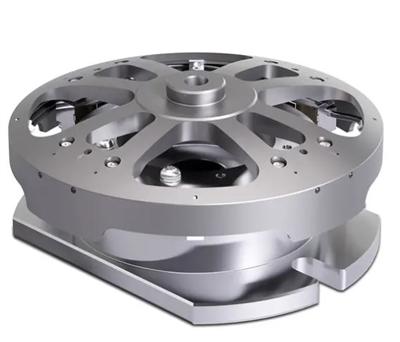

Heidenhain: RVM 4180 ID:1348762-01

Heidenhain
833-9MOTION inquiry@e-motionsupply.com.
Call or email for Rent


Availability: Current Rent Only
Order #: 1348762-01
.

Description Specifications and Drawings

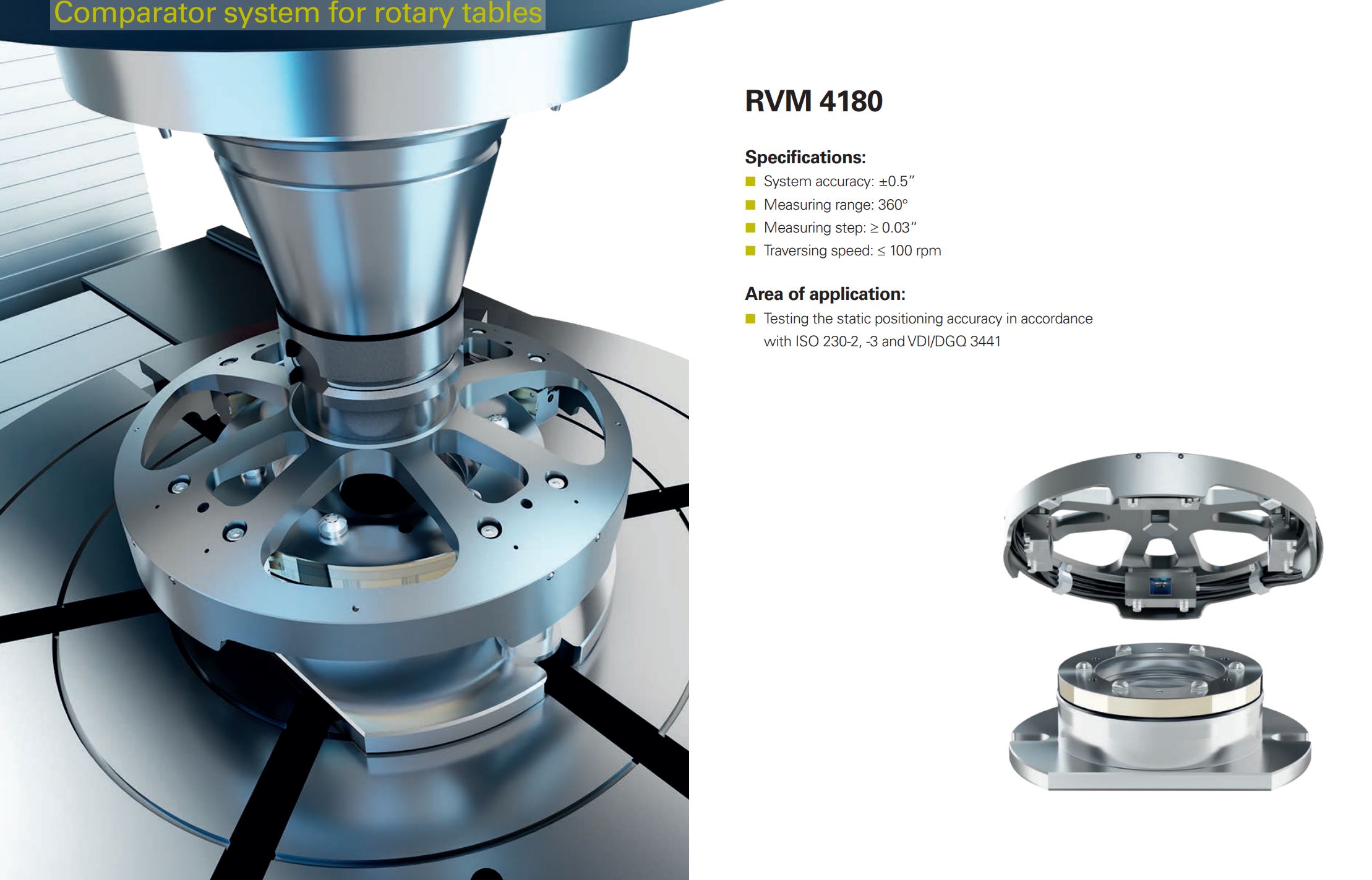

RVM 4000 comparator encoder

Encoders for static and dynamic rotary axis inspection

  • Acceptance testing and inspection of machine tools and rotary tables (as per ISO 230-2, ISO 230-3 and VDI/DGQ 3441)
  • Two variants: a high-accuracy version for rotary table calibration and a compact version for swivel-axis calibration
  • Easy handling inside the machine tool
  • Direct inspection of static and dynamic behavior
  • Non-contact, wear-free scanning
  • Measurement of any angular interval and dynamic motion
  • Optimal results with the EIB 741 signal converter and the ACCOM 4.0 software for PCs
  • Currently available for rent only
