Heidenhain: Rotary Encoder with Integral Bearing ID# 768295-03

Measuring angles with rotary encoders

Mounting variants

In rotary encoders with integral bearing and stator coupling, the graduated disk of the encoder is connected directly to the shaft to be measured. The scanning unit is guided on the shaft via ball bearings, supported by the stator coupling. During angular acceleration of the shaft, the stator coupling must absorb only that torque resulting from friction in the bearing, thereby minimizing both static and dynamic measuring error. Moreover, the coupling mounted on the stator compensates axial motion of the measured shaft. Other benefits of the stator coupling are:

Rotary encoders with integral bearing that are conceived for separate shaft coupling are designed with a solid shaft. The recommended coupling to the measured shaft compensates radial and axial tolerances. Angle encoders for separate shaft couplings permit higher shaft speeds.

Rotary encoders without integral bearing operate without friction. The two components - the scanning head and the scale disk, drum, or tape - are adjusted to each other during assembly. The benefits are:

Rotary encoders with integral bearing

HEIDENHAIN ERN, ECN and EQN rotary encoders with integral bearing and mounted stator coupling are characterized by simple mounting and short overall length. Possible applications range from simple measuring tasks to position and speed control on servo drives. The hollow shaft of these encoders is slid directly onto and fastened to the shaft to be measured.

ROD, ROC and ROQ rotary encoders from HEIDENHAIN have their own bearings and are sealed. They are robust and compact. These encoders are coupled by the rotor to the measured shaft through a separate coupling that compensates axial motion and misalignment between the encoder shaft and measured shaft.

ExN 1300 Features:

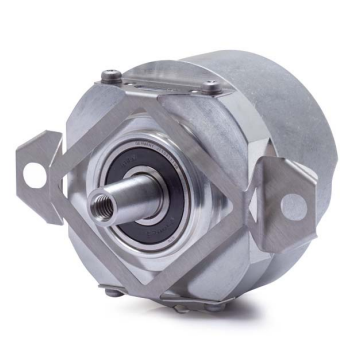

ECN 1313 (ID: 768295-03)

Rotary encoder with integral bearing

Positions per revolution: 8192

Data interface: EnDat01

Output code: Binary

Line count: 2048

Output signal: ~1Vpp

Cutoff frequency (-3 dB): 400.00 kHz

Power supply: 3.6 V ... 14 V

Coupling version: Expanding ring coupling

for 65mm mating diameter

Shaft: Tapered shaft 1 to 10,

functional diameter 9.25

mm, back-off thread M10

and M6

Protection rating: IP40 (EN60529)

Operating temperature: -40/+115 °C

Electrical connection: Plug connector,

straight, double-row,

12-pin, with locking

mechanism and walls

Pin configuration: D323746

Connecting direction: Cable outlet for axial

and radial use

Included part: Mounting kit with screws

(M5x50 and M5x47) and

warning information
